Features
AIE-PX11/12/21/22
- Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
- 2/4 x IEEE 802.3af GbE PSE ports
- 1 x GbE port, 1 x 10GbE port
- 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot
- Wide input voltage range from 9 to 36 VDC
- Operating Temperature -25°C ~ +55°C
- Fanless Design
8 x AI performance enables AI inference with low latency
NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency.
Comprehensive M.2 expansion, PSE and LAN ports
AIE-PX11/12/21/22 are fanless systems with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.
Wide input power and fanless design for smart city and smart agriculture
To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-PX11/12/21/22 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 9 to 36 VDC, enabling flexible power supply options.

*AIE-PX11/12/21/22 are preliminary products, so the specifications are subject to change without prior notice.
Specifications
Model Number
AIE-PX22
Module Compatibility
NVIDIA Jetson AGX Orin 64GB
AI Performance
275 TOPS
GPU
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory
64GB 256-bit LPDDR5 204.8 GB/s
Storage
64GB eMMC 5.1
Display
1 x HDMI 2.0 Type A
TPM
TPM v2.0 (optional)

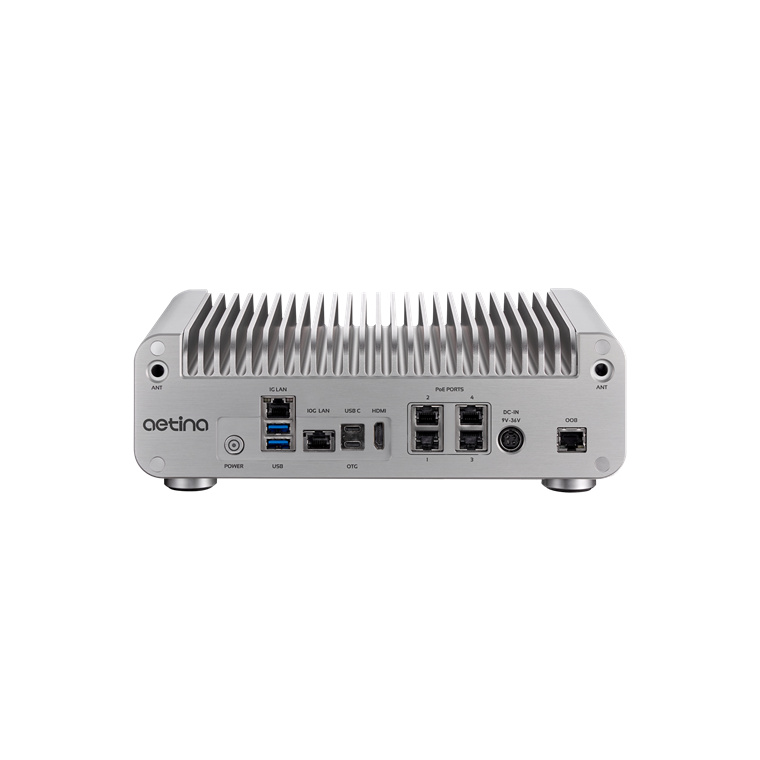

LAN
1 x RJ-45 GbE, 1 x RJ-45 10GbE
PoE Interface
4 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
*PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W
USB
2 x USB 3.2 Gen1 Type A, 1 x USB 2.0 (DB-15), 1 x OTG Type-C, 1 x USB 3.2 Gen2 Type-C

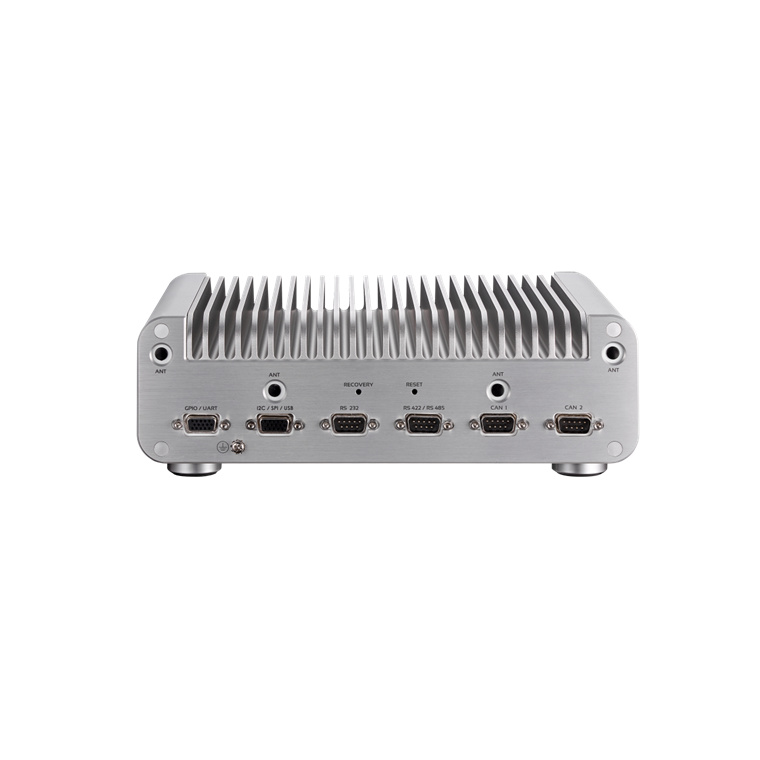

I/O Interfaces
2 x I²C
1 x SP
5 x GPIO
2 x UART
1 x RS-232
1 x RS-422/485 (2-in-1)
2 x CAN 2.0b (isolation; support CAN FD)
1 x microSIM Card Slot
1 x OOB (optional)
Expansion
1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2280 (supports NVMe; PCIe x2 Gen3)
1 x microSD Card Slot
MISC. Function
1 x Power / 1 x Recovery / 1 x Reset Button
Power Input/Connector
DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector
Power Consumption
Idle: 8 W
Full Loading: 130* W
*For more test condition information, please refer to user manual
Dimension (WxDxH)
270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)
Mounting
Wall Mount (optional) / Din Rail (optional)
Net Weight
4.3 kg (9.48 lb)
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow
Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
Software Support
Linux (Support Jetpack 5.0 above)
Certification
CE / FCC Class A / UKCA
