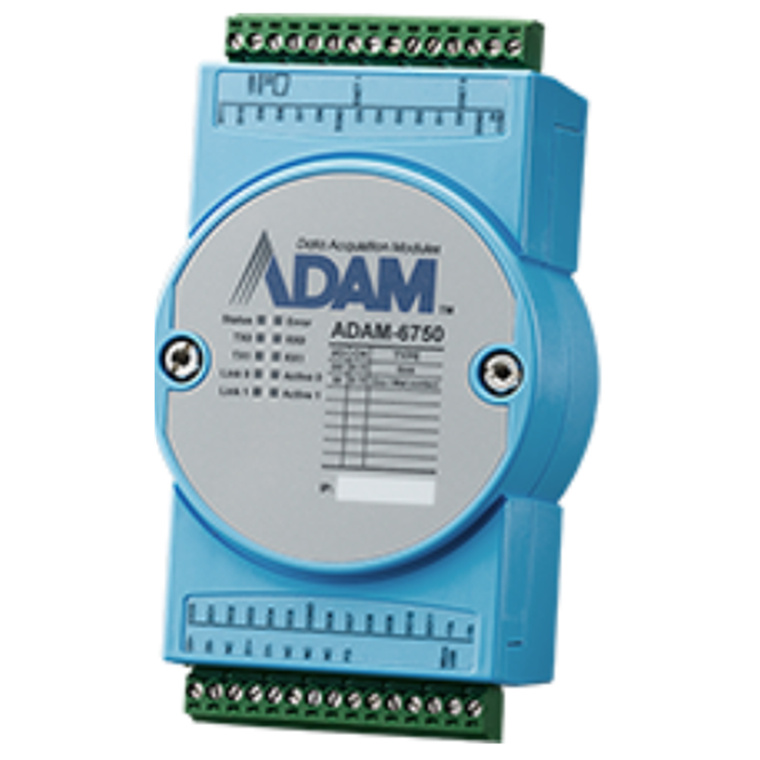

Advantech ADAM-6750-A 12DI/12DO Intelligent I/O Gateway
Advantech ADAM-6750-A 12DI/12DO Intelligent I/O Gateway
- Brand: Advantech
- MPN: ADAM-6750-A
- Part #: IPCAVH010029
- UPC:
- Brand: Advantech
- MPN: ADAM-6750-A
- Part #: IPCAVH010029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech ADAM-6750-A 12DI/12DO Intelligent I/O Gateway
- Brand: Advantech
- MPN: ADAM-6750-A
- Part #: IPCAVH010029

Product URL: https://www.pbtech.co.nz/product/IPCAVH010029/Advantech-ADAM-6750-A-12DI12DO-Intelligent-IO-Gate
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
ADAM-6700 is the edge compact intelligent gateway offers an integrated solution in the form of a Linux-based gateway capable of performing multiple tasks at the edge. Unlike many of its competitors, the ADAM-6700 is equipped with a range of I/O for comprehensive data acquisition functionality.
- Linux Open Platform
- 12ch digital input(counter)/12ch digital output(pulse output)
- Programming: linux C API, Node-RED (graphic programming environment)
- Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard
- Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
Specifications
Channels
12
Max. Input Frequency
3 kHz
Isolation Voltage
2,500 VDC
Operating Temperature
-40~70 °C (-40~158 °F)
No. of Ports
2
Speed
10/100 Mbps
Connectors
1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
Programming Language
Node-RED, Liunx C
I/O
2 x RS-485, 1 x Micro USB, 1 x USB 2.0
OS Support
Linux
Storage
1 x micro SD Slot
Channels
12
Input Voltage
Dry Contact
Logic level 1: close to GND
Logic level 0: open
Wet Contact
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC
Channels
12
Output Type
Sink
Output Voltage
0~30 VDC
Sink Current
100 mA max./channel
Input Voltage
10~30 VDC
