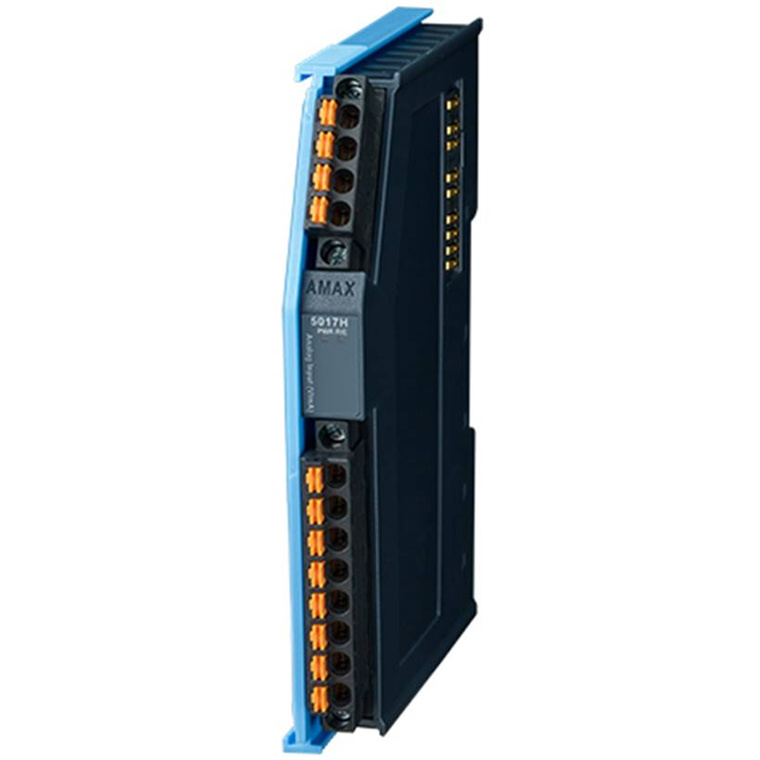

Advantech AMAX-5017H-A 4-ch High Speed Analog Input EtherCAT Slice IO Module
Advantech AMAX-5017H-A 4-ch High Speed Analog Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5017H-A
- Part #: IPCAVH011010
- UPC:
- Brand: Advantech
- MPN: AMAX-5017H-A
- Part #: IPCAVH011010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AMAX-5017H-A 4-ch High Speed Analog Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5017H-A
- Part #: IPCAVH011010

Product URL: https://www.pbtech.co.nz/product/IPCAVH011010/Advantech-AMAX-5017H-A-4-ch-High-Speed-Analog-Inpu
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
4-ch High Speed Analog Input EtherCAT Slice IO Module
- Channels : 4 (Differential)
- Input Type : V, mA
- Voltage Range : ±10 V, 0 ~ 10 V, 0 ~ 20 mA
- Input Impedance : 800 kO, for voltage input, 500 O, for current input
- Resolution : 16-bit with ±0.1% for voltage input, 16-bit ±0.2% for current input
- FSR accuracy : @25°C
- Sample Rate : 10k sample/s (per channel)
Specifications
Analog Input
Channels
4 differential
Input Range
±10 V, 0 ~ 10 V, 0 ~ 20 mA
lnput Type
V, mV
Resolution(Bits)
16-bit with ±0.1% FSR accuracy @25°C for voltage input,
16-bit with ±0.2% FSR accuracy @25°C for current input
Sampling Rates(S/s)
10k S/s (per channel)
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR
Power Consumption
2.5 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
87 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
