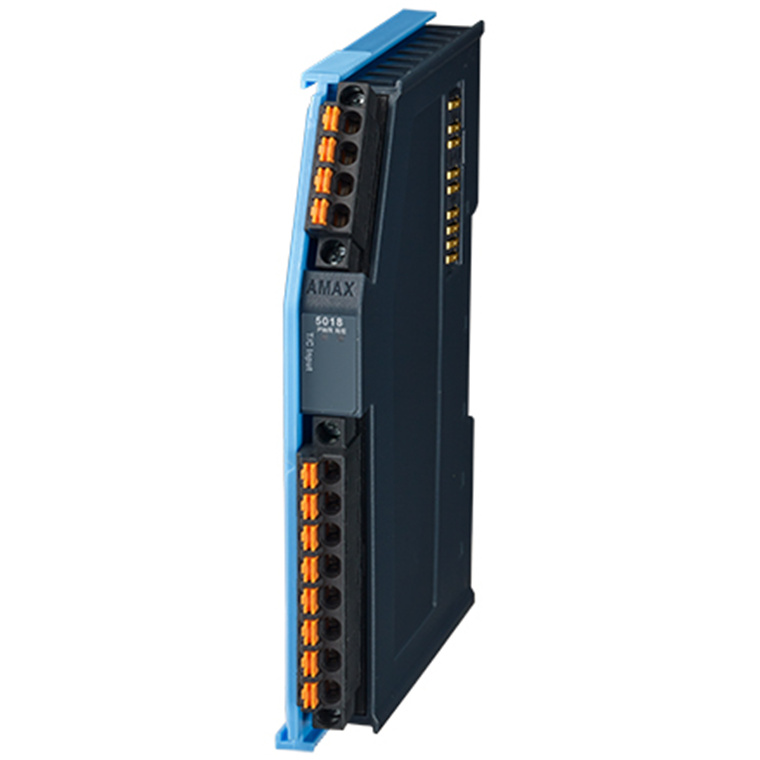

Advantech AMAX-5018-A 6-ch Thermocouple Input EtherCAT Slice IO Module
Advantech AMAX-5018-A 6-ch Thermocouple Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5018-A
- Part #: IPCAVH011012
- UPC:
- Brand: Advantech
- MPN: AMAX-5018-A
- Part #: IPCAVH011012
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AMAX-5018-A 6-ch Thermocouple Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5018-A
- Part #: IPCAVH011012

Product URL: https://www.pbtech.co.nz/product/IPCAVH011012/Advantech-AMAX-5018-A-6-ch-Thermocouple-Input-Ethe
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
6-ch Thermocouple Input EtherCAT Slice IO Module
- Channels: 6 differential
- Input Type: V, mV, Thermocouple
- Input Impedance: >2MO
- Voltage Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
- Resolution: 16-bit
- FSR accuracy: 16-bit with ±0.1% @25°C
- Sample Rage: 100 Sample/Second (per channel)
Specifications
Thermocouple Input
Channels
6
Temperature Range
Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C)
Voltage Range
±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Sample Range
100 S/s (per channel)
Input Impedance
> 2 MO
Analog Input
Resolution(Bits)
16-bit with ±0.1% FSR accuracy @25°C
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR
Power Consumption
2 W@ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
87 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
