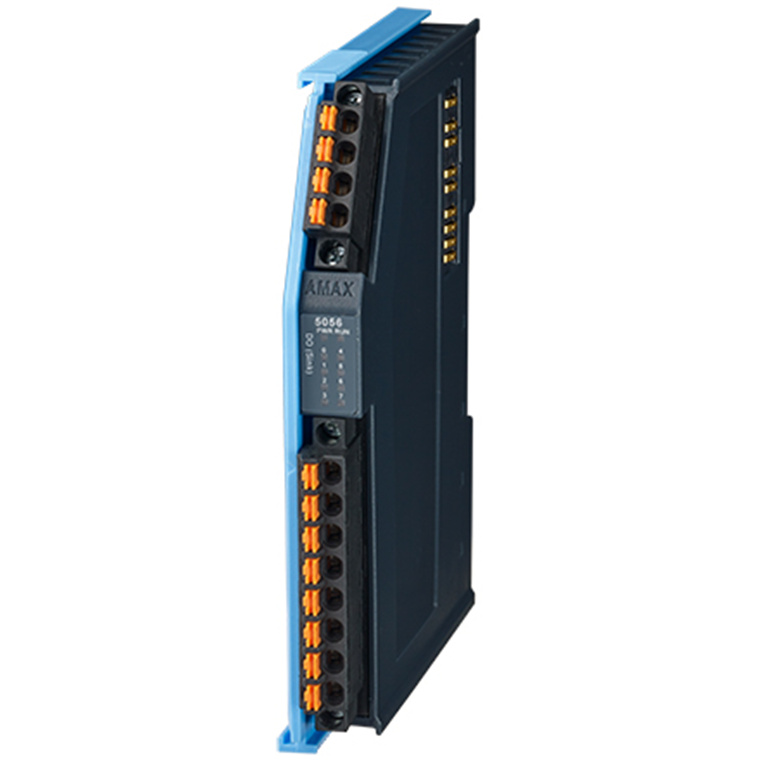

Advantech AMAX-5056-A 8-ch Sink-type Digital Output EtherCAT Slice IO Module
Advantech AMAX-5056-A 8-ch Sink-type Digital Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5056-A
- Part #: IPCAVH011017
- UPC:
- Brand: Advantech
- MPN: AMAX-5056-A
- Part #: IPCAVH011017
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AMAX-5056-A 8-ch Sink-type Digital Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5056-A
- Part #: IPCAVH011017

Product URL: https://www.pbtech.co.nz/product/IPCAVH011017/Advantech-AMAX-5056-A-8-ch-Sink-type-Digital-Outpu
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
8-ch Sink-type Digital Output EtherCAT Slice IO Module
- Channels: 8 (Sink Type)
- Voltage Rating: 10~30VDC
- Rated Current Output: 0.3A per channel at signal "1"
- Leakage Current: 25 µA per channel at signal "0"
- Output Delay: From logic level 0 to 1: 10µs; From logic level 1 to 0: 100µs
Specifications
Digital Output
Output Type
Sink
Channels
8
Output Delay
From logic level 0 to 1:
10 us
From logic level 1 to 0:
100 us
Rated Output Current
Logic level 1: 0.3 A per channel
Logic level 0: 25 uA per channel (leakage current)
Voltage Rating
10~30 VDC
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, DO status
Power Consumption
2 W@ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
80 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
