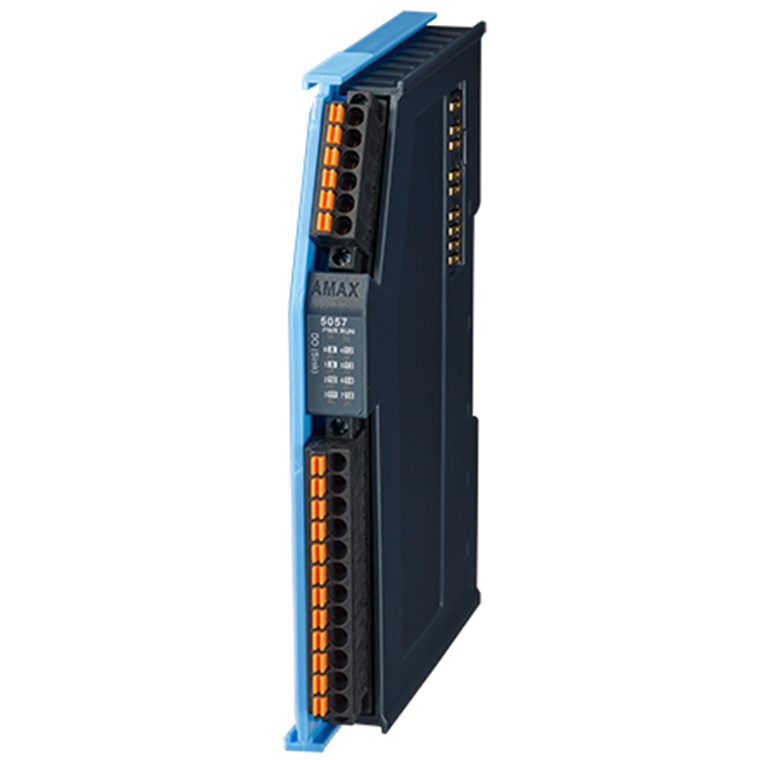

Advantech AMAX-5057SO-A2 16-ch Source-type Digital Output EtherCAT Slice IO Module
Advantech AMAX-5057SO-A2 16-ch Source-type Digital Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5057SO-A2
- Part #: IPCAVH011021
- UPC:
- Brand: Advantech
- MPN: AMAX-5057SO-A2
- Part #: IPCAVH011021
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AMAX-5057SO-A2 16-ch Source-type Digital Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5057SO-A2
- Part #: IPCAVH011021

Product URL: https://www.pbtech.co.nz/product/IPCAVH011021/Advantech-AMAX-5057SO-A2-16-ch-Source-type-Digital
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
16-ch Source-type Digital Output EtherCAT Slice IO Module
- Channels:16 (Source Type)
- Voltage Rating:10~30VDC
- Rated Current Output:0.5A per channel atsignal "1"
- Leakage Current:10 µA per channel atsignal "0"
- Output Delay:From logic level 0 to 1:150µs; From logic level 1 to 0: 2ms
Specifications
Digital Output
Output Type
Source
Channels
16
Output Delay
From logic level 0 to 1:
150 us
From logic level 1 to 0:
2 ms
Rated Output Current
Logic level 1: 0.5 A per channel
Logic level 0: 10 uA per channel (leakage current)
Voltage Rating
10~30 VDC
General
Connectors
1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, DO status
Power Consumption
2 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
81 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
