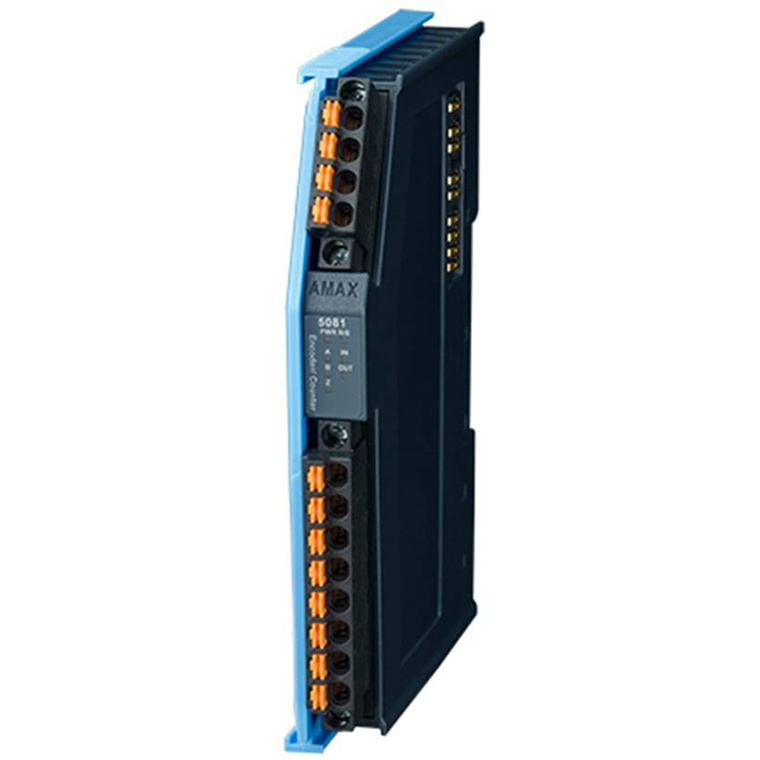

Advantech AMAX-5081-A 1-ch TTL/RS-422 Incremental Encoder/Counter EtherCAT Slice IO Module
Advantech AMAX-5081-A 1-ch TTL/RS-422 Incremental Encoder/Counter EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5081-A
- Part #: IPCAVH011024
- UPC:
- Brand: Advantech
- MPN: AMAX-5081-A
- Part #: IPCAVH011024
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech AMAX-5081-A 1-ch TTL/RS-422 Incremental Encoder/Counter EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5081-A
- Part #: IPCAVH011024

Product URL: https://www.pbtech.co.nz/product/IPCAVH011024/Advantech-AMAX-5081-A-1-ch-TTLRS-422-Incremental-E
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
1-ch TTL/RS-422 Incremental Encoder/Counter EtherCAT Slice IO Module
- Overflow/underflow detection
- Latch counter value
- Reset counter value
- Set counter value
- Input filter
- Position compare output
- Reversion of A/B phase Input
- Frequency measurement (Pulse Input)
Specifications
Counter/Encoder Input
Encoder Type
Incremental Encoder
Channels
1
Counting Range
32-bit
Max. Input Frequency
10 MHz
Mode
Counter (up/down, bi-direction, up, A/B Phase),
Frequency
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, A+, A-, B+, B-, Z+, Z-, L+, L-
Power Consumption
3 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
92 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
