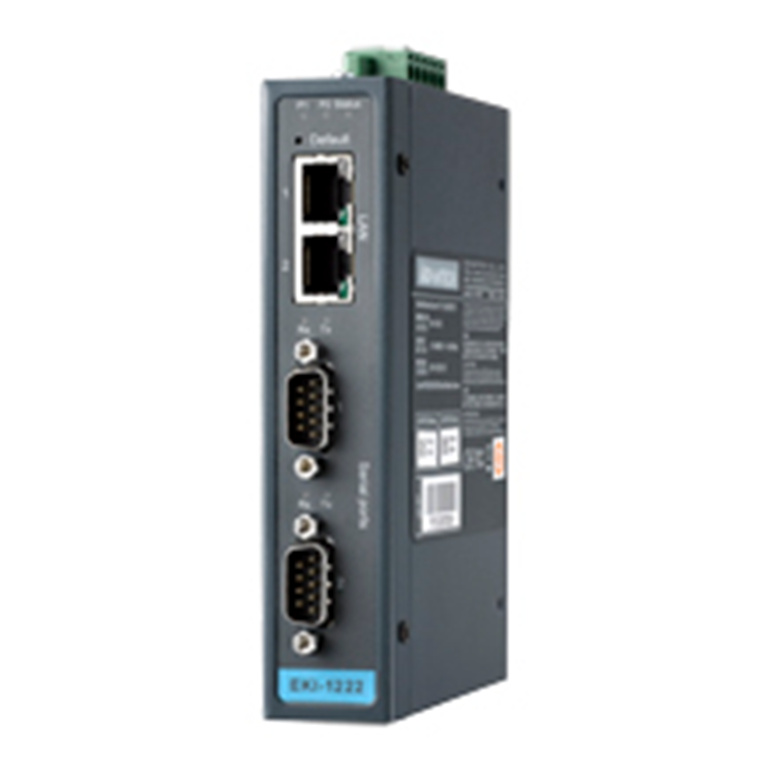

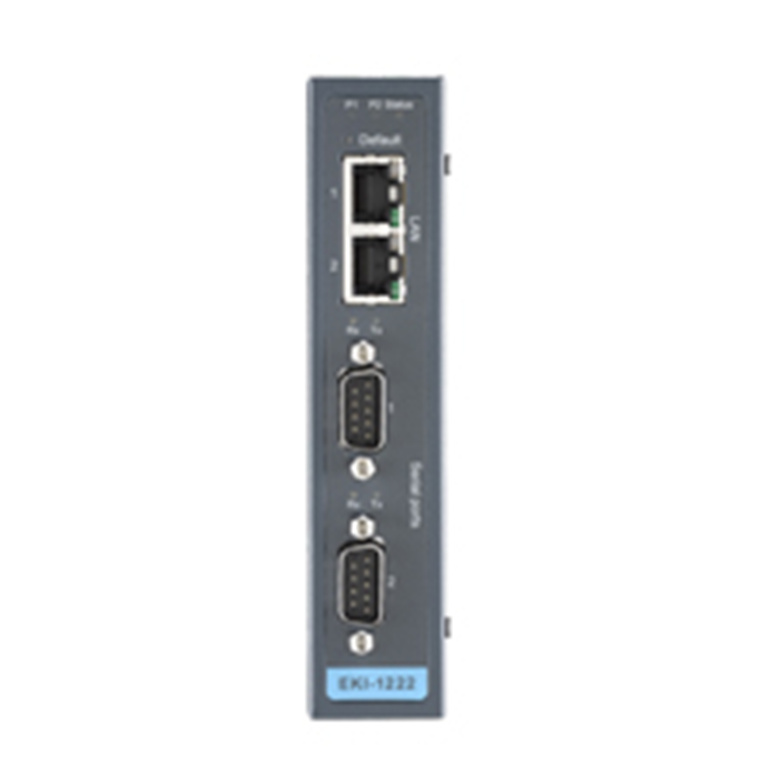

Advantech EKI-1222-CE 2-Port Modbus Gateway
Out of stock
Advantech EKI-1222-CE 2-Port Modbus Gateway
- Brand: Advantech
- MPN: EKI-1222-CE
- Part #: IPCAVH040002
- UPC:
- Brand: Advantech
- MPN: EKI-1222-CE
- Part #: IPCAVH040002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech EKI-1222-CE 2-Port Modbus Gateway
- Brand: Advantech
- MPN: EKI-1222-CE
- Part #: IPCAVH040002
Product URL: https://www.pbtech.co.nz/product/IPCAVH040002/Advantech-EKI-1222-CE-2-Port-Modbus-Gateway
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Supports up to 921.6 kbps, and any baud rate setting
- support up to 16 connections on each serial port under Modbus Master mode and 32 sessions under Modbus Slave mode.
- Software selectable RS-232/422/485 communication
- Mounts on DIN-rail and Wall mount
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
Specifications
Certification
EMC
CE, FCC
EMI
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall
IEC 60068-2-32
Safety
IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Environment
Humidity (Operating Range)
5 ~ 95% RH
Temperature (Operating Range)
-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)
-20 ~ 80°C (-4 ~ 176°F) x
Ethernet Communication
Ethernet Standard
IEEE 802.3 , 802.3ab , 802.3u
RJ-45 Port Connector Type !
RJ-45
RJ-45 Port Number
2
RJ-45 Transmission Speed
10/100 Mbps x
Mechanism
Dimensions (W x H x D)
36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.)
Enclosure (Metal)
Metal with solid mounting hardware
IP Rating
IP30
Mounting(DIN-rail)
Yes
Mounting(Wall)
Yes
Weight
0.48 kg
Power
Power Consumption
3.2W
Power Operating Current
0.7A @ 24 V
Power Input (DC)
12 ~ 48 VDC, redundant dual inputs
Redundant Dual Inputs
Yes
Serial Communication
RS-232
Yes
RS-422
Yes
RS-485
Yes
Serial Port Connector Type
DB9 male
Serial Port Number
2
Protection
Reverse Polarity
Present
Software (SW)
Baud Rate
50 ~ 921.6 Kbps
Configuration
Windows utility, Web Browser
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode
Modbus RTU Master/Slave mode;Modbus ASCII Master/Slave mode
Protocol Support
Modbus TCP
Yes
Modbus RTU
Yes
Modbus ASCII
Yes
Ethernet
Yes
