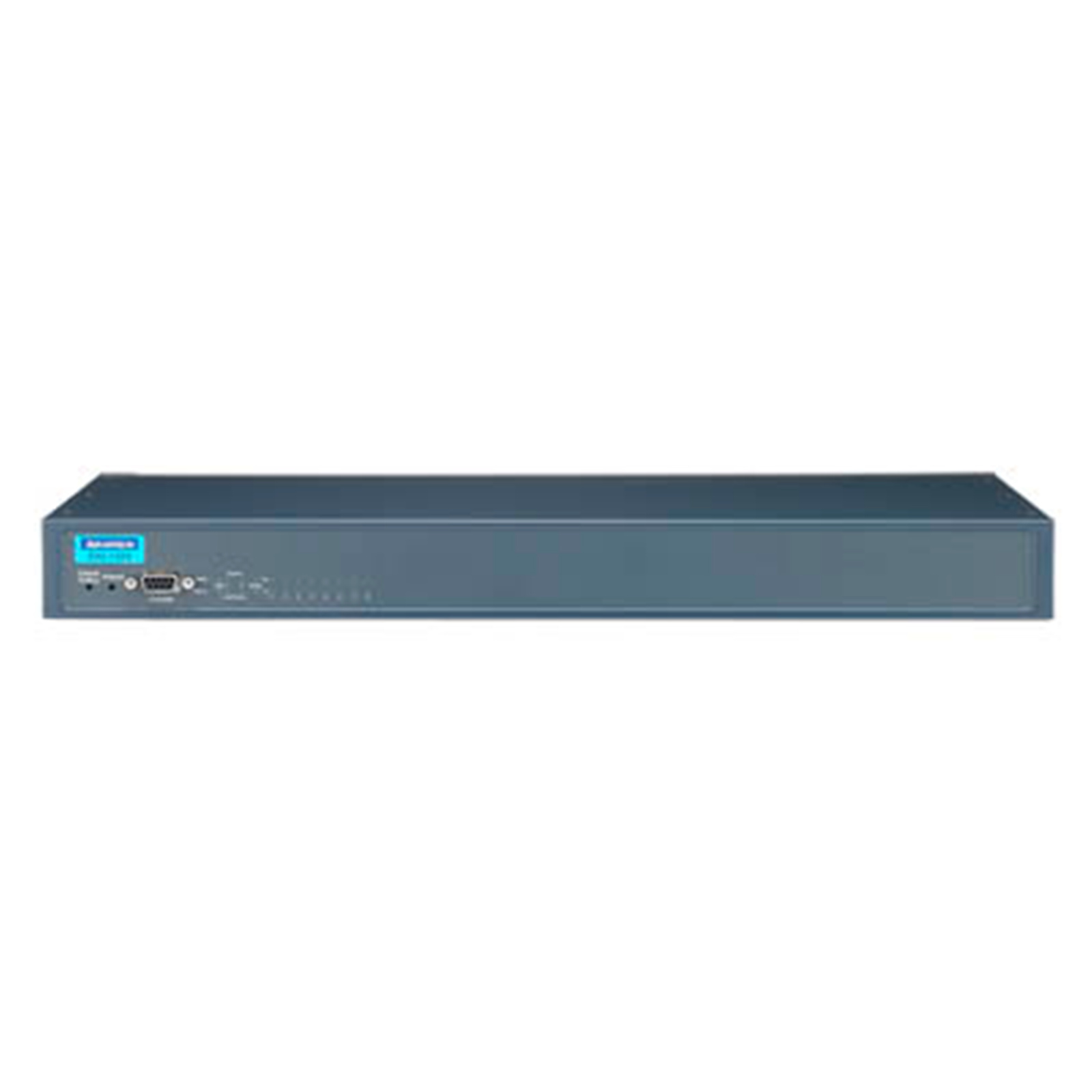

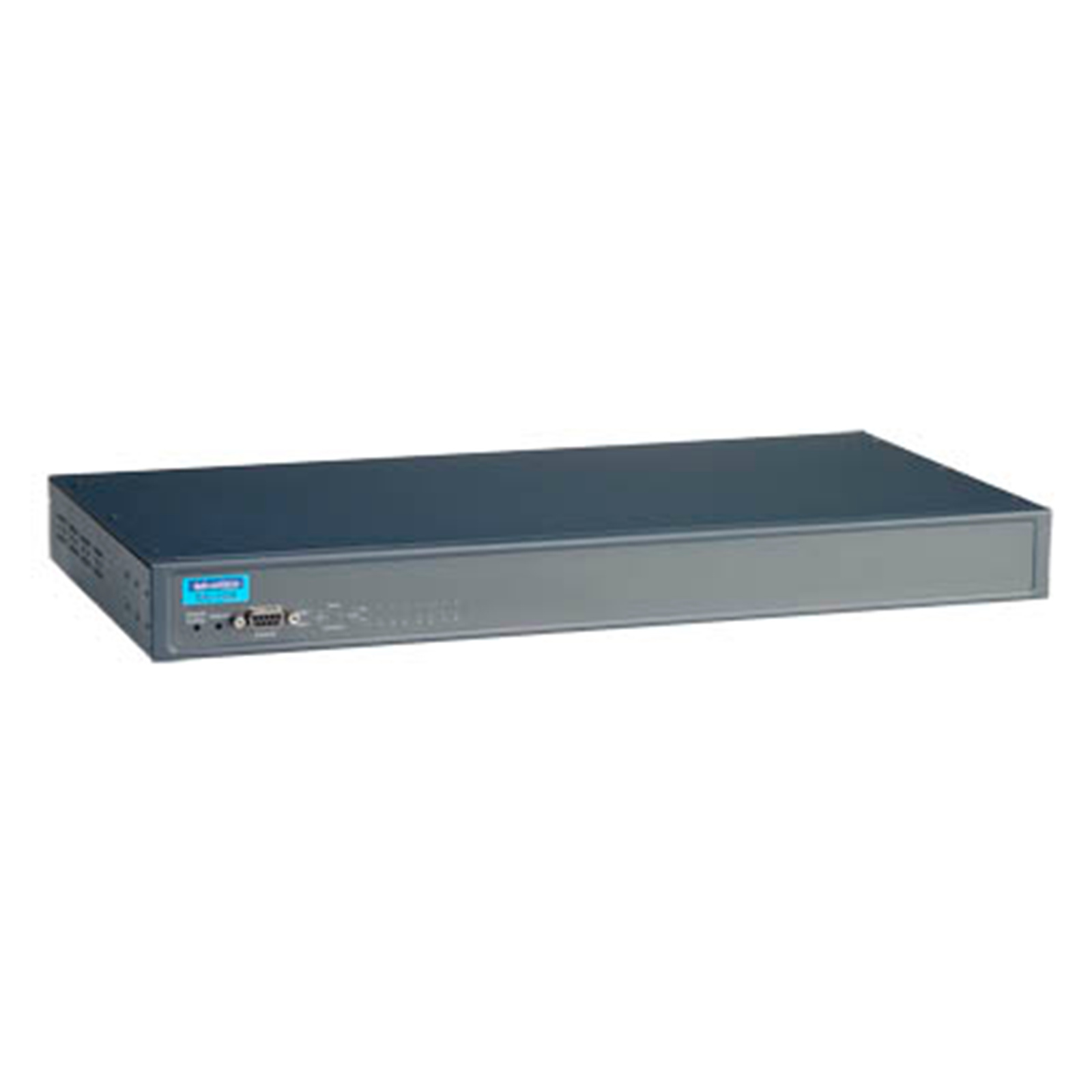

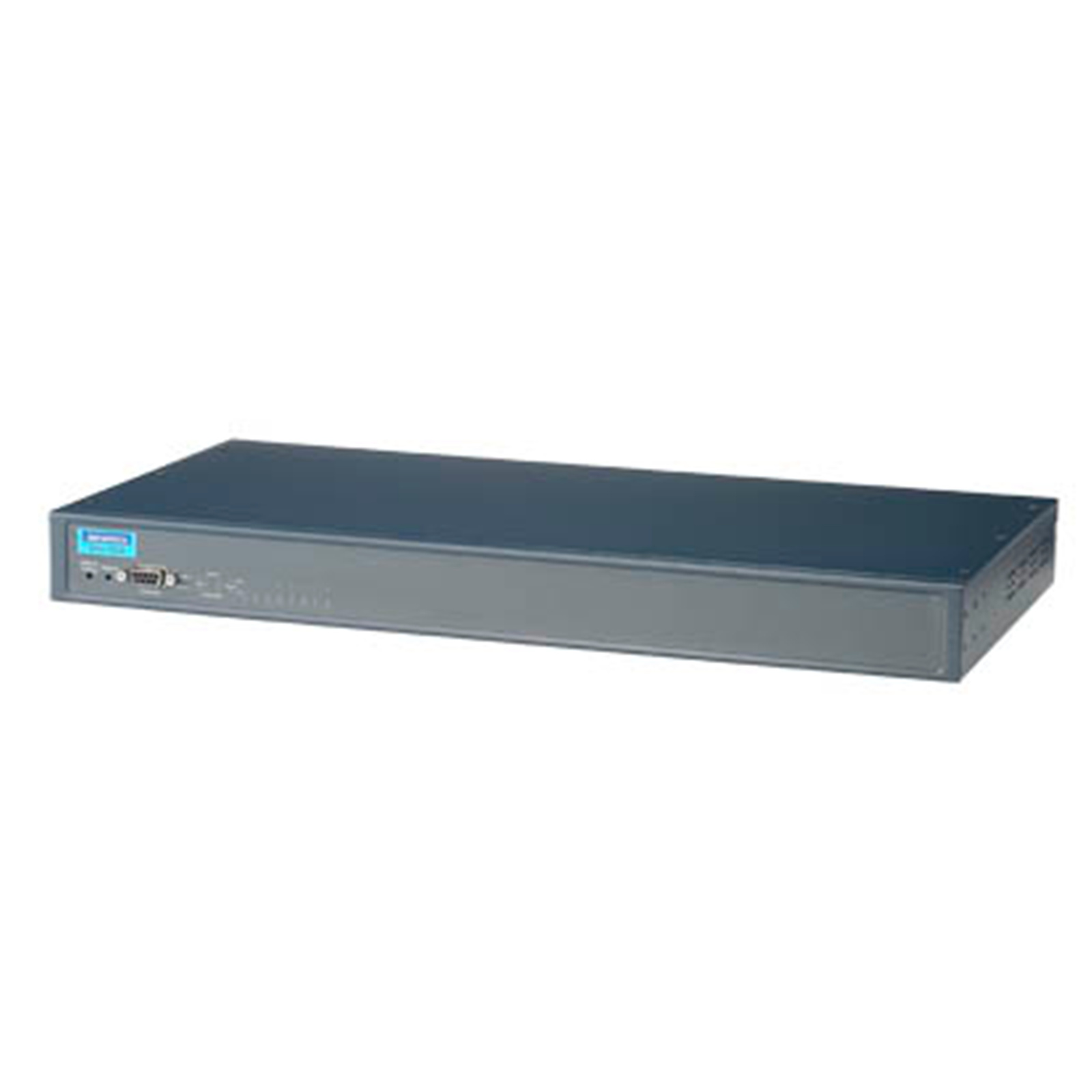

Advantech EKI-1528-CE 8-Port Serial Device Server, AC Input, DB9, Rackmount
Out of stock
Advantech EKI-1528-CE 8-Port Serial Device Server, AC Input, DB9, Rackmount
- Brand: Advantech
- MPN: EKI-1528-CE
- Part #: IPCAVH040010
- UPC:
- Brand: Advantech
- MPN: EKI-1528-CE
- Part #: IPCAVH040010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-1528-CE 8-Port Serial Device Server, AC Input, DB9, Rackmount
- Brand: Advantech
- MPN: EKI-1528-CE
- Part #: IPCAVH040010

Product URL: https://www.pbtech.co.nz/product/IPCAVH040010/Advantech-EKI-1528-CE-8-Port-Serial-Device-Server
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
- Built-in 15 KV ESD protection for all serial signals
- 8-port RS-232/422/485 serial communication
- SNMP MIB-II for network management
- Built-in buzzer for easy location
- Standard 1U rackmount size
- Rear wiring
Specifications
Certification
EMC
CE, FCC
EMI
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, UL 62368
Vibration
IEC 60068-2-6
Ethernet Communication
RJ-45 Port Connector Type !
RJ-45
Ethernet Standard
IEEE 802.3, 802.3u, 802.3ab
RJ-45 Port Number
2
RJ-45 Transmission Speed
10/100 Mbps x
Serial Communication
Serial Port Connector Type
DB9
Serial Port Number
8
RS-232
Yes
RS-422
Yes
RS-485
Yes
Baud Rate
50 ~ 921.6 Kbps
Serial Transmission Speed
50 ~ 921.6 Kbps
Environment
Humidity (Operating Range)
10 ~ 95% RH
Temperature (Min. Operating)
-10°C (14°F) x
Temperature (Max. Operating)
60°C (140°F)x
Temperature (Operating Range)
-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)
-20 ~ 80°C (-4 ~ 176°F) x
Mechanism
Dimensions (W x H x D)
438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
IP Rating
IP30
Weight
2.9 kg
Power
Power Consumption
5.6W
Power Input (AC)
100 ~ 240 VAC x
Power Operating Current
0.3A @ 110 VAC ;
0.2A @ 220 VAC
Protection
Reverse Polarity
Present
Software (SW)
Configuration
Windows utility, Telnet console, Web Browser
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode
Virtual COM, TCP/UDP server TCP/UDP client
