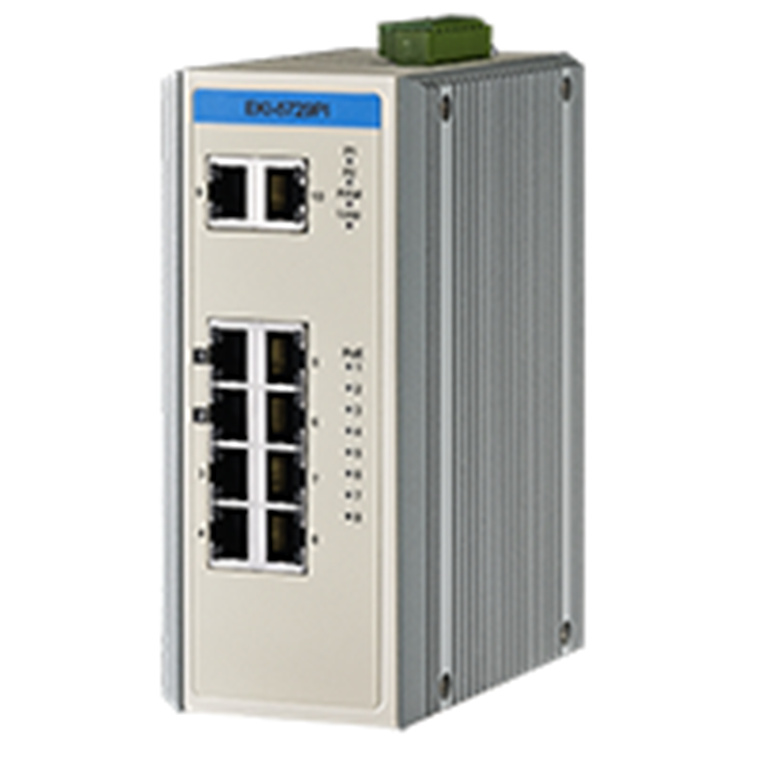

Advantech EKI-5729PI-AE 10port Gigabit Unmanaged Ethernet Switch with 8 PoE+ port,E-Mark,-40 to 75°C

PB Tech price
PB Tech price
$ 997 .50
 +GST
$ 1,147 .12
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-5729PI-AE 10port Gigabit Unmanaged Ethernet Switch with 8 PoE+ port,E-Mark,-40 to 75°C

  • Brand: Advantech
  • MPN: EKI-5729PI-AE
  • Part #: IPCAVH040017
  • UPC:
PB Tech price
$ 997 .50 $ 1,147 .12
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

The EKI-5729P and EKI-5729PI switches support PoE on Ports 1 ~ 8. These switches are classified as power source equipment and are the world's first convergence switches for process control and IT networking management. The series use Modbus/TCP to communicate with SCADA software and SNMP to communicate with NMS simultaneously, thereby allowing full read control over devices for control engineers or IT personnel. The devices come with port-based QoS for deterministic data transmission, allowing specific ports to prioritize traffic and delay less important data over the remaining ports. The switches use the highest quality components, can operate in temperatures of -40 ~ 75°C, and provide EMS Level 3 protection against electromagnetic interference. The switches comply with E-mark for in-vehicle applications and surveillance systems.

- Full Gigabit Ethernet ports and comply with IEEE
- 802.3af/at PoE standard
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- Wide operating temperature range of -40 ~ 75°C (EKI-5729PI)
- EMS Level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy-Efficient Ethernet
- Jumbo frame support (up to 9,216 Bytes)
- Supports redundant 12 ~ 24 V (9 ~ 36 V) power input and P-Fail relay
- Loop detection

Specifications

MPN

EKI-5729PI-AE
8 x 10/100/1000BASE-TX with PoE + 2GE, Wide Temp.

Communications

Standard

IEEE 802.3af/at, 802.3, 802.3u, 802.3ab, 802.3az,
802.3x, 802.1p

LAN

10/100/1000BASE-T/TX

Transmission Distance

Up to 100 m

Transmission Speed

Up to 1000 Mbps

Interface

Connectors

8 x 10/100/1000BASE-TX with PoE + 2 x 10/100/1000BASE-TX
6-pin removable screw terminal (power & relay)

LED Indicators

System LED

P1, P2, P-Fail, Loop, PoE

Port LED status

10/100/1000BASE-TX: LNK /ACT, Speed, PoE port

Physical

Enclosure

Metal / Aluminum Shell with solid mounting kits

Protection Class

IP30

Installation

DIN-Rail and Wall-Mount

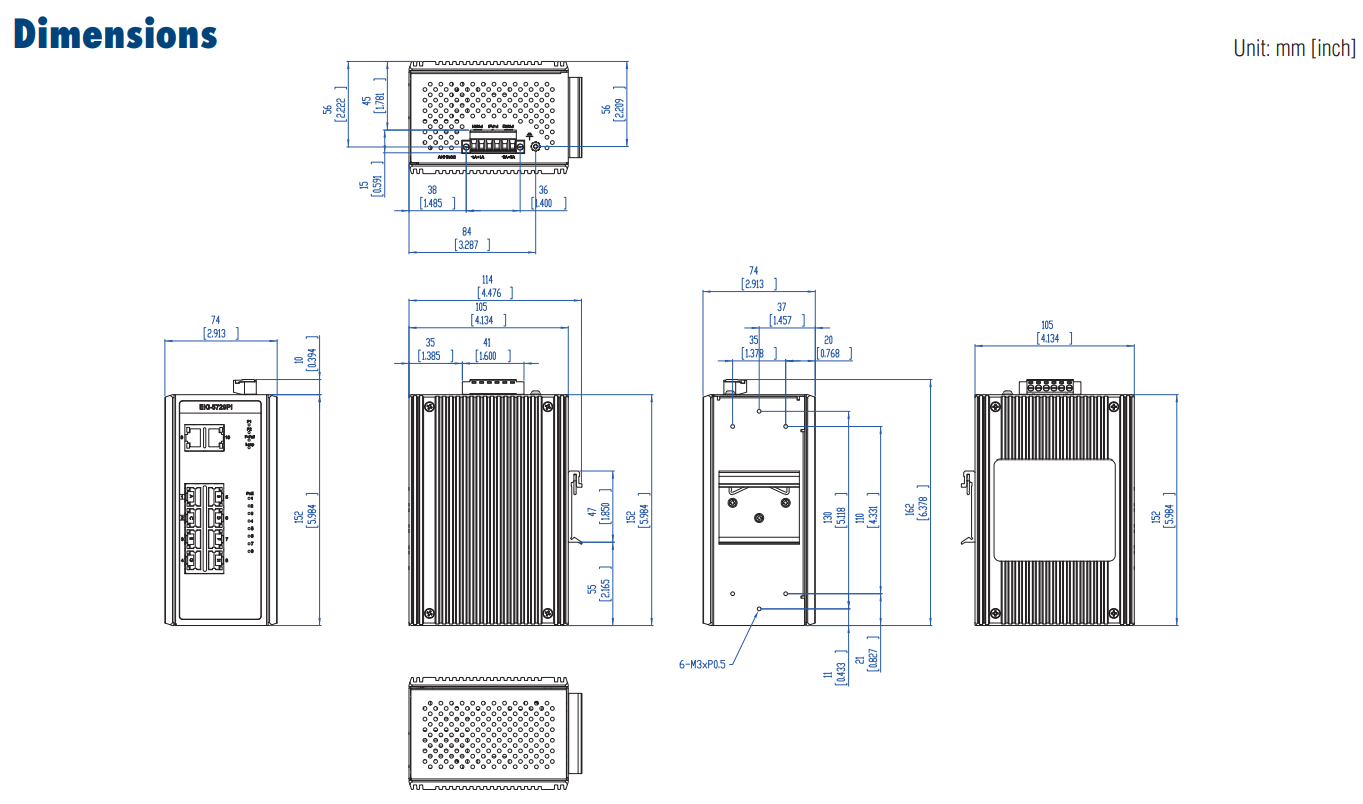

Dimensions (W x H x D)

74 x 152 x 105 mm (2.913 x 5.984 x 4.137) inch

Environment

Operating Temperature

-40 to 75° C (-40 to 167°F)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity

10 ~ 95% (non-condensing)

Switch Properties

MAC Address

8K entries

Packet Buffer

4.1 Mbit

Switching Capacity

20 Gbps

Power

Power Consumption

6w (System)

Power Input

12-24 Vdc, (7A-3A)

Power Budget

60w @ 24v
50w @ 12v

Certification

Safety

UL 61010, e-Mark

EMI

CE, FCC Class A

EMS

EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) Level 3;
EN 61000-4-4 (EFT) Level 3
EN 61000-4-5 (Surge) Level 3;
EN 61000-4-6 (CS) Level 3
EN 61000-4-8 (Magnetic Field) Level 3

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:
EKI-5729PI-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH040017
Product Model:
EKI-5729PI-AE
Warranty: 12 months *
