Advantech Panel PC PPC-415-PB50A 15" Intel i5-1145G7E, Pcap 2 x SODIMM, DDR4 max 64G, 1x2.5" SATA,1xM.2 2242/2280 M Key slot for Storage, 1 x isolated RS-422/485 with auto flow, Wide power input range (9~32 VDC), IP66

PB Tech price
PB Tech price
$ 3,575 .23
 +GST
$ 4,111 .51
 inc GST
$3,575.23  +GST
$4,111.51

Advantech Panel PC PPC-415-PB50A 15" Intel i5-1145G7E, Pcap 2 x SODIMM, DDR4 max 64G, 1x2.5" SATA,1xM.2 2242/2280 M Key slot for Storage, 1 x isolated RS-422/485 with auto flow, Wide power input range (9~32 VDC), IP66

  • Brand: Advantech
  • MPN: PPC-415-PB50A
  • Part #: IPCAVH060012
  • UPC:
PB Tech price
$ 3,575 .23 $ 4,111 .51
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 13 Oct When will I receive it?
$3,575.23  +GST
$4,111.51

Finance from $36.31 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

Designed for high-performance computing 11th gen applications, PPC-415 provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system's compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications.

- 15" XGA TFT LCD flat panel with projected capacitive (default) or resistive (by reuqest) touchscreen
- Intel® Core™ i5-1145G7E processor with fanless system design
- Dual channel memory slots, max 64G
- Supports either 1 x PCIe x4 or 1 x PCI
- 1x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID
- 1x isolated RS-422/485 with auto flow
- Wide power input range (9 ~ 32 VDC)
- Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- 3x Independent displays



For more information: https://advdownload.advantech.com/productfile/PIS/PPC-415%20TGL/file/PPC-415-TGL_DS(020224)20240202165259.pdf

Specifications

General

MPN

PPC-415-PB50A

Description

15" PPC w/Intel Core i5-1145G7E, P-CAP

Hardware

CPU

Intel® Core™ i5-1145G7E 1.5GHz Quad core

Memory

2 x DDR4 SO-DIMM Slot

Storage

1 x SATA M.2 SSD slot (2280/2242 M-Key), 1 x 2.5" SSD/HDD Bay

LAN

2 x 10/100/1000/2500 Mbps

Ethernet

Intel® i225-LM

I/O

2 x RS-232, 1 x RS-422/485, 4 x USB 3.2, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP

Expansion

1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI

Watchdog Timer

1~255 s

Certification

CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Power Input

9~32 VDC

Power Consumption

60 W @ 19 VDC

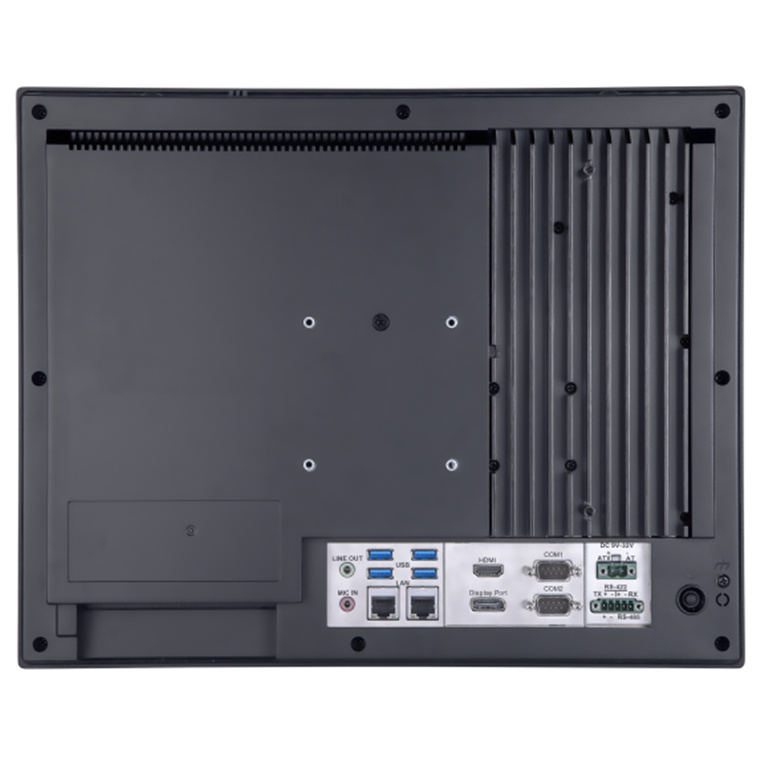

I/O Interface

Serial Ports

2 x RS-232, 1 x RS-422/485

Audio

Line-Out, Mic-In

Displays

1 x HDMI, 1 x DP

Power Connector

1 x 2-Pin Terminal Block

USB Vision

Connector

4 x USB 3.2 Type A

Mechanical

Dimension (W x H x D)

392 x 314 x 55 mm

Enclosure

Die-cast aluminum alloy, PC + ABS

Mounting

Stand, Wall, VESA, Panel

Weight (Net)

5.4 kg (11.90 lb)

Environment

Relative Humidity

95% RH (non-condensing)

Vibration Protection

2 Grms, random

Operating Temperature

-10~50 °C (14~122 °F)

Storage Temperature

-40~60°C (-40~140°F)

Shock Protection

10 G, half sine

Ingress Protection

Front Panel IP66

Touchscreen

Touch Type

PCAP

LCD Display

Display Size

15"

Max. Resolution

1024 x 768

Viewing Angle (H/V°)

176/176

Luminance (cd/m2)

500

Backlight Life (hrs)

70,000

Manufacturer Part No:
PPC-415-PB50A
Brand:
Product Type:
-
UPC
-
Product Family:
Panel PC
Shipping Weight:
1 kg
PB Part No:
IPCAVH060012
Product Model:
PPC-415-PB50A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
