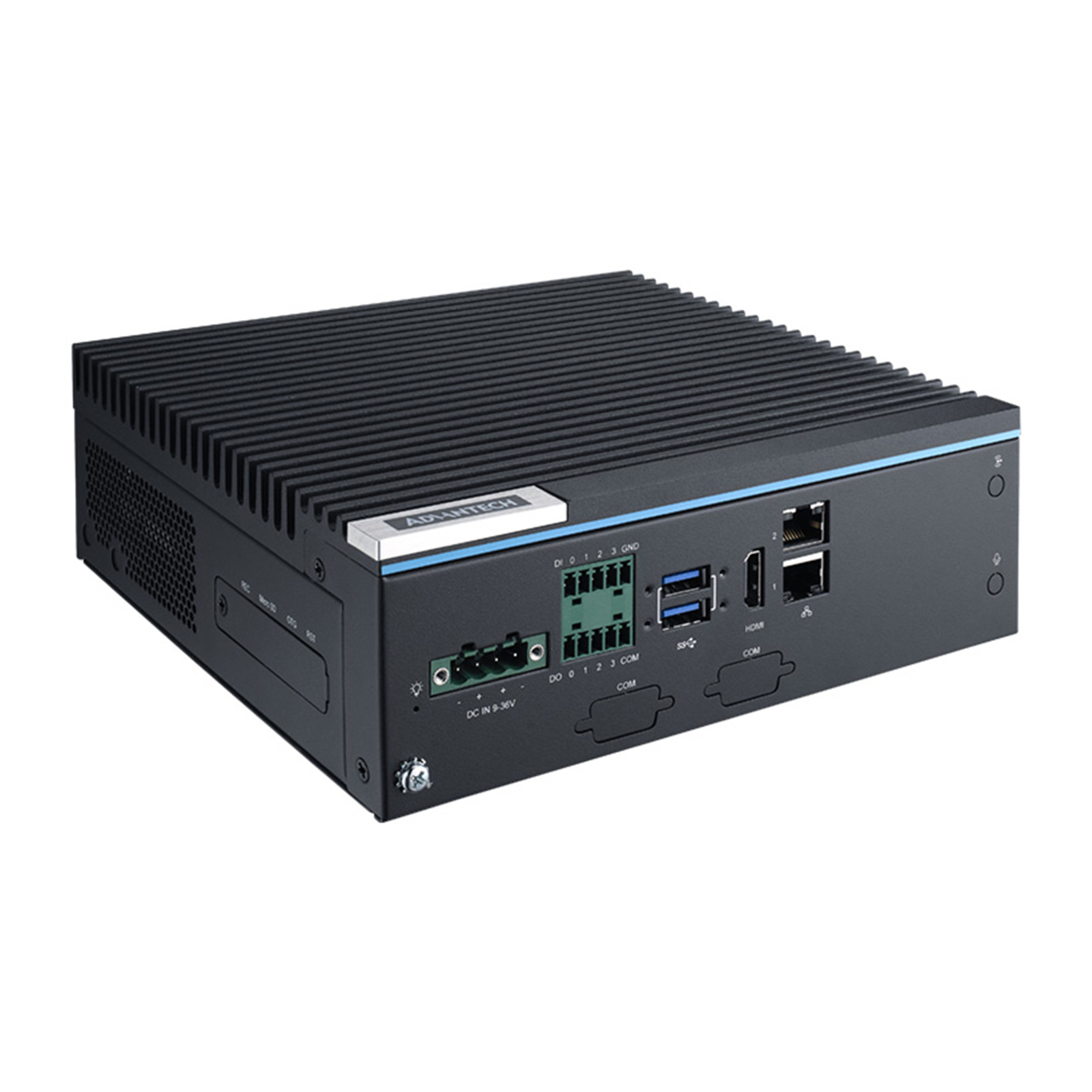

Advantech AI Platform Based on NVIDIA Jetson MIC-713-OX4A1 Orin NX 16GB w/128GB SSD
Advantech AI Platform Based on NVIDIA Jetson MIC-713-OX4A1 Orin NX 16GB w/128GB SSD
- Brand: Advantech
- MPN: MIC-713-OX4A1
- Part #: IPCAVH080017
- UPC:
- Brand: Advantech
- MPN: MIC-713-OX4A1
- Part #: IPCAVH080017
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech AI Platform Based on NVIDIA Jetson MIC-713-OX4A1 Orin NX 16GB w/128GB SSD
- Brand: Advantech
- MPN: MIC-713-OX4A1
- Part #: IPCAVH080017
Product URL: https://www.pbtech.co.nz/product/IPCAVH080017/Advantech-AI-Platform-Based-on-NVIDIA-Jetson-MIC-7
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Innovative Cooling in a Compact Design
The Advantech AI System distinguishes itself with a compact, fanless design, ensuring both space efficiency and silent operation. This makes it an ideal choice for deployment where space is limited or in environments that require low noise emissions. The fanless structure also contributes to enhanced reliability and lower maintenance needs, as there are fewer moving parts prone to wear and failure.
Powered by NVIDIA® Jetson Orin™ NX
At the heart of this AI system lies the powerful NVIDIA® Jetson Orin™ NX module, which delivers AI performance of up to 100 TOPS (Tera Operations Per Second). This high computational capability empowers the system to manage sophisticated AI workloads, such as real-time edge video analytics, smart surveillance, and industrial automation, making it suitable for demanding AI applications.
Extensive IO Connectivity
The device is engineered with versatile connectivity options to suit diverse industrial requirements. It features two Gigabit Ethernet (GbE) ports, providing robust network capabilities for high-speed data transfer and remote communication. Additionally, six USB 3.2 Gen 2 ports ensure fast peripheral connectivity, supporting various sensors, cameras, and storage devices essential for complex AI applications.
Flexible Expansion Capabilities
For expanded functionality, the system comes with multiple expansion slots: one mPCIe, one M.2 3052, and one M.2 2280. These allow integrators to customize and extend the hardware based on application needs, such as adding wireless modules, storage drives, or specialized AI accelerators, thereby future-proofing deployments in rapidly evolving industrial landscapes.
Intelligent Remote Management with Allxon
Advantech's solution integrates Allxon, which provides 24/7 remote monitoring and over-the-air (OTA) deployment capabilities. This means administrators can continuously supervise system health, troubleshoot remotely, and update software seamlessly, maximizing uptime and reducing operational costs. Support for Super mode on Jetpack 6.2 and above further enhances performance and compatibility with advanced AI development frameworks.
Specifications
Processor System
CPU
16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU
1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory
16GB: 16GB LPDDR5
8GB: 8GB LPDDR5
I/O
Ethernet
2 x 10/100/1000 Mbps
Display
HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External: 6 x USB 3.2 Gen 2
Digital I/O
4-ch DI, 4-ch DO
Serial Port
2 x RS-232/422/485 (On-board pin header)
OTG USB
1 x Micro USB
Expansion
Mini PCIe
1 x mPCIe (Signal: PCIe + USB 2.0)
M.2
1 x M.2 3052 (B-Key, Signal: USB)
SIM
2 x Nano SIM slots
TPM (Optional)
1 x TPM 2.0
Storage
M.2
1 x M.2 2280 (Signal: PCIe x1, Gen 4)
SD Card
1 x Micro SD
Power
Mode
AT
Input
9 ~ 36 VDC
Environment
Operating Temperature
-10 ~ 60 °C with 0.7 m/s airflow (-10~50°C with MAXN_SUPER)
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
10G / 11ms
Mechanical
Dimension (W x H x D)
194.8 x 174.3 x 65.85 mm (7.67" x 6.86" x 2.59")
Weight
2.05 kg (w/o packing material)
Installation
Desktop
BSP
Jetpack
Above 5.1
Certification
EMC, Safety
CB/UL/CE/FCC/BSMI/CCC (No RED certification)
