Advantech ADAM-3600-C2GL1A1E 8AI / 8DI / 4DO / 4-Slot Expansion Wireless Intelligent RTU
Advantech ADAM-3600-C2GL1A1E 8AI / 8DI / 4DO / 4-Slot Expansion Wireless Intelligent RTU
- Brand: Advantech
- MPN: ADAM-3600-C2GL1A1E
- Part #: IPCAVH220009
- UPC:
- Brand: Advantech
- MPN: ADAM-3600-C2GL1A1E
- Part #: IPCAVH220009
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech ADAM-3600-C2GL1A1E 8AI / 8DI / 4DO / 4-Slot Expansion Wireless Intelligent RTU
- Brand: Advantech
- MPN: ADAM-3600-C2GL1A1E
- Part #: IPCAVH220009

Product URL: https://www.pbtech.co.nz/product/IPCAVH220009/Advantech-ADAM-3600-C2GL1A1E-8AI--8DI--4DO--4-Slot
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
ADAM-3600-C2G is an cloud ready intelligent Remote Terminal Unit with multiple wireless function capability, multiple I/O selection, wide temperature range and supports flexible communication protocol for oil, gas and water applications. In these application environments, ADAM-3600 is ideal for remote inhospitable regions with many devices that need to be managed remotely.
Wide Array of Flexible I/Os
Wide array of on-board I/O and flexible expansion I/O modules supporting different acquisition requirements giving it a high cost performance.
Remote Firmware Update
The ADAM-3600 can use a USB drive and an SD card to automatically update the firmware so there's no need to bring a computer and execute the configuration program in the field

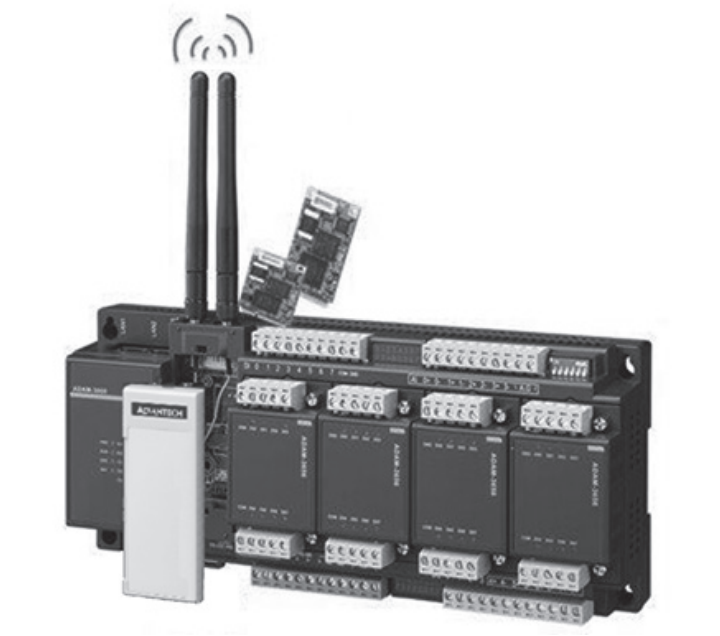

Wireless Communication & Protocols
The ADAM-3600 simultaneously supports two mini-PCIe cards (a half-size and a full-size) for Wi-Fi/ 3G/ GPRS/ Zigbee communication which is flexible for wiring in the field. Modbus RTU/TCP and DNP3 protocols integrate ADAM-3600 with more SCADA systems.

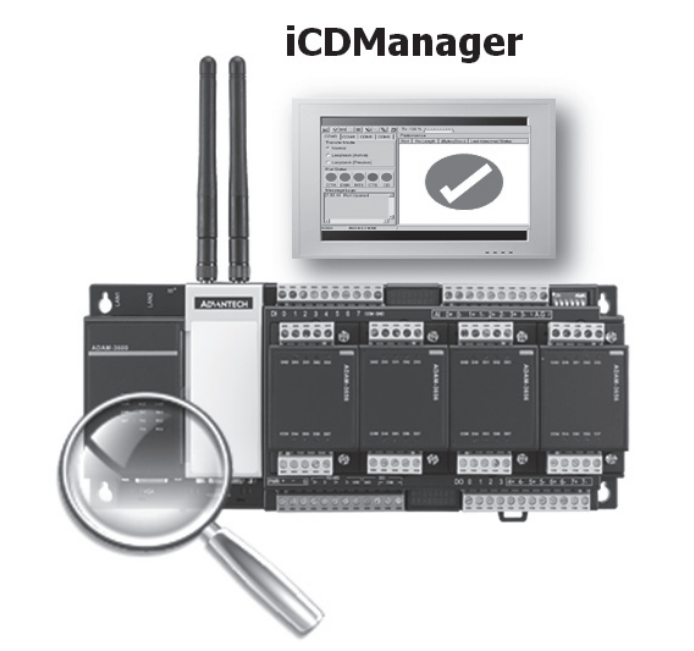

Intelligent Connectivity Diagnosis Manager (iCD Manager)
Remotely monitor serial and Ethernet port status and send alarm information during communication failures to help improve intelligent monitoring.
Wide Temperature Range
A -40 ~ 70°C operating temperature allows the ADAM-3600 to work in harsh environments and reduces maintenance costs for customers.
Node ID for Batch Configuration
Each ADAM-3600 has a node ID as its name to support batch configuration (max.64) with the configuration utility. When an alarm is displayed on the utility, customers can directly find the fault source with the node ID.
Specifications
Control System
CPU
Cortex-A8 AM3352
Memory
RAM 256MB
Battery Backup
RAM 32KB
OS
RT-Linux V3.12
Storage
MicroSD card / 1GB included for system
SD card slot / Optional
Programming
IEC-61131-3, Linux C
Watchdog
Yes
Real-time Clock
Yes
Power
Input 10 ~ 30 VDC
Power Consumption
24V @ 5W
Communication
Protocol
Modbus/TCP, DNP3 L2, TCP/IP, DHCP, IEC104, MQTT
Serial Port
1 x RS232/485- DB9
2 x RS485- Terminal Block
?Ethernet Port
2 x RJ-45 10/100 Mbps
USB Port
1 x USB 2.0
VGA Port
1 x D-SUB15
LED System
LEDs/ IO LEDs
Isolation
2000 VDC
PLC driver support
Siemens/Mitsubishi/Omron/Allen-Bradley, Delta etc
Cyber Security
SSL, SSH, white list
Analog Input
Channel
8 differential
Resolution
16-bit
Input Type
±10V, ±2.5V, 0 ~ 20mA, 4 ~ 20mA
Isolation
2,000 VDC
Digital Input
Channel
8
Input Type
Wet Contact
Protection Voltage
+40 VDC
Isolation
2,000 VDC
Digital Output
Channel
4
Output Type
Open Collector (Sink)
Rated Voltage
8 ~ 30 VDC
Isolation
2,000 VDC
Wireless Communication (Selectable)
Interface
Mini-PCIe (1 x Half-Size / 1 x Full-Size)
Wireless Type
Zigbee- UART Signal
Wi-Fi/Cellular/4G- USB Signal
General
Certification
CE/FCC (No RED certification)
Operating Temp.
-40 ~ 70°C
Storage Temp.
-40 ~ 85°C
Humidity
5 ~ 95%(no-condensation)
Mounting
DIN 35 rail/ Wall Mount
