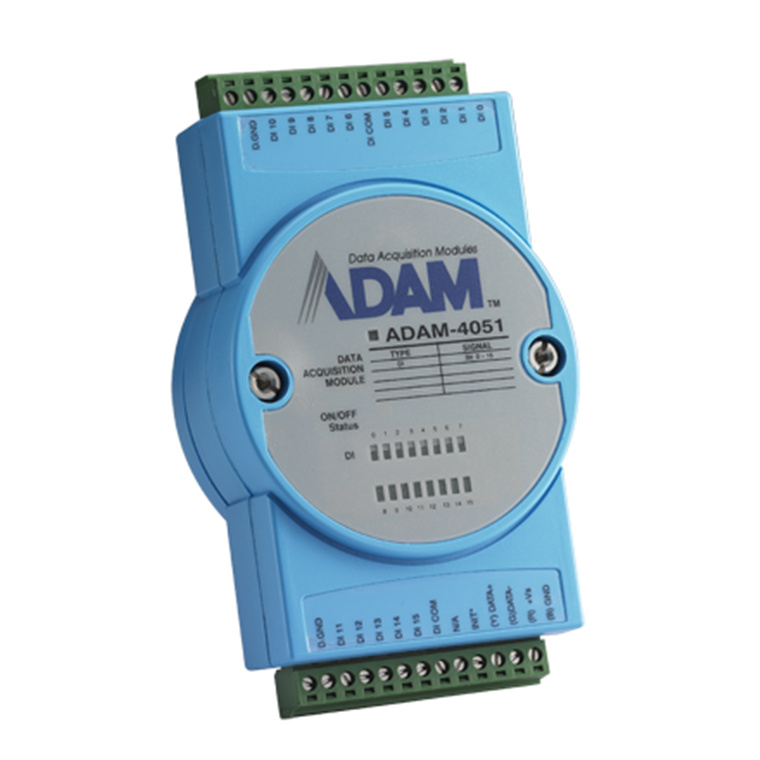

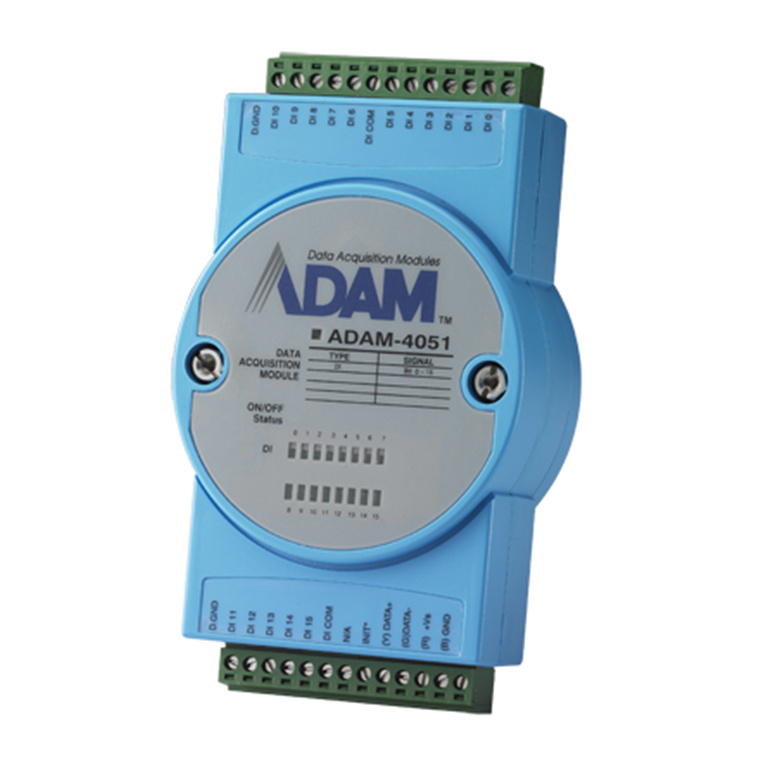

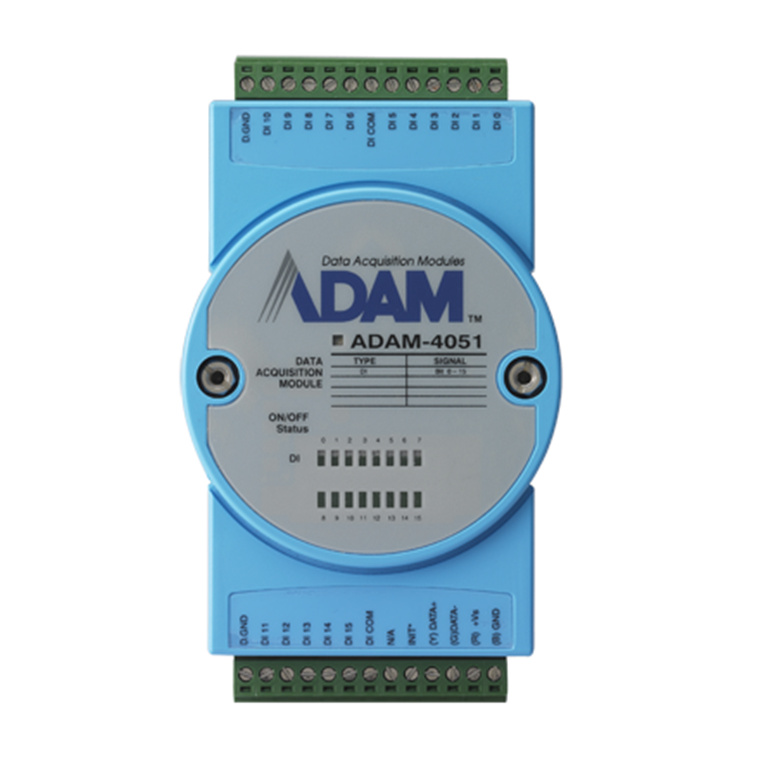

Advantech ADAM-4051-C 16-Ch Isolated DI Module w/ LED & Modbus
Advantech ADAM-4051-C 16-Ch Isolated DI Module w/ LED & Modbus
- Brand: Advantech
- MPN: ADAM-4051-C
- Part #: IPCAVH220051
- UPC:
- Brand: Advantech
- MPN: ADAM-4051-C
- Part #: IPCAVH220051
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O
Advantech ADAM-4051-C 16-Ch Isolated DI Module w/ LED & Modbus
- Brand: Advantech
- MPN: ADAM-4051-C
- Part #: IPCAVH220051
Product URL: https://www.pbtech.co.nz/product/IPCAVH220051/Advantech-ADAM-4051-C-16-Ch-Isolated-DI-Module-w-L
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
ADAM-4051
16DI Modbus RS-485 Remote I/O
- 16ch digital input
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 2500VDC isolation protection
Specifications
General
Certification
FCC, CE
Connectors
2 x plug-in terminal blocks (#14 ~ 28 AWG)
Power Consumption
0.7 W @ 24 V DC typ.
1.25 W @ 24 V DC max.
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command and Modbus/RTU
LED Indicators
Yes
Digital Input
Channels
16
Input Voltage
50 V max
Input Level
Dry contact:
Logic level 0: Open
Logic level 1: Closed to GND
Wet contact:
Logic level 0: 3 V max or floating
Logic level 1: 10 ~ 50 V
Support DO type: Sink (NPN) and Source (PNP)
Isolation Voltage
2,500 VDC
Input Resistance
5.2 k?
Overvoltage Protection
70 VDC
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
- 10 ~ 70°C (14 ~ 158°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
