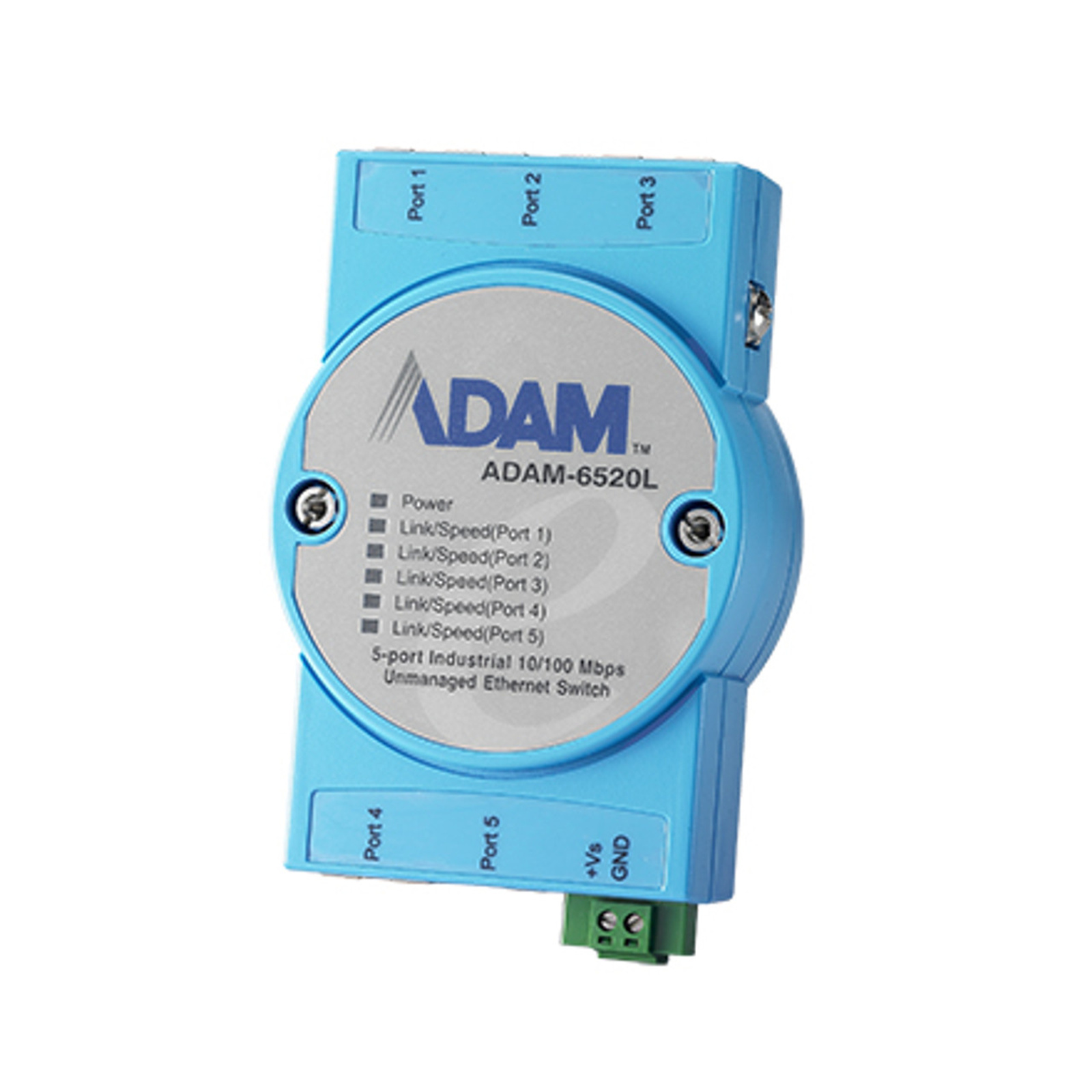

Advantech ADAM-6520L-AE 5 10/100Mbps Unmanaged Ethernet Switch, Flexible mounting, 0 60
Advantech ADAM-6520L-AE 5 10/100Mbps Unmanaged Ethernet Switch, Flexible mounting, 0 60
- Brand: Advantech
- MPN: ADAM-6520L-AE
- Part #: IPCAVH220171
- UPC:
- Brand: Advantech
- MPN: ADAM-6520L-AE
- Part #: IPCAVH220171
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech ADAM-6520L-AE 5 10/100Mbps Unmanaged Ethernet Switch, Flexible mounting, 0 60
- Brand: Advantech
- MPN: ADAM-6520L-AE
- Part #: IPCAVH220171

Product URL: https://www.pbtech.co.nz/product/IPCAVH220171/Advantech-ADAM-6520L-AE-5-10100Mbps-Unmanaged-Ethe
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
5FE Unmanaged Ethernet Switch, Flexible mounting, 0~60?
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Embedded with a switch controller, supports auto-negotiation
- Supports +10~30 VDC for power input
- Provides surge protection 3,000 VDC for power line
- Provides flexible mounting: DIN-rail, Wall, Stack
Specifications
General
Ethernet Port Count
5
Mounting
DIN, Panel
Power
10-30VDC
Technology
Ethernet
Temperature
0 to 60C
Unmanaged
Yes
Certification
EMI
CE, FCC
EMS
-
Safety
UL/cUL 60950-1
Environment
Temperature (Min. Operating)
0°C (32°F)
Temperature (Max. Operating)
60°C (140°F)
Operating Temperature
0 ~ 60°C (32 ~ 140°F), Stack: 0 ~ 50°C (32 ~ 122°F)
Storage Temperature
-10 ~ 70°C (-14 ~ 158°F)
Ethernet Communication
Fiber Port Number
-
Fiber Port Interface
-
Fiber Port Connector Type
-
Fiber Transmission Distance
-
Fiber Transmission Speed
-
RJ-45 Port Number
5
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
Yes
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
70 x 112 x 27 mm
Enclosure (Metal)
-
Enclosure (Plastic)
Yes
IP Rating
IP30
Weight
-
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
2-pin removable screw terminal
Power Consumption
3W
Power Input (AC)
-
Power Input (DC)
1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Power Operating Current
-
Switch Properties
Jumbo Frame
-
MAC Table Size
-
Packet Buffer Size
-
Switch Fabric Speed
-
Protection
Overload Current
-
Reverse Polarity
-
