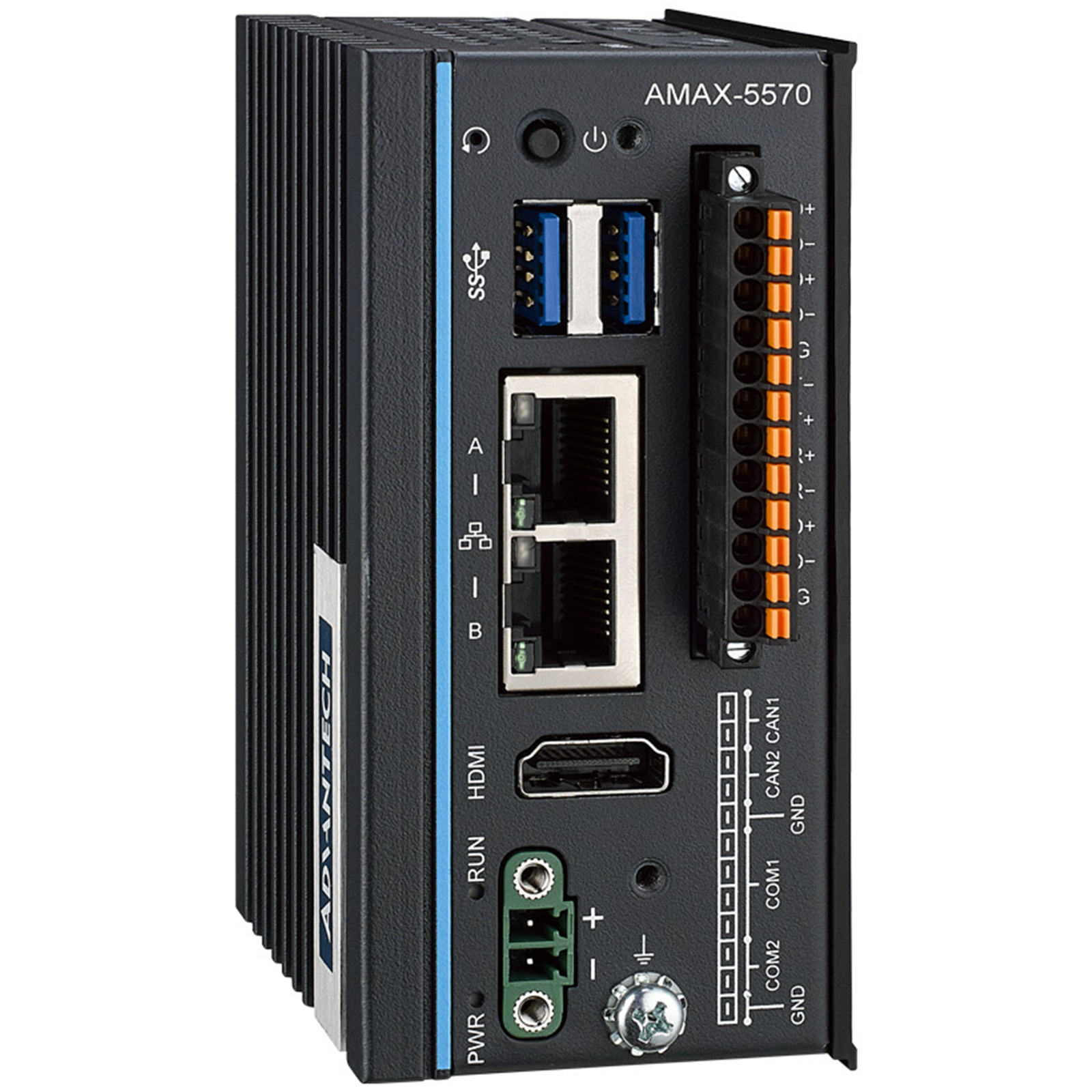

Advantech AMAX-5570-E2200A Ultra Compact Control Platform with Intel Atom Processor
Advantech AMAX-5570-E2200A Ultra Compact Control Platform with Intel Atom Processor
- Brand: Advantech
- MPN: AMAX-5570-E2200A
- Part #: IPCAVH220197
- UPC:
- Brand: Advantech
- MPN: AMAX-5570-E2200A
- Part #: IPCAVH220197
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O
Advantech AMAX-5570-E2200A Ultra Compact Control Platform with Intel Atom Processor
- Brand: Advantech
- MPN: AMAX-5570-E2200A
- Part #: IPCAVH220197
Product URL: https://www.pbtech.co.nz/product/IPCAVH220197/Advantech-AMAX-5570-E2200A-Ultra-Compact-Control-P
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Ultra Compact Control Platform with Intel Atom Processor, 64GB eMMC, 2 x LAN, 2 x USB, 2 x CAN, 2 x COM, and Slice IO expansion
- Intel® Atom® quad-core x6413E processor
- 4 GB DDR4 onboard memory
- 64GB eMMC on board storage
- Optimized I/O with 2 x GbE, 2 x USB, 2 x CAN, 2 x COM, 1 x HDMI
- Full-size mPCIE and M.2 B key slot for flexible expansion
- Built-in TPM2.0 for hardware-based security
- System ground isolation and port isolation of CAN/COM
- IEC 61010 certified for industrial applications
Specifications
Hardware
Power Input
24 VDC +10%
CPU
Intel® Atom™ x6413E 1.5GHz Quad-Core
Memory
1 x DDR4 with 4 GB
Storage
1 x eMMC (64G), 1 x SATA M.2 SSD slot
(2242 B-key), 1 x mSATA (Shared with mPCle)
Video Port
HDMI
Graphics Engine
Intel HD Graphics 620
I/O
2 × 10/100/1000 Mbps RJ45, 1 x RS-232, 1 x RS-
232/RS-485/RS-422, 1 x USB 2.0, 1 x USB 3.0
Expansion
1 x Full-size mPCle, 1 x M.2 B key 2242
Certification
CE, FCC class A, UL-61010
OS Support
Microsoft® Windows 10 LTSC, Linux
Mechanical
Dimension (W x H x D)
100 x 70 x 48.5 mm
Enclosure
Aluminum housing, Steel
Mounting
DIN-rail
Form Factor
Passive Cooling
Weight (Net)
480 g (0.22 lb)
Environment
Ingress Protection
IP20
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-40~85 °C (-40~185 °F)
Relative Humidity
10~95% RH (non-condensing)
Vibration Protection
2 Grms, random
Shock Protection
50 G, half sine
