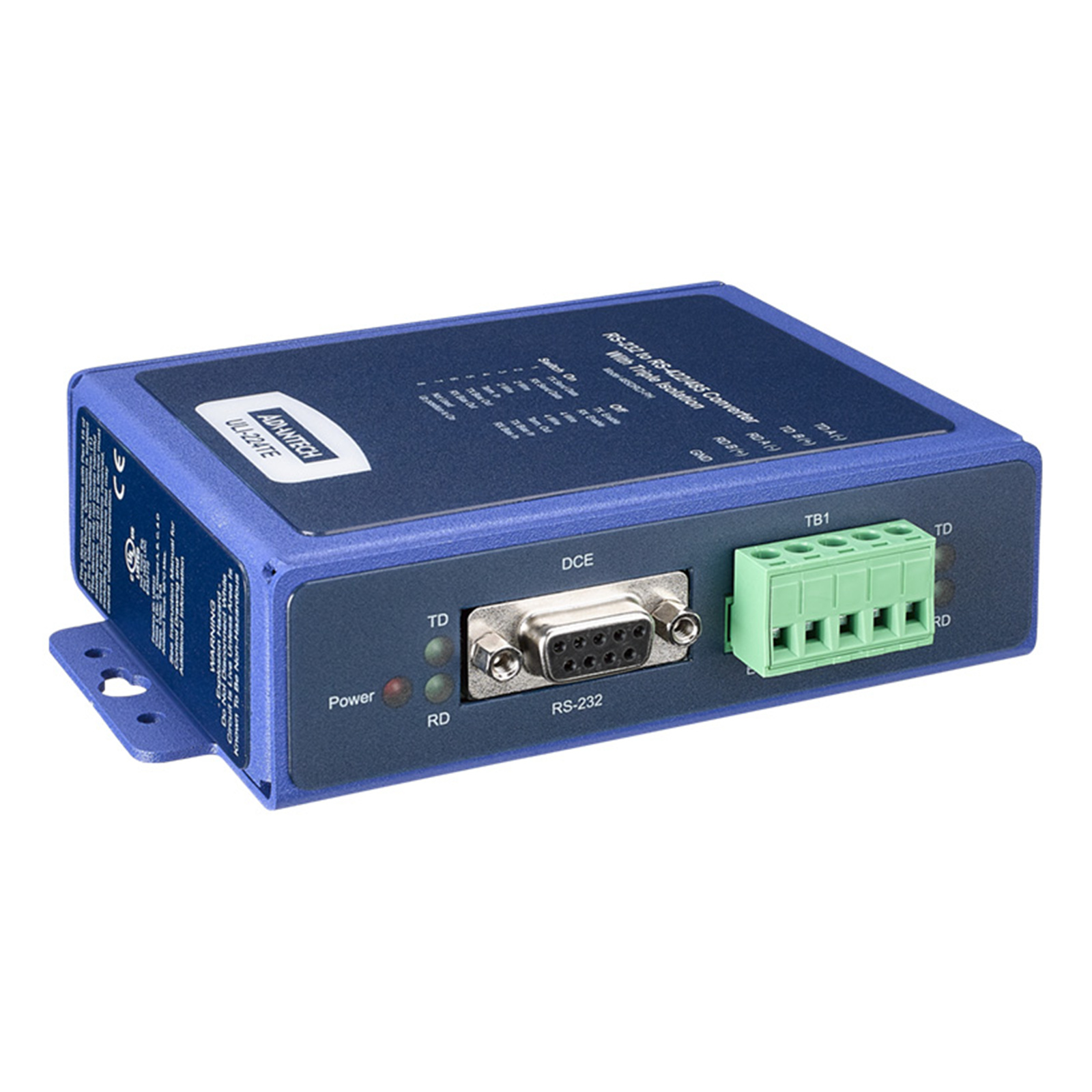

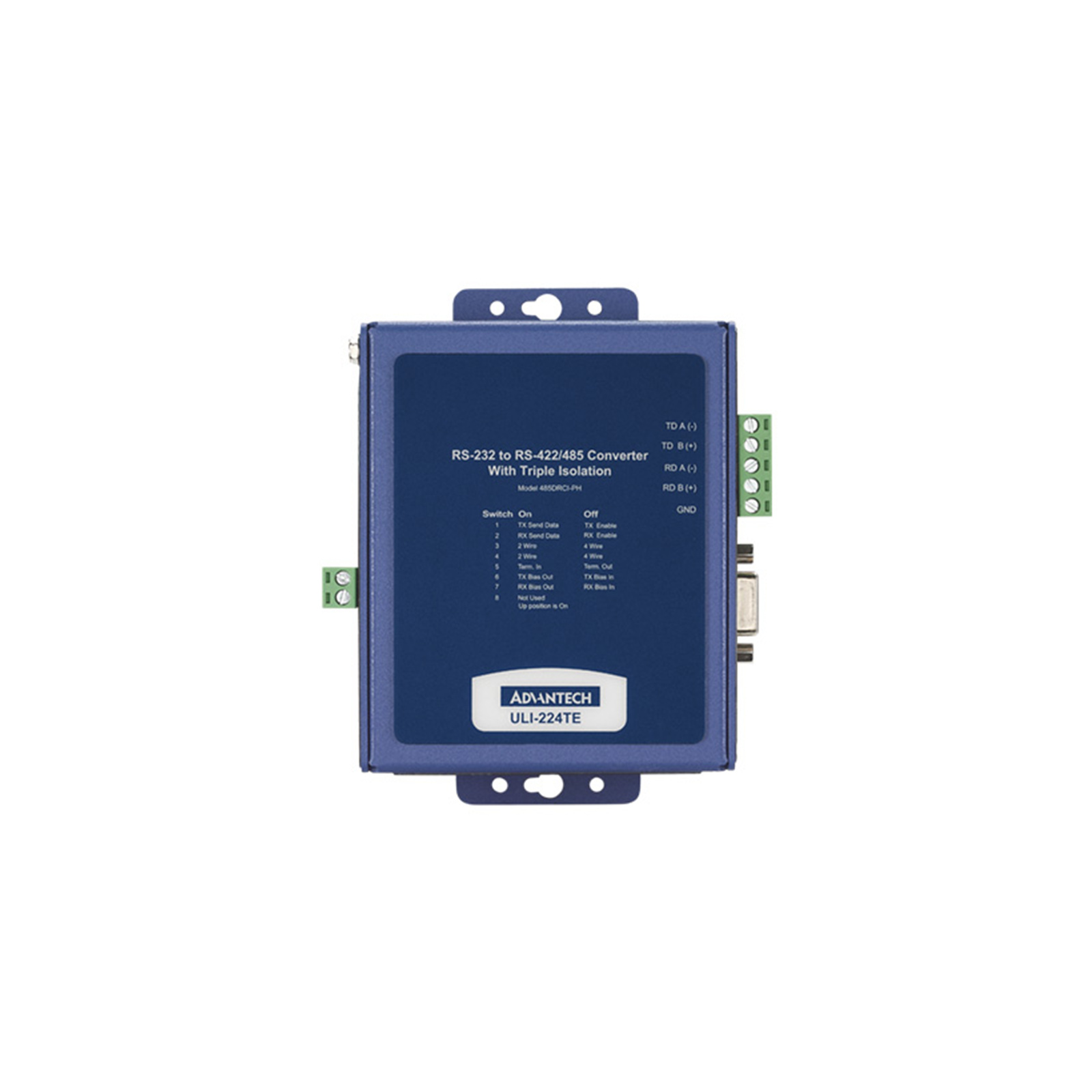

Advantech BB-485DRCI-PH ULI-224TE - Serial Converter, RS-232 (DB9) to RS-422/485 (TB) , Isolated, Ind., DIN Mount, C1D2
Advantech BB-485DRCI-PH ULI-224TE - Serial Converter, RS-232 (DB9) to RS-422/485 (TB) , Isolated, Ind., DIN Mount, C1D2
- Brand: Advantech
- MPN: BB-485DRCI-PH
- Part #: IPCAVH220242
- UPC:
- Brand: Advantech
- MPN: BB-485DRCI-PH
- Part #: IPCAVH220242
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech BB-485DRCI-PH ULI-224TE - Serial Converter, RS-232 (DB9) to RS-422/485 (TB) , Isolated, Ind., DIN Mount, C1D2
- Brand: Advantech
- MPN: BB-485DRCI-PH
- Part #: IPCAVH220242
Product URL: https://www.pbtech.co.nz/product/IPCAVH220242/Advantech-BB-485DRCI-PH-ULI-224TE---Serial-Convert
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
ULI-224TE - Heavy Industrial RS-232 (DB9 Female to RS-422/485 (Terminal Block) Converter, DIN Mount, Metal Chassis
- Converts RS-232 data signals to RS-422/RS-485
- Three-way 2 KV optical isolation (input, output, power)
- Wide operating temperature: -40 to +85 °C
- Modbus ASCII/RTU
- Rugged IP30 metal panel mount case, DB9 F / TB
- 10-48 Vdc input power (external power supply required, sold separately)
- UL C1/D2, IEEE-61850-3, IEEE-1613
Specifications
General
Technology
Serial
Mounting
Panel
Power
10-48VDC
Temperature
-40 to 85C
Isolation
2kV
Power and Data Isolated
Yes
Serial Communication
Serial Converter
RS-232 to RS-422/485
Serial Port Connector Type
1 x DB9 Female, 1 x Terminal Block
Serial Port Number
1
Maximum Serial Transmission Speed
115.2 Kbps
Environment
Operating Temperature
-40 ~ 85°C (-40 ~ 185°F)
Protection
Isolation
2,000 VDC
Surge Protection
600W
Certification
Substation
IEC-61850-3
Safety
Class I, Division 2, UL 508
Power
Power Input (DC)
10 ~ 48 VDC
Accessory General
Mounting
Panel, DIN
Mechanism
Enclosure (Metal)
Metal
