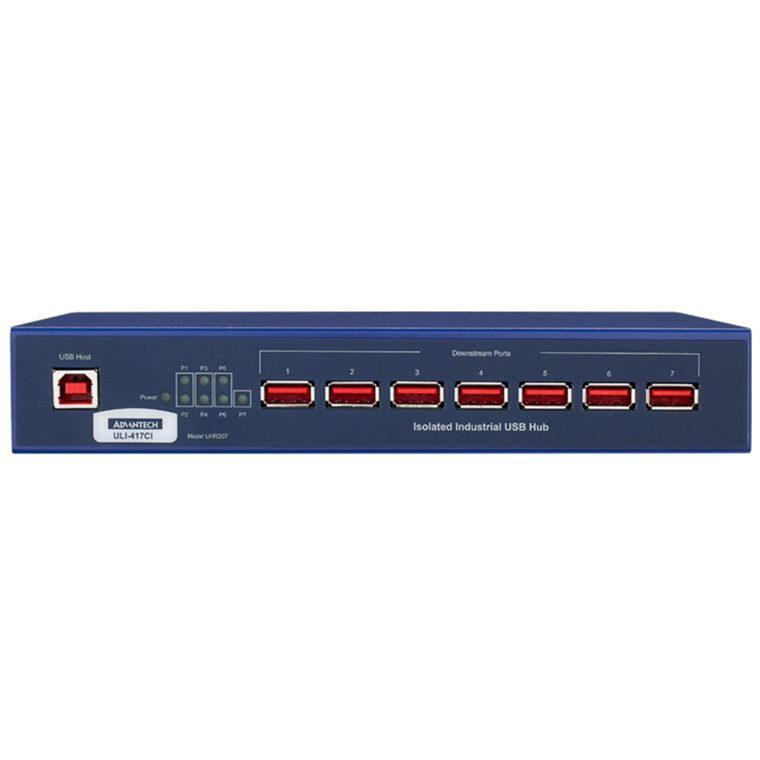

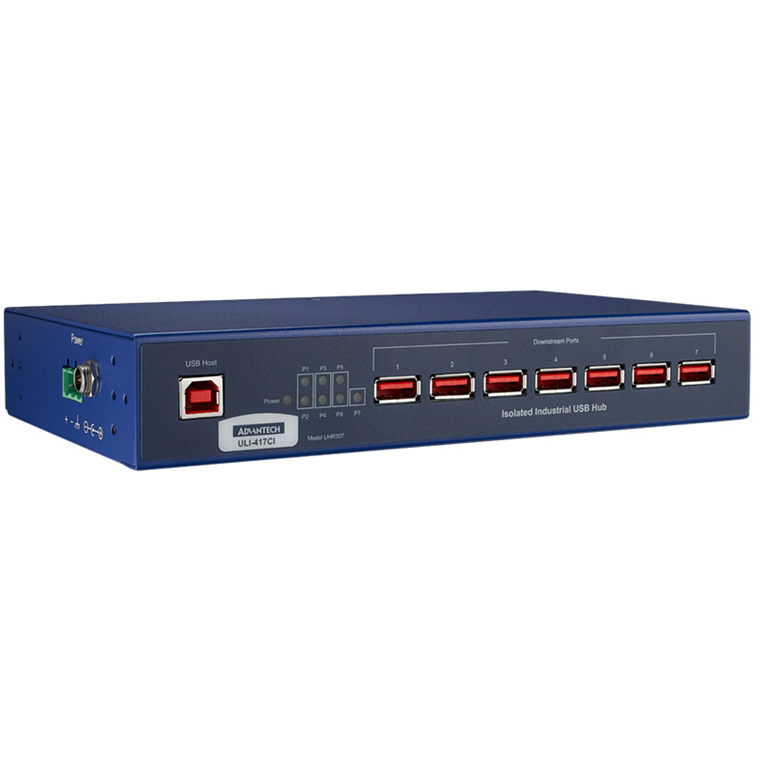

Advantech BB-UHR307 ULI-417CI USB 2.0 Hub, 7 Port, Industrial, Iso.
Advantech BB-UHR307 ULI-417CI USB 2.0 Hub, 7 Port, Industrial, Iso.
- Brand: Advantech
- MPN: BB-UHR307
- Part #: IPCAVH220369
- UPC:
- Brand: Advantech
- MPN: BB-UHR307
- Part #: IPCAVH220369
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech BB-UHR307 ULI-417CI USB 2.0 Hub, 7 Port, Industrial, Iso.
- Brand: Advantech
- MPN: BB-UHR307
- Part #: IPCAVH220369
Product URL: https://www.pbtech.co.nz/product/IPCAVH220369/Advantech-BB-UHR307-ULI-417CI-USB-20-Hub-7-Port-In
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
- Expands one USB port to 7 USB ports (USB 2.0)
- 4kV isolation & ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B Protection
- Data rate: 12 Mbps at high speed
- Wide operating temperature: -40 to +80 °C
- Rugged metal case - desk, DIN rail or panel mount (brackets included)
- FCC, CE, UL, EMC heavy industrial
- High retention USB port connectors
- USB cable included, 1.8 m
- External power source required (not included, sold separately)
For more information: https://advdownload.advantech.com/productfile/PIS/BB-UHR307/file/ULI-414_417-Series_DS-(19Jun2024)20240807163355.pdf
Specifications
General
Technology
USB
Mounting
DIN, Panel
Power
10-30VDC
Temperature
-40 to 80C
Isolation
4kV
USB Port Count
7
Power
Power Input (DC)
10 ~ 30 VDC
Environment
Operating Temperature
-40 ~ 80°C (-40 ~ 176°F)
Certification
Safety
UL508, Class 1 Division 2
Protection
ESD Protection
8 kV (Contact) ; 15 kV (Air)
Isolation
4,000 VDC
Upstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Full-Speed (12 Mbps)
Connector Type
Type B (Female) High Retention
Port Number
1
Downstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Full-Speed (12 Mbps)
Connector Type
Type A (Female) High Retention
Port Number
7
Supply Current
500mA for each downstream port
Mechanism
Enclosure (Metal)
Metal
Accessory General
Mounting
DIN
