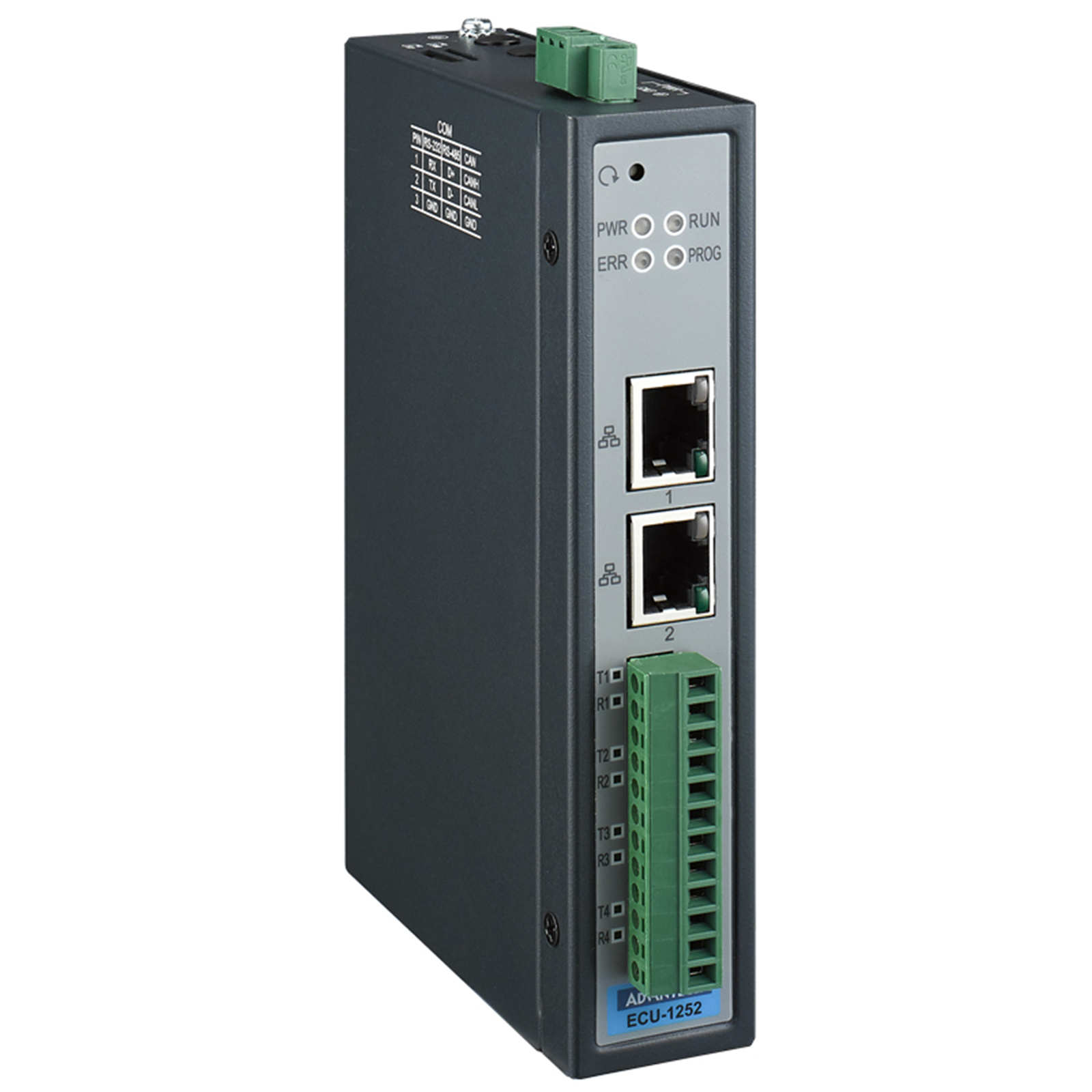

Advantech ECU-1252TL-R22AA A9 600MHz,2xCAN,2xLAN,2xCOM,1xmPCIe w/EdgeLink
Advantech ECU-1252TL-R22AA A9 600MHz,2xCAN,2xLAN,2xCOM,1xmPCIe w/EdgeLink
- Brand: Advantech
- MPN: ECU-1252TL-R22AA
- Part #: IPCAVH220407
- UPC:
- Brand: Advantech
- MPN: ECU-1252TL-R22AA
- Part #: IPCAVH220407
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech ECU-1252TL-R22AA A9 600MHz,2xCAN,2xLAN,2xCOM,1xmPCIe w/EdgeLink
- Brand: Advantech
- MPN: ECU-1252TL-R22AA
- Part #: IPCAVH220407

Product URL: https://www.pbtech.co.nz/product/IPCAVH220407/Advantech-ECU-1252TL-R22AA-A9-600MHz2xCAN2xLAN2xCO
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- TI Cortex A9 600MHz CPU
- DDR3L 2GB RAM
- 16GB eMMC for system storage
- 1 x Micro-SD Slot
- 2 x CAN port
- 2 x RS-232/485 isolated serial ports
- 2 x 1000 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
Specifications
General
Certification
CE, FCC
Mounting
Wall-Mount/ DIN-Rail
Power consumption
2.4W @ 24VDC
Power Requirements
10 ~ 30 VDC
Dimensions (W x D x H)
140 x 96.5 x 30mm
Enclosure
SGCC
Operating System
Yocto 4.9
System
CPU
TI Cortex A9, 600MHz
Memory
DDR3L 2GB
Storage
16GB eMMC for system storage
Indicators
LEDs for Power, Run, Error, LAN (LINK, ACT),
Serial (Tx, Rx), Programmable
SD Slot
1 x Micro-SD slot
Watchdog
Yes
Real-time clock
Yes
Security
TPM 2.0 (Optional)
Communication
Serial Port
2 x RS-232/485
Isolation
3000 VDC
Serial Port Speed
50 ~ 115200bps
Ethernet Port
2 x 100/1000 RJ-45 ports
CAN Port
2 x CAN (2PIN)
Wireless (Optional)
Interface: 1x Mini-PCIe (Full-size)
Type: WIFI/Cellular/4G
Signal: USB
WISE-Edgelink*
Protocol Support
OPC-UA Client & Server,
BACNet/IP Client & Server,
Modbus RTU/TCP,
IEC-60870-5-101,
IEC-60870-5-103,
IEC-60870-5-104
PLC driver support
Siemens/Mitsubishi/Omron/Allen-Bradley, Delta etc
200+ PLC drivers
Programming Support
Linux C, Phython
Configuration Tool
WISE-EdgeLink Studio
Data Monitoring
2000 Tags Max.
Cloud Connectivity
WISE-Edge365, MQTT, AWS, Azure, LwM2M, Google
Cloud IoT Core and more
Database Transmission
SQL Server, MySQL, ORACEL, FTP Server
VPN
Open VPN
Environment
?Operating Temperature -40 ~ 70°C
?Storage Temperature -40 ~ 85°C
?Humidity 5 ~ 95% (non-condensing)
