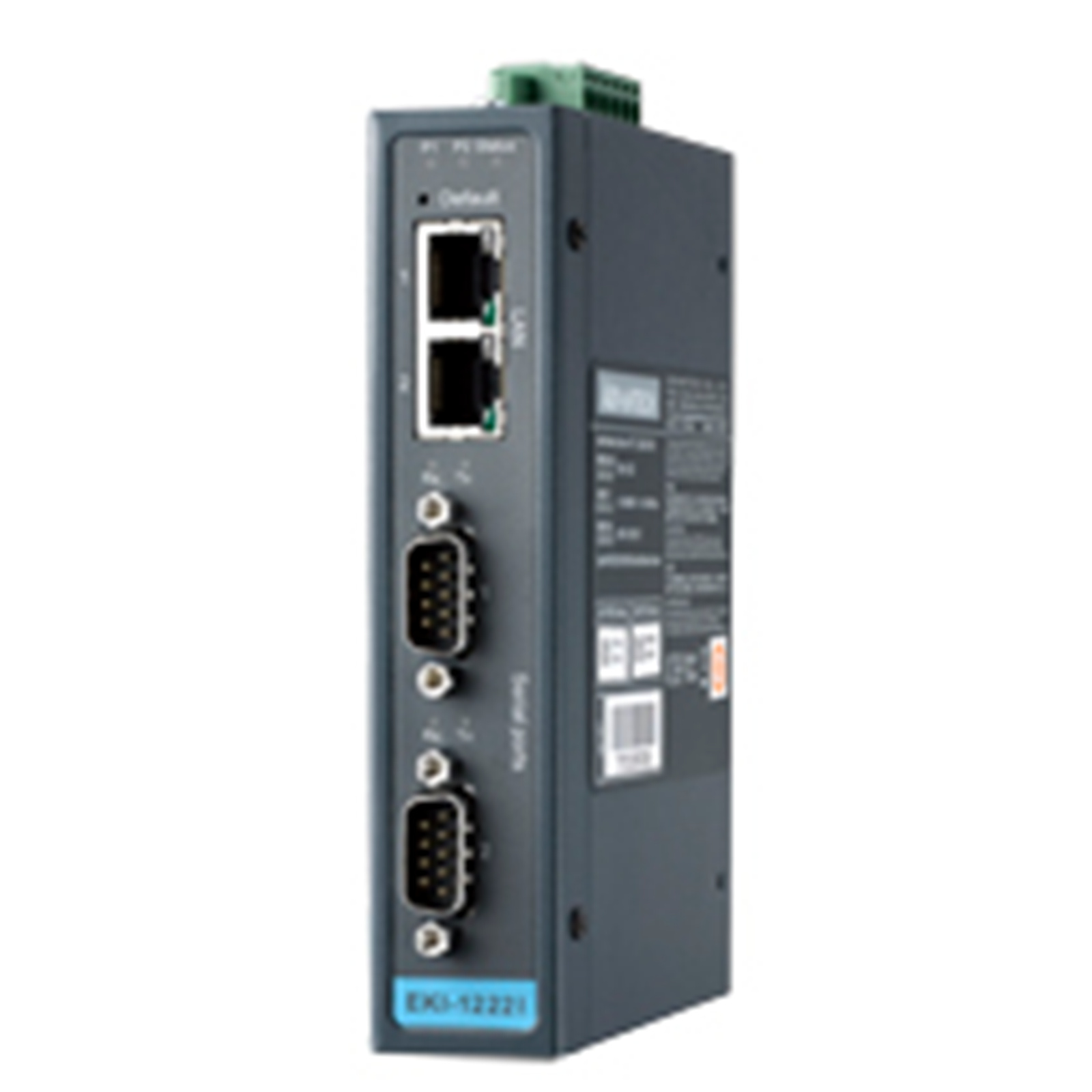

Advantech EKI-1222I-CE 2-Port Modbus Gateway, Wide Temperature
Out of stock
Advantech EKI-1222I-CE 2-Port Modbus Gateway, Wide Temperature
- Brand: Advantech
- MPN: EKI-1222I-CE
- Part #: IPCAVH220417
- UPC:
- Brand: Advantech
- MPN: EKI-1222I-CE
- Part #: IPCAVH220417
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech EKI-1222I-CE 2-Port Modbus Gateway, Wide Temperature
- Brand: Advantech
- MPN: EKI-1222I-CE
- Part #: IPCAVH220417

Product URL: https://www.pbtech.co.nz/product/IPCAVH220417/Advantech-EKI-1222I-CE-2-Port-Modbus-Gateway-Wide
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
?- Integrates Modbus TCP and Modbus RTU/ASCII networks
?- Supports up to 921.6 kbps and any baud rate setting
-? Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus servers mode
?- Software-selectable RS-232/422/485-2w/485-4w communication
-? Mountable via DIN rail and wall mount
?- Built-in 15 kV ESD protection for all serial signals
- Automatic RS-485 data flow control
-? Supports surge protection for DC power ports with line-to-line (1 kV) and line-to-earth (2 kV) for signal ports with 2 kV
-? "I" models support a wide operating temperature
-? "CI" models support isolation and a wide operating temperature
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u
Speed
10/100 Mbps
No. of Ports
2
Port Connector
8-pin RJ45
Protection
Built-in 2.25 k VDC magnetic isolation
Serial Communications
Port Type
RS-232/422/485-2w/485-4w, software selectable
(EKI-1224CI-CE supports RS-422/485 only)
No. of Ports
EKI-1221: 1
EKI-1222: 2
EKI-1224: 4
Port Connector
DB9 male
EKI-1221CI-DE; EKI-1222CI-DE also provide Terminal Block
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS
Baud Rate
50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals
[CE Version]
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD- GND (not include CI models)
[DE Version]
DB9:
RS-232 isolation: TxD, RxD, CTS, RTS, GND
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
Terminal Block ( From top to bottom):
RS-422: GND, RxD-, RxD+, TxD+, TxDRS485 2-wire: GND, NC, NC, TxD+, TxDRS485 4-wire: GND, RxD-, RxD+, TxD+, TxD-
Protection
15 KV ESD for all signals
Software
OS Support Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Utility Software
Advantech EKI Device Configuration Utility
?Operation Modes
Modbus RTU Client/Server mode
Modbus ASCII Client/Server mode
Configuration
Windows Utility, Telnet Console, Web Browser
Protocols
ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, HTTP, DNS, SMTP, ARP, NTP
General
LED Indicators System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Reboot Trigger
Built-in WDT (watchdog timer)
Mechanics
Dimensions (W x H x D)
EKI-1221/I-CE; EKI-1221CI-DE; EKI-1222/I-CE;
EKI-1222CI-DE: 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
EKI-1224/CI/I-CE: 42 x 140 x 95 mm (1.65" x 5.51" x 3.74")
Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
EKI-1221: 0.472 Kg
EKI-1222: 0.48 Kg
EKI-1224: 0.555 Kg
IP Rating
IP30
Power Requirements
Power Input
12 ~ 48 VDC, redundant dual inputs
Power Connector
Terminal block
Power Consumption
EKI-1221: 3.2 W
EKI-1222: 3.2 W
EKI-1224: 4.1 W
Environment
Operating Temperature
EKI-1221/EKI-1222/EKI-1224: -10 ~ 60 °C (14 ~ 140 °F)
'CI & I' models: -40 ~ 80 °C (-40 ~ 176 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% RH
