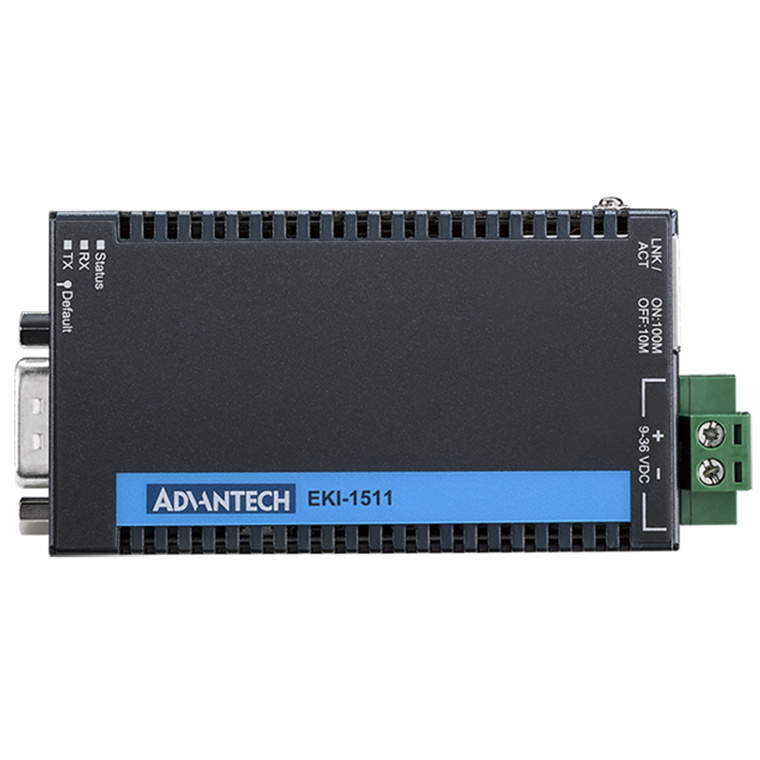

Advantech EKI-1511IL-A 1-Port RS-232 Serial Device Server
Out of stock
Advantech EKI-1511IL-A 1-Port RS-232 Serial Device Server
- Brand: Advantech
- MPN: EKI-1511IL-A
- Part #: IPCAVH220429
- UPC:
- Brand: Advantech
- MPN: EKI-1511IL-A
- Part #: IPCAVH220429
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-1511IL-A 1-Port RS-232 Serial Device Server
- Brand: Advantech
- MPN: EKI-1511IL-A
- Part #: IPCAVH220429

Product URL: https://www.pbtech.co.nz/product/IPCAVH220429/Advantech-EKI-1511IL-A-1-Port-RS-232-Serial-Device
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The EKI-1511 Series focus on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. This allows nearly any device with a serial port to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI-1511 Series ensure compatibility in network software using a standard network API. Serial devices can communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.
- 1 x 10/100 Mbps Ethernet port
- Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
- Baud rate: supports up to 230.4 Kbps
- Maximum of five hosts can access one serial port
- Maximum of 16 hosts accessed in TCP client mode
- Built-in 8-kV ESD protection for all serial signals
- Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
- "I" models support a wide operating temperature
- "L" models support RS-232 only; "X" models support RS-422/485
Specifications
General
MPN
EKI-1511IL-A
Description
1-Port RS-232 Serial Device Server
Serial Communication
Serial Standard
RS-232
Serial Port Connector Type
DB9 male
Serial Port Number
1
Baud Rate
300~230.4 kbps
Certification
EMC
CE, FCC
EMI
EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
Freefall
IEC 60068-2-32
Safety
UL 62368
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Standard
IEEE 802.3 , 802.3u
RJ-45 Port Number
1
RJ-45 Transmission Speed
10/100 Mbps
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
Enclosure (Metal)
Metal with solid mounting hardware
IP Rating
IP30
Mounting (DIN-rail)
Yes
Mounting (Wall)
Yes
Weight
125 g
Power
Power Consumption
1W
Power Input (DC)
9 ~ 36 VDC
Protection
Ethernet Isolation
Built-in 2.25 k VDC magnetic isolation
Software
Configuration
Windows utility, Telnet console, Web Browser
Operation Mode
COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
