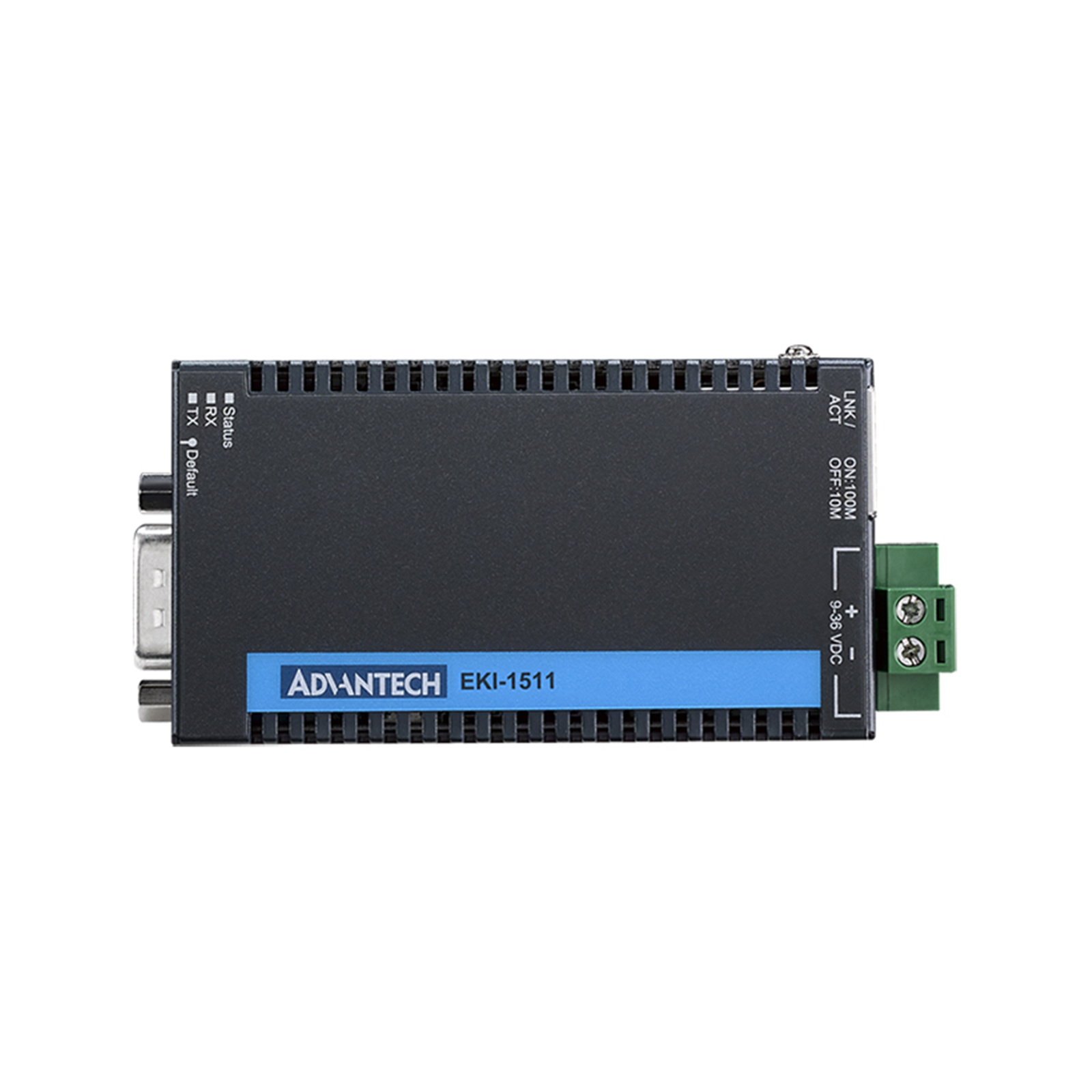

Advantech EKI-1511L-A 1-Port RS-232 Serial Device Server
Out of stock
Advantech EKI-1511L-A 1-Port RS-232 Serial Device Server
- Brand: Advantech
- MPN: EKI-1511L-A
- Part #: IPCAVH220430
- UPC:
- Brand: Advantech
- MPN: EKI-1511L-A
- Part #: IPCAVH220430
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech EKI-1511L-A 1-Port RS-232 Serial Device Server
- Brand: Advantech
- MPN: EKI-1511L-A
- Part #: IPCAVH220430

Product URL: https://www.pbtech.co.nz/product/IPCAVH220430/Advantech-EKI-1511L-A-1-Port-RS-232-Serial-Device
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
1-Port Serial Device Server
- 1 x 10/100 Mbps Ethernet port
- Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
- Baud rate: supports up to 230.4 Kbps
- Maximum of five hosts can access one serial port
- Maximum of 16 hosts accessed in TCP client mode
- Built-in 8-kV ESD protection for all serial signals
- Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
- "I" models support a wide operating temperature
- "L" models support RS-232 only; "X" models support RS-422/485
Specifications
Serial Communication
Serial Standard
RS-232
Serial Port Connector Type
DB9 male
Serial Port Number
1
Baud Rate
300~230.4 kbps
Certification
EMC
CE, FCC
EMI
EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
Freefall
IEC 60068-2-32
Safety
UL 62368
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Enclosure (Metal)
Metal with solid mounting hardware
IP Rating
IP30
Mounting (DIN-rail)
Yes
Mounting (Wall)
Yes
Weight
125 g
Ethernet Standard
IEEE 802.3 , 802.3u
RJ-45 Port Number
1
RJ-45 Transmission Speed
10/100 Mbps
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
Enclosure (Metal)
Metal with solid mounting hardware
IP Rating
IP30
Mounting (DIN-rail)
Yes
Mounting (Wall)
Yes
Weight
125 g
Power
Power Consumption
1W
Power Input (DC)
9 ~ 36 VDC
Protection
Ethernet Isolation
Built-in 2.25 k VDC magnetic isolation
Software
Configuration
Windows utility, Telnet console, Web Browser
Operation Mode
COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
