Advantech FPM-7151T-R3AE 15 XGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature Range
Advantech FPM-7151T-R3AE 15 XGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature Range
- Brand: Advantech
- MPN: FPM-7151T-R3AE
- Part #: IPCAVH220714
- UPC:
- Brand: Advantech
- MPN: FPM-7151T-R3AE
- Part #: IPCAVH220714
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech FPM-7151T-R3AE 15 XGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature Range
- Brand: Advantech
- MPN: FPM-7151T-R3AE
- Part #: IPCAVH220714

Product URL: https://www.pbtech.co.nz/product/IPCAVH220714/Advantech-FPM-7151T-R3AE-15-XGA-Industrial-Monitor
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel
that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
and various mount options to ensure easy installation and support for diverse environments.
- 15" XGA TFT LED LCD with 50K backlight lifetime
- Robust system with IP66-rated aluminum front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Anti-glare touchscreen with tempered glass
- Supports various mount options: panel, wall, desktop, and VESA arm
- Combo RS-232+USB interface for touchscreen functionality
- OSD control buttons on rear panel

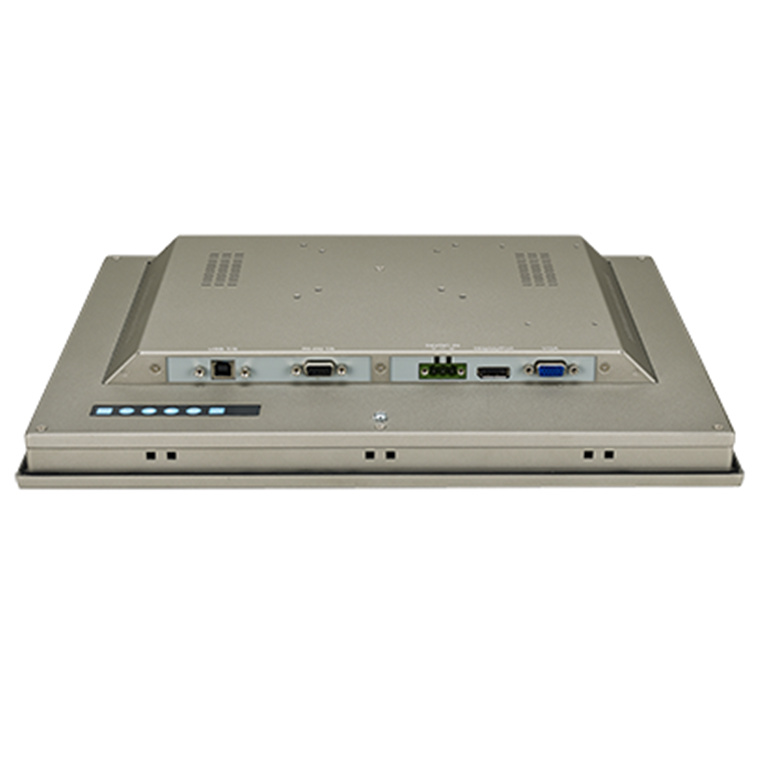

- Lockable I/O connectors
Specifications
General
OSD Controls
OSD control buttons on rear panel
Certification
BSMI, CCC, CE, FCC Class A, UL

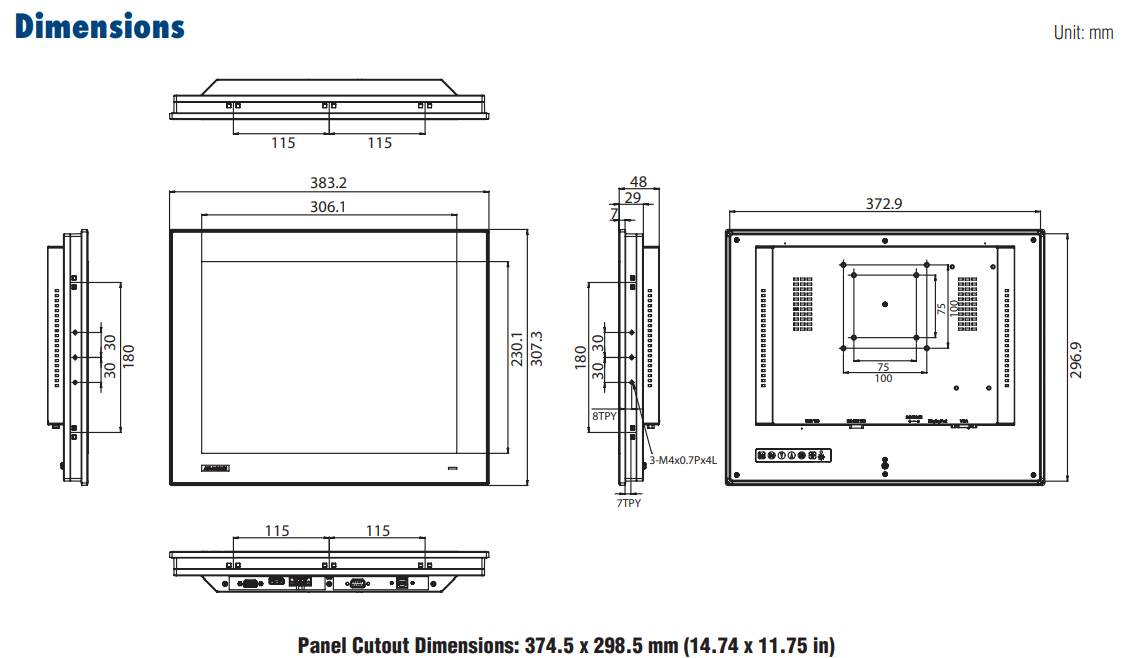

Dimensions (W x H x D)
383.2 x 307.3 x 48.2 mm (15.09 x 12.10 x 1.90 in)
Enclosure
Front panel: Die cast magnesium alloy
Rear cover: SECC
Mount Options
Stand, Wall, Panel and VESA 75 x 75 & 100 x 100mm
Power Input
Phoenix Jack: 24 VDC input
Power Consumption
15 W + 20%
Video Port
VGA & DP
Weight (Net)
4.2 kg (9.26 lb)
LCD Display
Display Type
XGA TFT LED LCD
Display Size
15"
Max. Resolution
1024 x 768
Max. Color
16.7M
Viewing Angle (H/V °)
160/140
Luminance (cd/m²)
400
Backlight Life
50,000 hr
Contrast Ratio
700 :1
Touchscreen
Type
5-wire analog resistive
Interface
RS-232 and USB
Light Transmission
Above 75%
OS Support
Windows XP, Vista,7, 8,10,XPe and Linux
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Humidity (Storage)
10 ~ 90% non-condensing
IP Rating
Front panel is IP66 compliant
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
