Advantech IMC-574I-SFP Managed Hardened Media Converter, 1000Mbps, 2xSFP (also known as IE-Multiway 854-11121)
- Brand: Advantech
- MPN: IMC-574I-SFP
- Part #: IPCAVH220859

Product URL: https://www.pbtech.co.nz/product/IPCAVH220859/Advantech-IMC-574I-SFP-Managed-Hardened-Media-Conv
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features

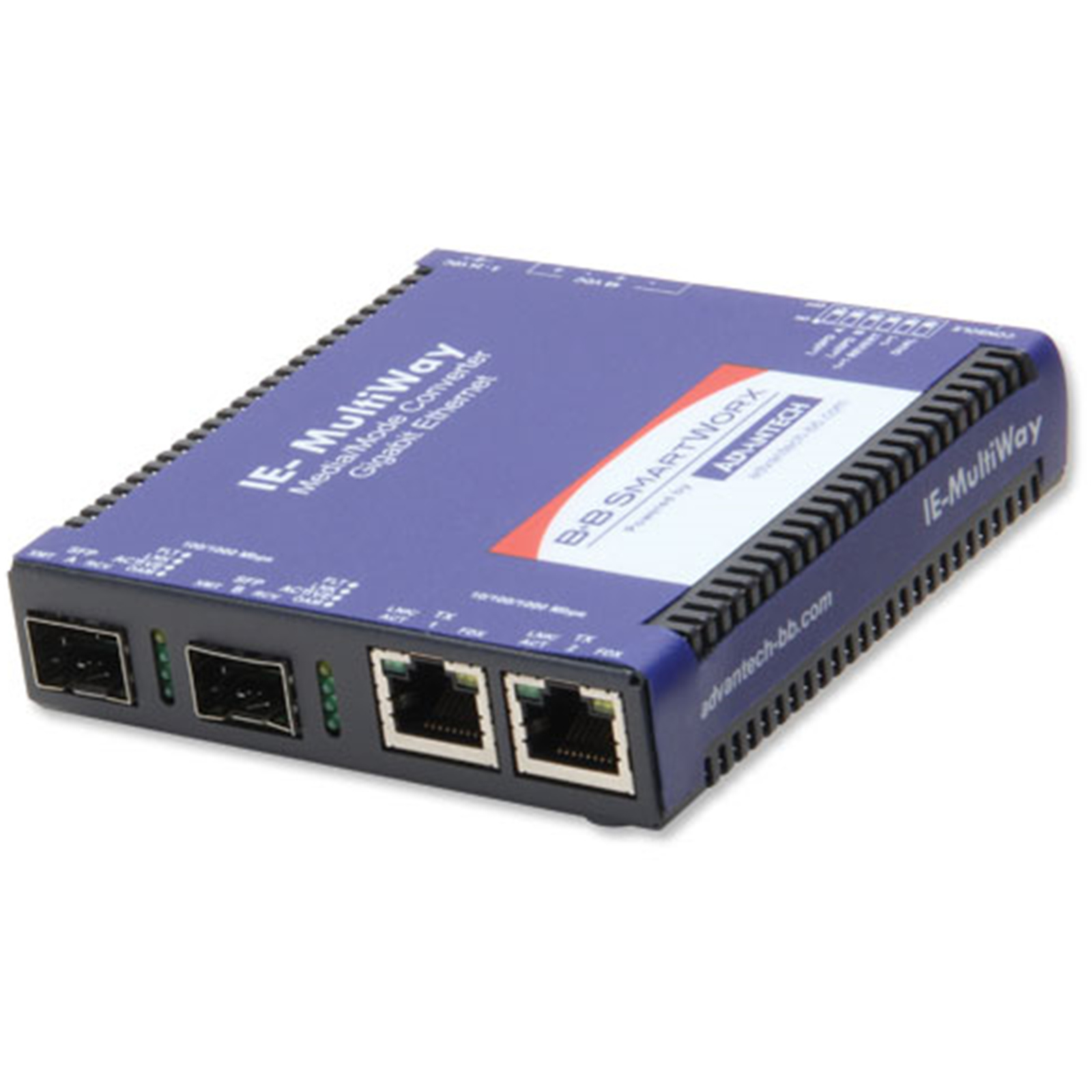

The IMC-574I is a value-based, managed Gigabit Ethernet solution is ideal for use in fiber infrastructure. The IMC-574I features two SFP ports and two fixed 10/100/1000Base-T copper ports. There are four distinct DIP switch selectable configurations that feature the IMC-574I as a 1+1 uplink port in revertive mode, a 1+1 uplink protection in non-revertive mode, a 4-port Gigabit switch, and a dual copper-to-fiber SFP media/mode converter (two Gigabit fiber media converters in one).
The term "1+1" refers to line protection where identical information is transmitted on two lines. The receiver chooses its communication line based on the revertive or non-revertive configuration. When a fault is detected on the active line, the traffic is switched to the redundant line. In non-revertive mode, data is not returned to the original line unless the backup line fails or is disconnected. Once the original line is no longer in a fault condition, data can be returned to the original line.
- Supports SNMP for management applications
- Compatible with a variety of SRP modules
- Operates in a broad temperature range
- Management: SNMP v1/v2c/v3, WEB, standard MIB, and private MIB
- Provides RS-232 CLI (command line interface) console port
- Supports Link Fault Pass Through (LFPT)
For more information: https://advdownload.advantech.com/productfile/PIS/IMC-574I-SFP-PS/Product%20-%20Datasheet/IMC-574I-SFP-PS20190424205510.pdf
Specifications
Ethernet Communication
Fiber Port Number
2
RJ-45 Port Number
2
Fiber Transmission Speed
10/100/1000 Mbps
Fiber Port Optical Mode
Various
Fiber Transmission Wavelength
Various
Fiber Port Connector Type
SFP cage
PoE Information
PoE Port Number
0
Power
Power Input (DC)
48 VDC
Mechanism

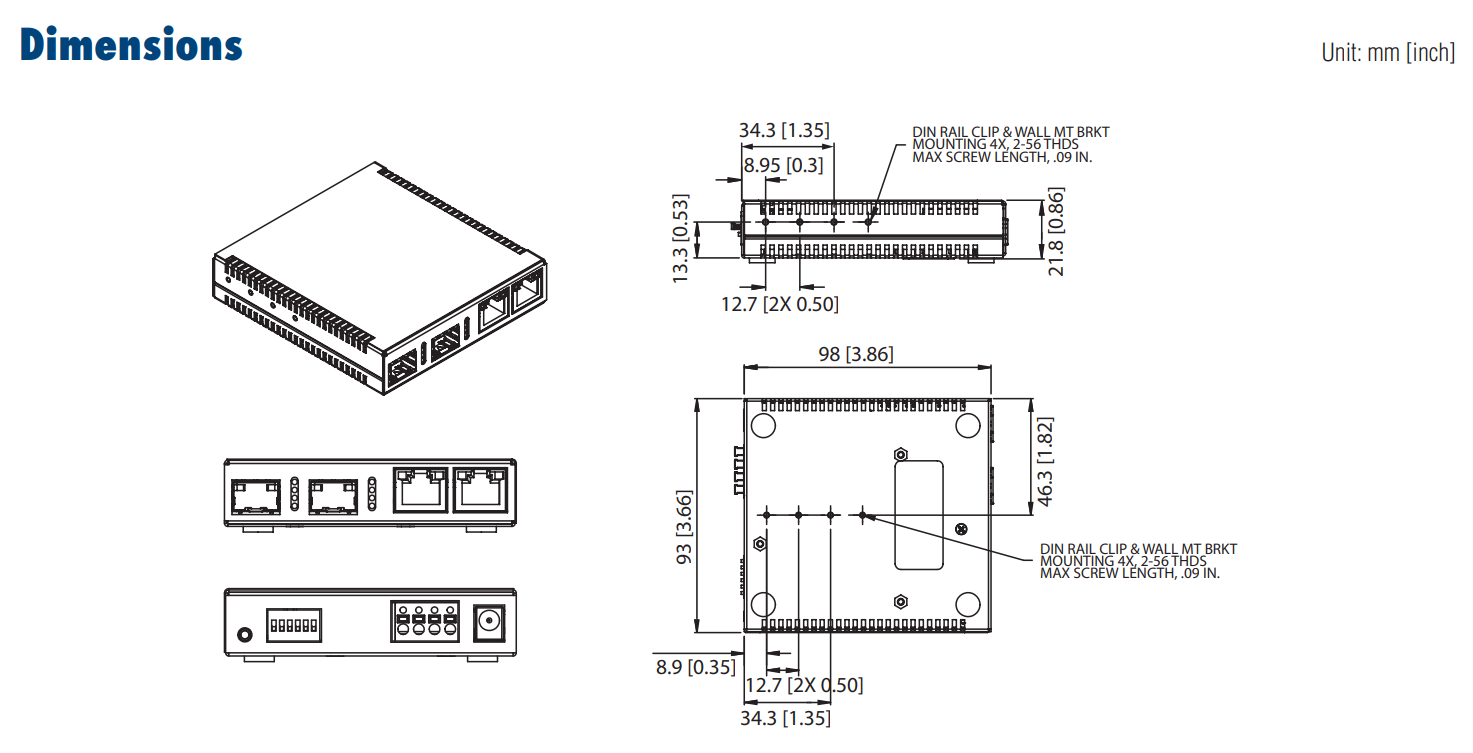

Dimensions (W x H x D)
9.38 x 2.2 x 9.94 cm (3.66 x 0.86 x 3.86 in.)
Weight
0.45 kg (1.0 lb)
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10~95% (non-condensing)
Certification
Safety
UL/cUL
EMC
CE, FCC Class A
