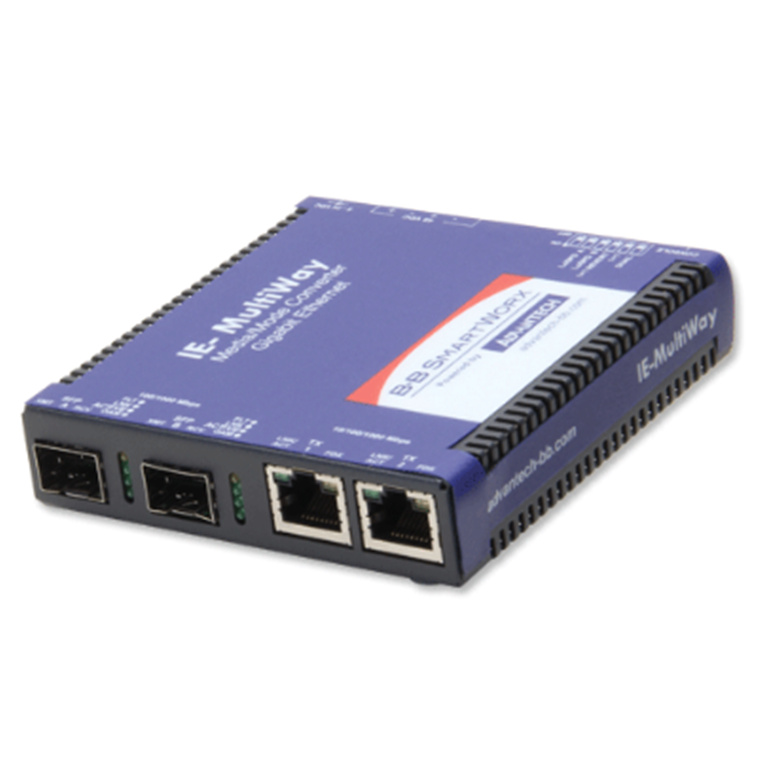

Advantech IMC-574I-SFP-PS Managed Hardened Media Converter, 1000Mbps, 2xSFP, AC adapter (also known as IE-Multiway 858-11121)
Advantech IMC-574I-SFP-PS Managed Hardened Media Converter, 1000Mbps, 2xSFP, AC adapter (also known as IE-Multiway 858-11121)
- Brand: Advantech
- MPN: IMC-574I-SFP-PS
- Part #: IPCAVH220860
- UPC:
- Brand: Advantech
- MPN: IMC-574I-SFP-PS
- Part #: IPCAVH220860
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech IMC-574I-SFP-PS Managed Hardened Media Converter, 1000Mbps, 2xSFP, AC adapter (also known as IE-Multiway 858-11121)
- Brand: Advantech
- MPN: IMC-574I-SFP-PS
- Part #: IPCAVH220860
Product URL: https://www.pbtech.co.nz/product/IPCAVH220860/Advantech-IMC-574I-SFP-PS-Managed-Hardened-Media-C
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
The IMC-574I is a value-based, managed Gigabit Ethernet solution is ideal for use in fiber infrastructure. The IMC-574I features two SFP ports and two fixed 10/100/1000Base-T copper ports. There are four distinct DIP switch selectable configurations that feature the IMC-574I as a 1+1 uplink port in revertive mode, a 1+1 uplink protection in non-revertive mode, a 4-port Gigabit switch, and a dual copper-to-fiber SFP media/mode converter (two Gigabit fiber media converters in one).
The term "1+1" refers to line protection where identical information is transmitted on two lines. The receiver chooses its communication line based on the revertive or non-revertive configuration. When a fault is detected on the active line, the traffic is switched to the redundant line. In non-revertive mode, data is not returned to the original line unless the backup line fails or is disconnected. Once the original line is no longer in a fault condition, data can be returned to the original line.
- Supports SNMP for management applications
- Compatible with a variety of SRP modules
- Operates in a broad temperature range
- Management: SNMP v1/v2c/v3, WEB, standard MIB, and private MIB
- Provides RS-232 CLI (command line interface) console port
- Supports Link Fault Pass Through (LFPT)

Specifications
MPN
IMC-574I-SFP-PS
Technical
Plug-and-Play Operation
2 x RJ-45 and 2 x SFP ports (SFP sold separately)
IEEE 802.3u 100Base-TX, 1000Base-T over twisted pair
IEEE 802.3u 100Base-FX, 1000Base-X
Supports Jumbo Frames up to 10,240 bytes
Auto Negotiation, Auto-Cross for MDI/MDIX
Supports diagnostic LEDs
1+1 uplink protection (<50 mSecs)
IEEE 802.3ah, IEEE 802.3ag
Y.1731
SFP-MSA Standard
Environment
Operating Temperature w/ AC Input
-10 to +50 °C (+14 to +122 °F)
Operating Temperature w/ DC Input
-40 to +85 °C (-40 to +185 °F)
Storage Temperature
-45 to +85 °C (-49 to +185 °F)
Operating Humidity
10 ~ 95% (non-condensing)
MTBF
522,644 Hours
Mechanical
Dimensions (H x W x D)
2.2 x 9.38 x 9.94 cm (0.86 x 3.66 x 3.86 in)
Weight
0.45 kg (1.0 lb)
Power
AC input
100 - 240V AC, 50-60Hz, 0.48A
DC input
48V DC
Certifications
FCC Class A
UL/cUL, CE
