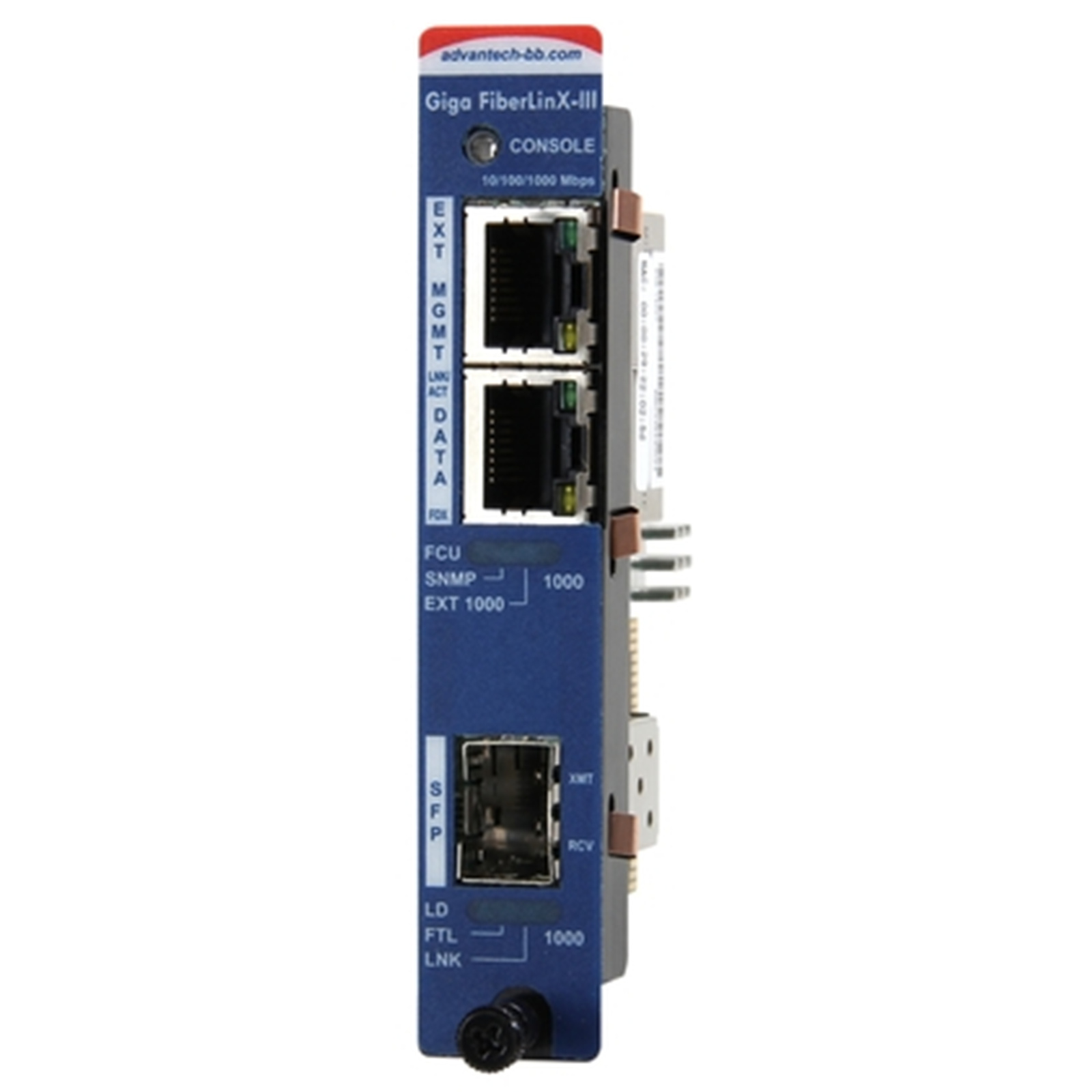

Advantech IMC-782-SFP Managed Modular Media Converter - 1000Mbps SFP (also known as iMcV 856-14201)
Advantech IMC-782-SFP Managed Modular Media Converter - 1000Mbps SFP (also known as iMcV 856-14201)
- Brand: Advantech
- MPN: IMC-782-SFP
- Part #: IPCAVH220945
- UPC:
- Brand: Advantech
- MPN: IMC-782-SFP
- Part #: IPCAVH220945
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Advantech IMC-782-SFP Managed Modular Media Converter - 1000Mbps SFP (also known as iMcV 856-14201)
- Brand: Advantech
- MPN: IMC-782-SFP
- Part #: IPCAVH220945
Product URL: https://www.pbtech.co.nz/product/IPCAVH220945/Advantech-IMC-782-SFP-Managed-Modular-Media-Conver
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
The IMC-782-SFP media converter connects a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines 10/100/1000Mbps to Gigabit fiber media conversion with an advanced feature set including OAM (operation, administration, and management), extra-tagging, and Ethernet type control functions for network management and troubleshooting. Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a versatile Gigabit solution.
- A single-wide module that allows maximum use of slots in multi-port chassis
- Supports OAM and VLAN
- Supports Link Fault Pass Through (LFPT)
- The SFP port supports both copper and fiber SFPs
- SNMP manageable
- Provides a RS-232 CLI (command line interface) console port
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance.

Specifications
Technical
Supports Gigabit copper and fiber SFPs
IEEE 802.3u, 802.3ab, 802.3z
SFP-MSA compliant
Supports 802.3ah OAM (Operation, Administration & Management)
802.1ad Extra Tagging (Q-in-Q)
802.3 1Q VLAN
AutoCross for MDI/MDIX
Supports diagnostic LEDs
Hot-swappable architecture
SNMP V1 and V2c compatible
Includes loopback test modes
Supports Link Fault Pass Trough
Operating Temperature
0 to +50 °C (+32 to +122 °F) (IMC-782-SFP)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 ~ 10,000 ft. altitude
MTBF
522,644 Hours
Dimensions (H x W x D)
10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in)
Weight
0.136 kg (0.30 lb) (IMC-782-SFP)
Certifications
FCC Class A
CE, UL/cUL
CSA (IMC-782-SFP)
