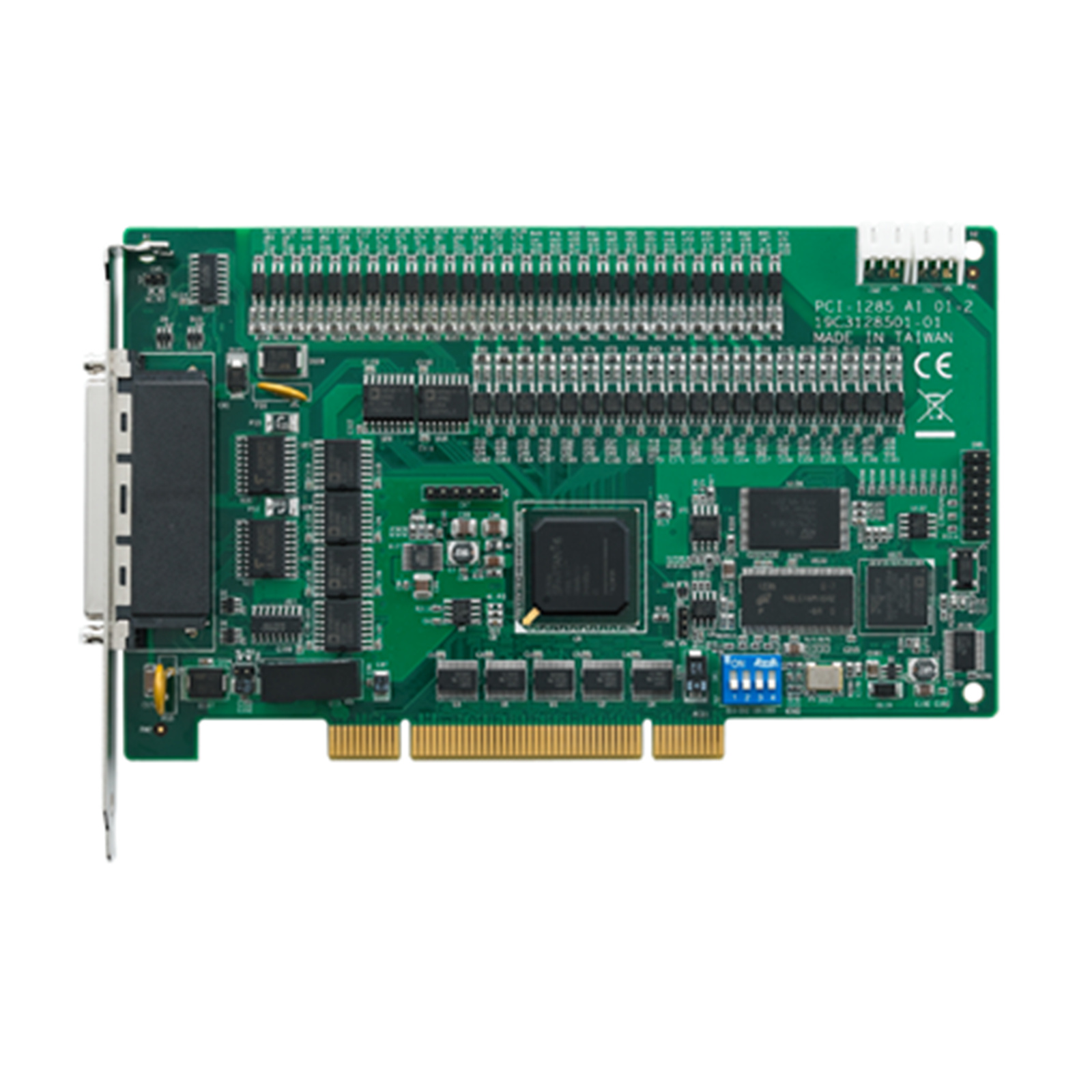

Advantech PCI-1285V-AE Value DSP-Based 8-Axis Motion Control Universal PCI Card

  • Brand: Advantech
  • MPN: PCI-1285V-AE
  • Part #: IPCAVH220968
  • UPC:
PB Tech price
$ 1,901 .13 $ 2,186 .30
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 21 Oct When will I receive it?
$1,901.13  +GST
$2,186.30

Finance from $19.82 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

Full DSP-based 8-Axis Motion Control Universal PCI Card

- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer (10K points) for trajectory planning which is designed in DSP
- Supports E-Gear, and helical interpolation
- Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
- Hardware emergency input
- Watchdog timer
- Position latch
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
- Programmable interrupt
- Supports gantry mode by semi-closed loop pulse train control
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

Specifications

Counter/Encoder Input

Counting Range

32-bit

Encoder Type and Interface

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

0~1 VDC for low; 3.5~5 VDC for high

Input Type

Quadrature (A/B phase) or up/down

Max. Input Frequency

10 MHz under x4 A/B phase mode

Frequency

Signal Input

Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC

General

Connectors

2 x 100-pin mini-SCSI female connector

Humidity (Operating)

5~95% RH (non-condensing)

Humidity (Storage)

5~95% RH (non-condensing)

Local I/O

General Input Signal

Input voltage: 24 VDC Max.
Input delay: 100 us Max. (isolation delay)
Signal:
EMG (emergency stop)
ORG, LMT+, LMT-
INPOS (in position signal)
LTC (counter latch)
RDY (servo ready)
ALARM (servo alarm)

General Output Signal

Output voltage: Open collect 24 VDC Max
Output delay: 100 us Max. (isolation delay)
Sink current: 100 mA per channel
Signal:
CMP (position compare in range output)
SVON (servo on)
RALM (reset driver alarm)
ERC (counter clear signal)

Pulse Type Motion Control

Interpolation

2 to 8-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation

Max. Output Speed

5 Mbps

Motor Driver Support

Pulse-type servo/stepping

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Step Count Range

±2, 147, 483, 646

Velocity Profiles

T-Curve, S-Curve

Manufacturer Part No:
PCI-1285V-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220968
Product Model:
PCI-1285V-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
