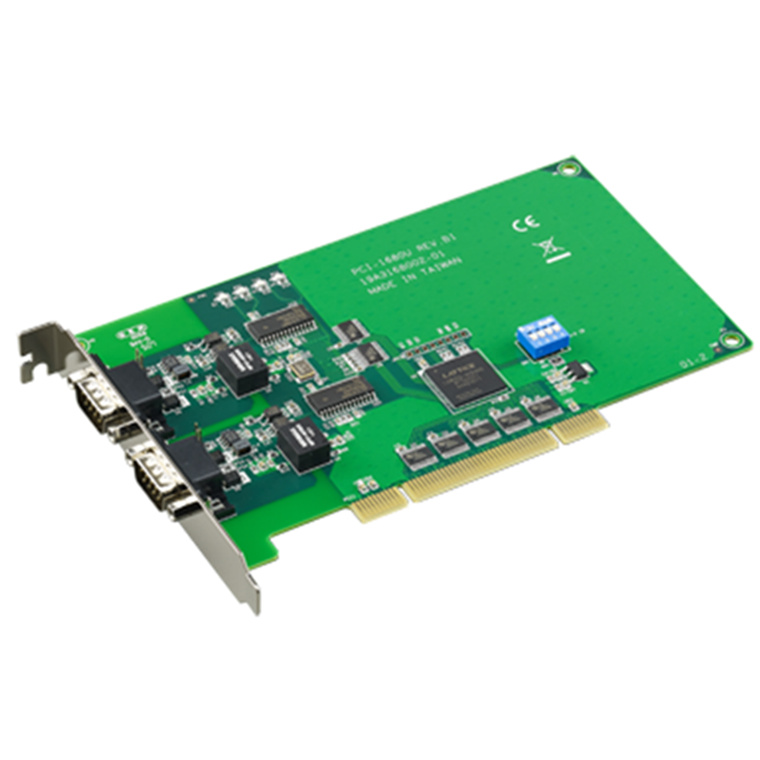

Advantech PCI-1680U-BE 2-port CAN-bus Universal PCI Card with Isolation
Advantech PCI-1680U-BE 2-port CAN-bus Universal PCI Card with Isolation
- Brand: Advantech
- MPN: PCI-1680U-BE
- Part #: IPCAVH220977
- UPC:
- Brand: Advantech
- MPN: PCI-1680U-BE
- Part #: IPCAVH220977
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech PCI-1680U-BE 2-port CAN-bus Universal PCI Card with Isolation
- Brand: Advantech
- MPN: PCI-1680U-BE
- Part #: IPCAVH220977

Product URL: https://www.pbtech.co.nz/product/IPCAVH220977/Advantech-PCI-1680U-BE-2-port-CAN-bus-Universal-PC
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
2-port CAN-bus Universal PCI Card with Isolation
- Operates two separate CAN networks simultaneously
- High speed transmission up to 1 Mbps
- Optical isolation protection of 1000 VDC
- Windows DLL library and examples included
- I/O address automatically assigned by PCI PnP
- Supports Windows CE5/CE6/XP/7/8.1/10 and Linux drivers
Specifications
General
Bus Type
PCI Express V1.0/Universal PCI
Certification
CE, FCC
Connectors
2 x DB9, male
Ports
2
Power Consumption
3.3 V @ 600 mA (typical)
Communication
CAN Controller
NXP SJA-1000
CAN Transceiver
NXP TJA1051T
Signal Support
CAN_H, CAN_L
Protocol
CAN 2.0 A/B
Data Transfer Rate
Programmable up to 1 Mbps
CAN Frequency
16MHz
Protection
Isolation Protection
2,500 VDC
Mechanical and Environmental
Operating Temperature
0 ~ 70 °C (32 ~ 158 °F) (refer to IEC 60068-2-1, 2)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
5 ~ 95% relative humidity, non-condensing
Dimensions (L x H)
168 x 111 mm (6.6" x 4.4")
