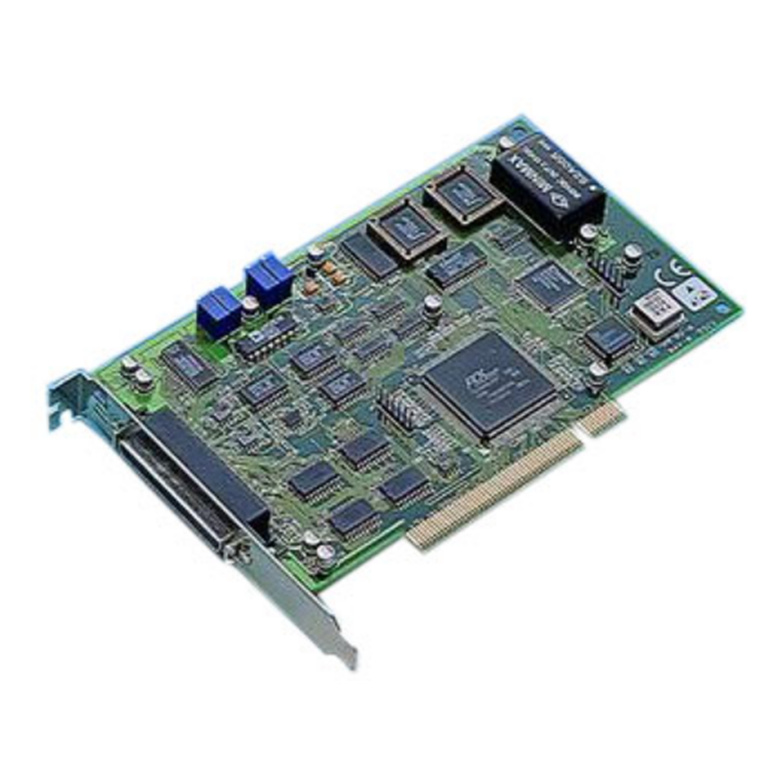

Advantech PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
Advantech PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- Brand: Advantech
- MPN: PCI-1711U-CE
- Part #: IPCAVH220985
- UPC:
- Brand: Advantech
- MPN: PCI-1711U-CE
- Part #: IPCAVH220985
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- Brand: Advantech
- MPN: PCI-1711U-CE
- Part #: IPCAVH220985

Product URL: https://www.pbtech.co.nz/product/IPCAVH220985/Advantech-PCI-1711U-CE-100-kSs-12-bit-16-ch-Univer
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- 16-ch single-ended analog input
- Cost-effective
- 12-bit A/D converter, with up to 100 kHz sampling rate
- 16 single-ended analog inputs
- Programmable gain
- 16 digital inputs and 16 digital outputs
- 16-ch digital input and 16-ch digital output
- Two 12-bit analog output channels
- Onboard FIFO memory (1,024 samples)
- Onboard FIFO memory (1024 samples)
- Automatic channel/gain scanning
- Onboard programmable counter
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1711/Product%20-%20Datasheet/PCI-1711U_UL20170609231819.PDF
Specifications
Analog Input
Channels
16
Input Range
±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V
Resolution(Bits)
12-bit
Sampling Rates(S/s)
100 KS/s (sum)
Analog Output
Channels
2
Output Ranges
0~5 V, 0~10 V
Resolution
12-bit
Update Rate(S/s)
Static update
Counter/Encoder Input
Channels
2
Counting Range
16-bit
Digital Input
Channels
16 (TTL)
Digital Output
Channels
16 (TTL)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
