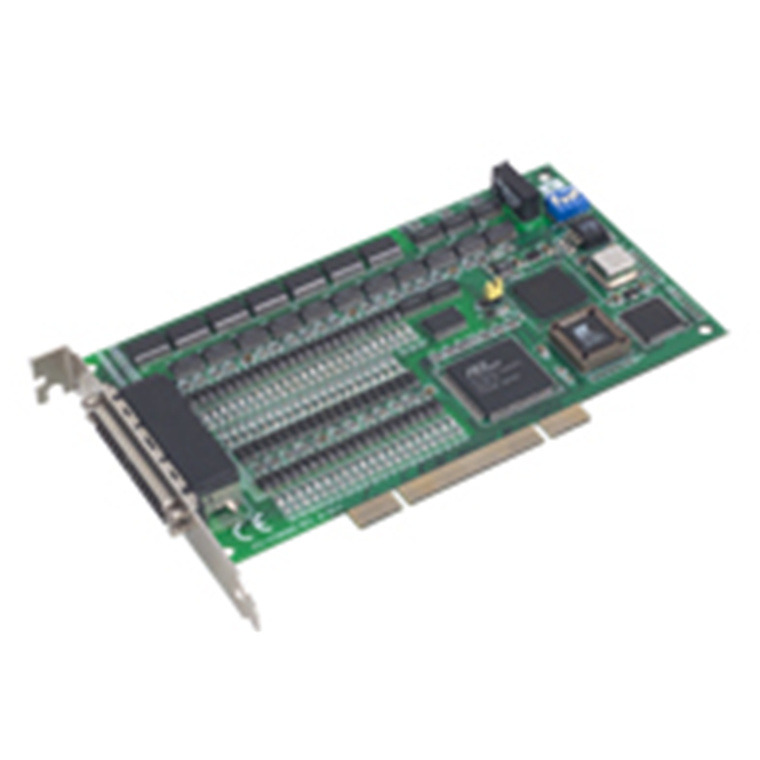

Advantech PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card
Advantech PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card
- Brand: Advantech
- MPN: PCI-1758UDO-BE
- Part #: IPCAVH221042
- UPC:
- Brand: Advantech
- MPN: PCI-1758UDO-BE
- Part #: IPCAVH221042
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card
- Brand: Advantech
- MPN: PCI-1758UDO-BE
- Part #: IPCAVH221042

Product URL: https://www.pbtech.co.nz/product/IPCAVH221042/Advantech-PCI-1758UDO-BE-128-ch-Isolated-Digital-O
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 128 isolated digital output channels
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink current for isolated output channels (200 mA max./channel)
- Current protection for each port
- BoardID™ switch
- Output status read-back
- Digital output value retained after hot system reset
- Programmable Power-up States
Specifications
MPN
PCI-1758UDO-BE
128-ch Isolated DO Universal PCI Card
Isolated Digital Input
Channels
128
Input Voltage
Logic 0: ± 2.5 V
Logic 1: -25 V ~ -5 V or 5 V ~ 25 V
Interrupt Capable Ch.
128
Isolation Protection
2,500 VDC
Opto-Isolator Response
100 µs
Input Resistance
3 kOhm
Isolated Digital Output
Channels
128
Output Type
Sink (NPN)
Isolation Protection
2,500 VDC
Output Voltage
5 ~ 40 VDC
Sink Current
200mA/ch (sink) @25 °C
150mA/ch (sink) @60 °C
Opto-isolator Response
100 µs
General
Bus Type
Universal PCI V2.2
I/O Connectors
2 x mini-SCSI HDRA-E100 female connector
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical
5V @ 50 mA,
12V @ 20 mA
Max.
5V @ 385 mA,
12V @ 250 mA
Operating Temperature
0 ~ 60°C (32 ~ 140°F) (IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% non-condensing
