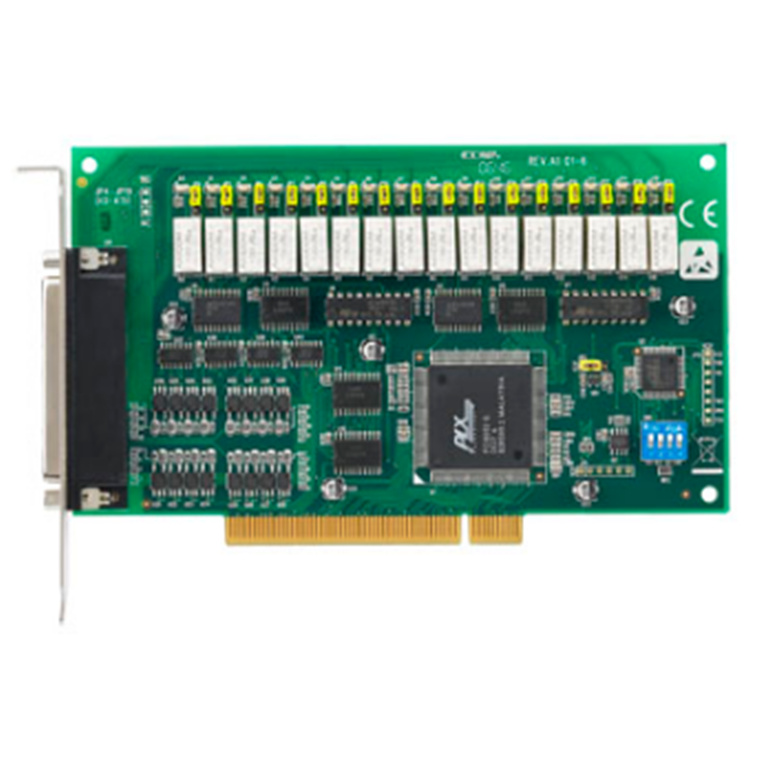

Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050
- UPC:
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050

Product URL: https://www.pbtech.co.nz/product/IPCAVH221050/Advantech-PCI-1762-BE-16-ch-Relay-and-16-ch-Isolat
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 16 relay output channels and 16 isolated digital input channels
- LED indicators to show activated relays
- Jumper selectable Form A/Form B-type relay output channel
- Wide input range (10 ~ 50 VDC)
- Retain relay output values when hot system reset
- High-voltage isolation on input channels (2,500 VDC)
- High ESD protection (2,000 VDC)
- High over-voltage protection (70 VDC)
- Output status read-back
- Interrupt handling capability
- High-density DB-62 connector
- BoardID™ switch
Specifications
MPN
PCI-1762-BE
Digital Input
Channels
16 (Isolated)
Isolation Protection
2,500 VDC
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Relay Output
Channels
16 Form A
Contact Rating (Resistive)
0.5 A @ 30 VDC, 0.5 A @ 250 VAC
