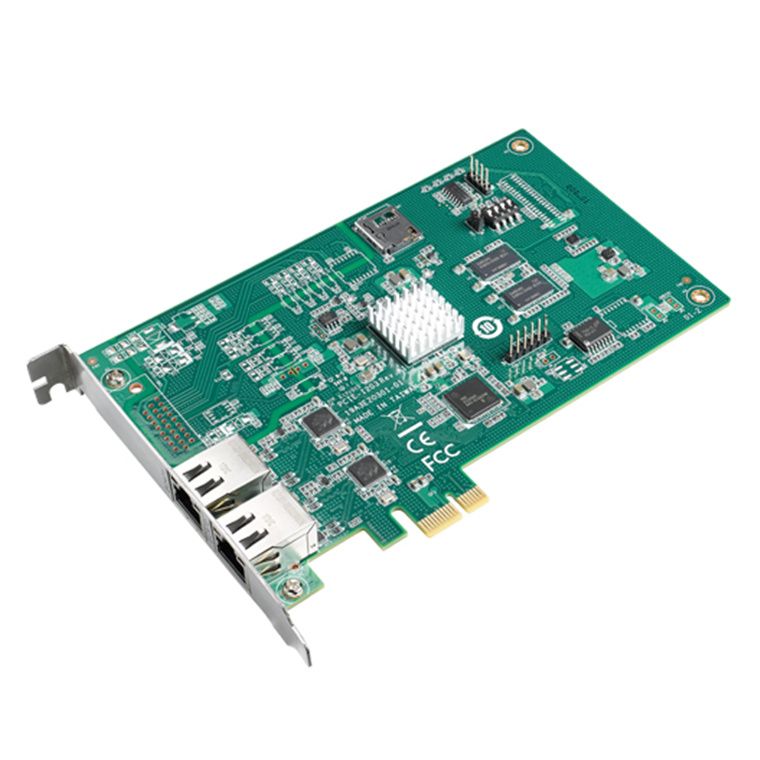

Advantech PCIE-1203IO-00AE EtherCAT IO MDevice PCIE Card
- Brand: Advantech
- MPN: PCIE-1203IO-00AE
- Part #: IPCAVH221056

Product URL: https://www.pbtech.co.nz/product/IPCAVH221056/Advantech-PCIE-1203IO-00AE-EtherCAT-IO-MDevice-PCI
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 667MHz dual-core ARM processor
- 2 x EtherCAT ports for 250/200us cycle time
- Up to DI 1024 CH / DO 1024 CH / AI 128 CH / AO 128 CH IO Control
- Diagnostics for fast error handling can trace command and error message
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1203IO/file/PCIE-1203IO_DS(022023)20230307113114.pdf
Specifications
MPN
PCIE-1203IO-00AE
EtherCAT IO MDevice PCIE Card
EtherCAT
Number of Rings
2 (IO x 1, Fast IO x 1)
Cable Type
CAT5 UTP/STP Ethernet cable and above
Cycle Time
IO: up to 250us
Fast IO: 200 us
Communication IO Slave
1024-CH DI and 1024-CH DO
128-CH AI and 128-CH AO
General
Bus Type
PCI Express
Certification
CE, FCC Class A
Connectors
2 x RJ45
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
5 VDC @ 0.5 A typical
Humidity
5 ~ 95% RH, non-condensing (IEC 60068-2-3)
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-20 ~ 85°C (-4 ~ 185°F)
