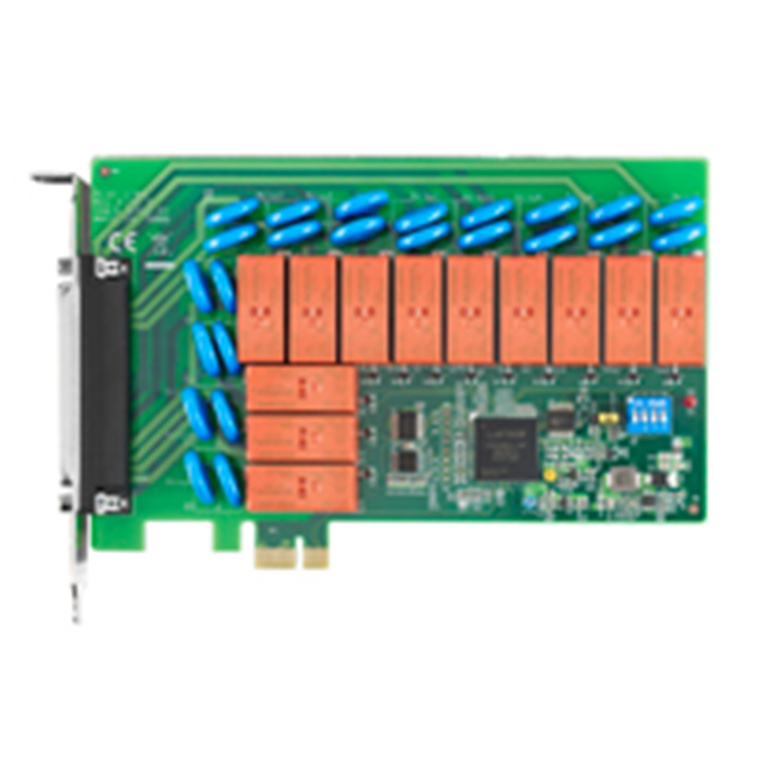

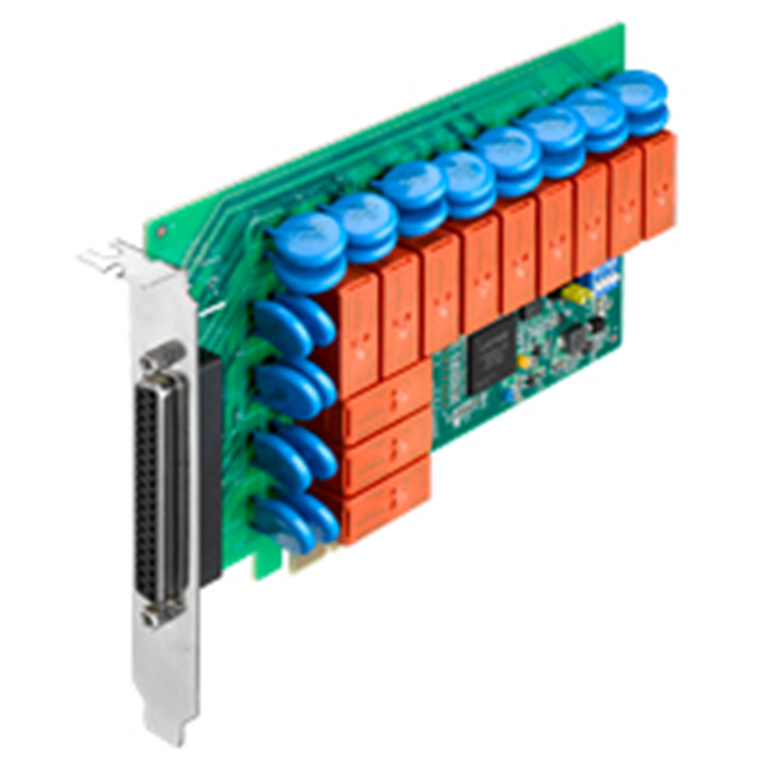

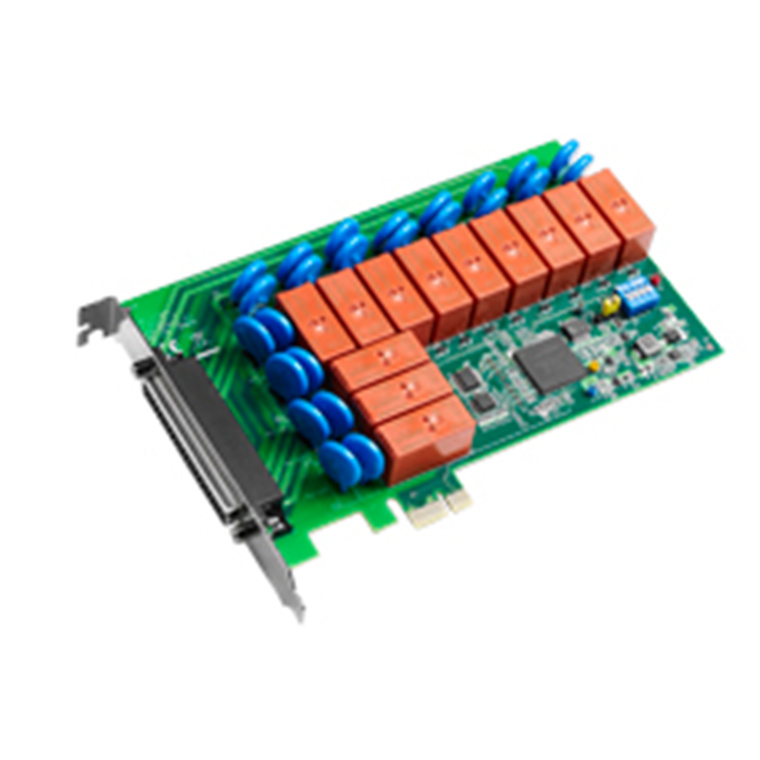

Advantech PCIE-1765-AE 12-ch Relay PCIE Card
Advantech PCIE-1765-AE 12-ch Relay PCIE Card
- Brand: Advantech
- MPN: PCIE-1765-AE
- Part #: IPCAVH221094
- UPC:
- Brand: Advantech
- MPN: PCIE-1765-AE
- Part #: IPCAVH221094
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCIE-1765-AE 12-ch Relay PCIE Card
- Brand: Advantech
- MPN: PCIE-1765-AE
- Part #: IPCAVH221094

Product URL: https://www.pbtech.co.nz/product/IPCAVH221094/Advantech-PCIE-1765-AE-12-ch-Relay-PCIE-Card
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 12 relay output channels
- LED indicators to show activated relays
- 12 Form C-type relay output channels
- Output status read-back
- Keep relay output values after emergency reboot
Specifications
MPN
PCIE-1765-AE
12-ch Relay PCIe Card
Relay Output
Channels
12
Relay Type
SPDT , Form C
Contact Rating
2A @ 250 VAC , 2A @ 30 VDC
Max. switching power
500VA, 60W
Max. switching voltage
400 VAC, 30 VDC
Breakdown voltage
1000 VAC
Operate Time
Typical: 7ms
Release Time
Typical: 2ms
Resistance
Contact: 100m Ohm max.
Life Expectancy
30 x 106 cycles min. @ 2A/250 VAC
General
I/O Connectors
1 x DB37 female connector
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Power Consumption
Typical: 3.3V @ 250mA
Max. : 3.3V @ 2500mA
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95 % RH, non-condensing
