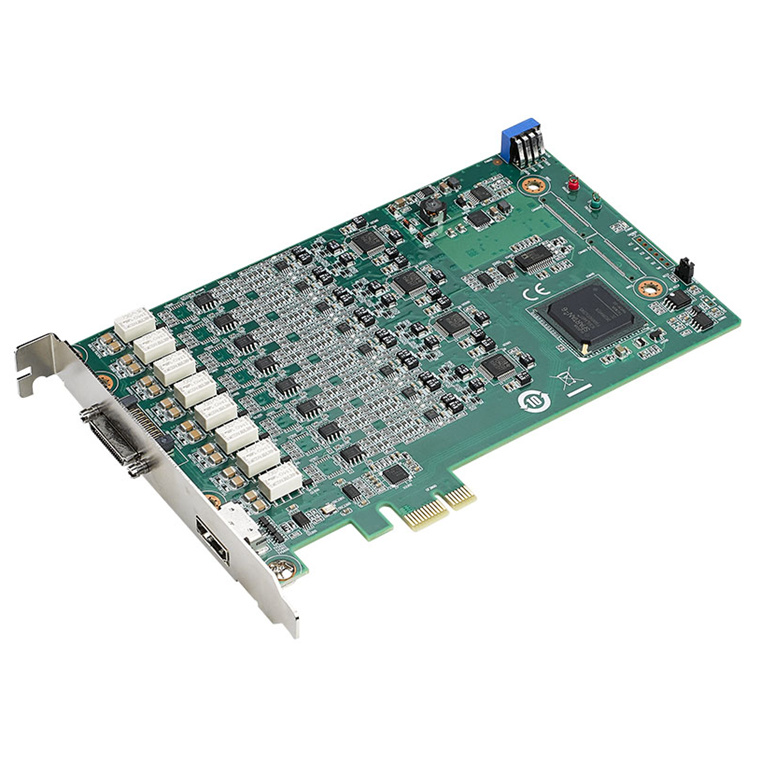

Advantech PCIE-1802L-AE 216 kS/s, 24-bit, 4-ch Dynamic Signal Acquisition PCIE Card
Advantech PCIE-1802L-AE 216 kS/s, 24-bit, 4-ch Dynamic Signal Acquisition PCIE Card
- Brand: Advantech
- MPN: PCIE-1802L-AE
- Part #: IPCAVH221096
- UPC:
- Brand: Advantech
- MPN: PCIE-1802L-AE
- Part #: IPCAVH221096
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCIE-1802L-AE 216 kS/s, 24-bit, 4-ch Dynamic Signal Acquisition PCIE Card
- Brand: Advantech
- MPN: PCIE-1802L-AE
- Part #: IPCAVH221096

Product URL: https://www.pbtech.co.nz/product/IPCAVH221096/Advantech-PCIE-1802L-AE-216-kSs-24-bit-4-ch-Dynami
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 8/4 simultaneously sampled analog inputs, up to 216 kS/s
- 24-bit resolution ADCs with 115 dB dynamic range
- Wide input range of ±0.2 ~ 10 V
- Built-in anti-aliasing filter
- Software-configurable 4/10 mA integrated electronic piezoelectric (IEPE) excitation currents
- Software-selectable AC/DC coupling
- Full automatic calibration
- Multiple card synchronization
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1802/file/PCIE-1802_L_DS(010720)20200115172635.pdf
Specifications
MPN
PCIE-1802L-AE
4-ch, 24-bit, 216 kS/s dynamic signal acquisition PCI Express card
Analog Input
Channels
4 (simultaneous sampling differential or 50 O pseudo-differential)
Resolution
24 bits (delta sigma)
Max. Sampling Rate
100 S/s to 216 kS/s (with resolution = 363.80 µS/s)
Input Coupling
AC/DC, selectable per channel
AC Cut-Off Frequency
0.727 Hz (-3 dB)
Trigger Modes
Start, Delayed Start,
Stop, Delayed Stop
Input Range
±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Offset Error
< ±1 mV
Gain Error
< ±0.2 %
Total Harmonic Distortion (THD)
-100 dB
Total Harmonic Distortion Plus Noise (THD+N)
-98 dB
Dynamic Range
115 dB
IEPE Excitation
0, 4, or 10 mA, selectable per channel
Data Transfer
Direct memory access (DMA)
Multi-Card Support
For synchronizing more than 8 analog input channels
Digital Input/Output
DI Channels
1 (interrupt)
DO Channels
2
General
Bus Type
PCI Express x1
I/O Connectors
CN600 36-pin mini SCSI (for analog input)
CN601 HDMI (for clock, trigger, and DI/Os)
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-40 ~ 70 °C (-40 ~ 158 °F)
Storage Humidity
5 ~ 95 % RH, non-condensing
