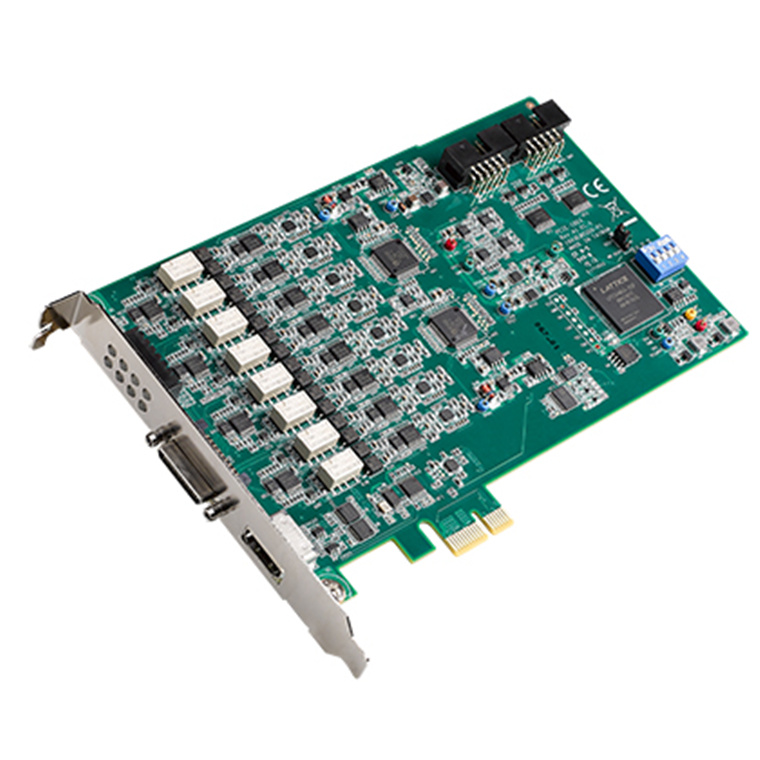

Advantech PCIE-1803-A1E 8-ch, 24-Bit, 128kS/s PCIE DSA Card
Advantech PCIE-1803-A1E 8-ch, 24-Bit, 128kS/s PCIE DSA Card
- Brand: Advantech
- MPN: PCIE-1803-A1E
- Part #: IPCAVH221097
- UPC:
- Brand: Advantech
- MPN: PCIE-1803-A1E
- Part #: IPCAVH221097
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PCIE-1803-A1E 8-ch, 24-Bit, 128kS/s PCIE DSA Card
- Brand: Advantech
- MPN: PCIE-1803-A1E
- Part #: IPCAVH221097

Product URL: https://www.pbtech.co.nz/product/IPCAVH221097/Advantech-PCIE-1803-A1E-8-ch-24-Bit-128kSs-PCIE-DS
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 8 simultaneously sampled analog inputs, up to 128 kS/s
- 24-bit resolution ADCs with -102 dB total harmonic distortion plus noise (THD+N)
- Wide input range of ±1 ~ 10 V
- Built-in anti-aliasing filter
- Low power consumption
- Software-selectable AC/DC coupling
- Full automatic calibration
- Multiple card synchronization
- Built-in software readable open-short indicator
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1803/file/PCIE-1803_DS(121422)20221214102629.pdf
Specifications
MPN
PCIE-1803-A1E
8-ch, 24-bit, 128 kS/s Dynamic Signal Acquisition PCI Express Card
Analog Input
Channels
8 (simultaneous sampling differential or 50 O pseudo-differential)
Resolution
24 bits (delta sigma)
Max. Sampling Rate
1kS/s to 128 kS/s (with resolution = 1.09 mS/s)
Input Coupling
AC/DC, selectable per channel
AC Cut-Off Frequency
0.796 Hz (-3 dB)
Trigger Modes
Start, Delayed Start,
Stop, Delayed Stop
Input Range
±1, ±2, ±5, ±10 V
Offset Error
< ±1 mV
Gain Error
< ±0.02 %
Total Harmonic Distortion (THD)
-113dB
Total Harmonic Distortion Plus Noise (THD+N)
-102dB
Dynamic Range
102dB
IEPE Excitation
2mA
Data Transfer
Direct memory access (DMA)
Multi-Card Support
For synchronizing more than 8 analog input channels
Sensor fault detection
Open/short/normal LED indicator for each channel, SW readable
Digital Input/Output
DI Channels
1 (interrupt)
DO Channels
2
General
Bus Type
PCI Express x1
I/O Connectors
36-pin mini SCSI (for analog input)
HDMI (for clock, trigger, and DI/Os)
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Operating Temperature
0 ~ 70 °C (32 ~ 158 °F)
Storage Temperature
-40 ~ 80 °C (-40 ~ 176 °F)
Storage Humidity
5 ~ 95 % RH, non-condensing
Power Consumption
+3.3 V @ 300 mA typ./350 mA max.
+12 V @ 200 mA typ./230 mA max.
