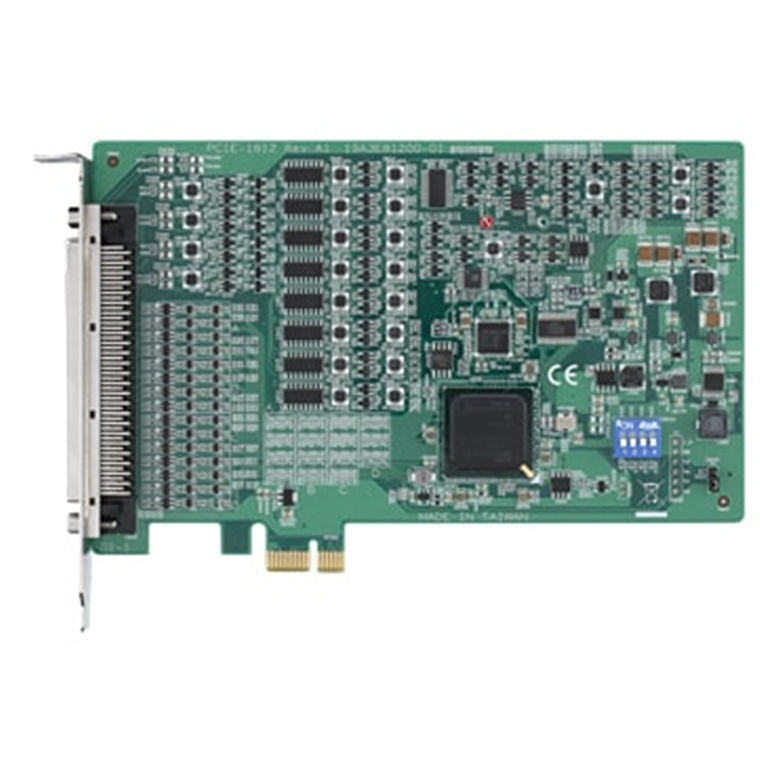

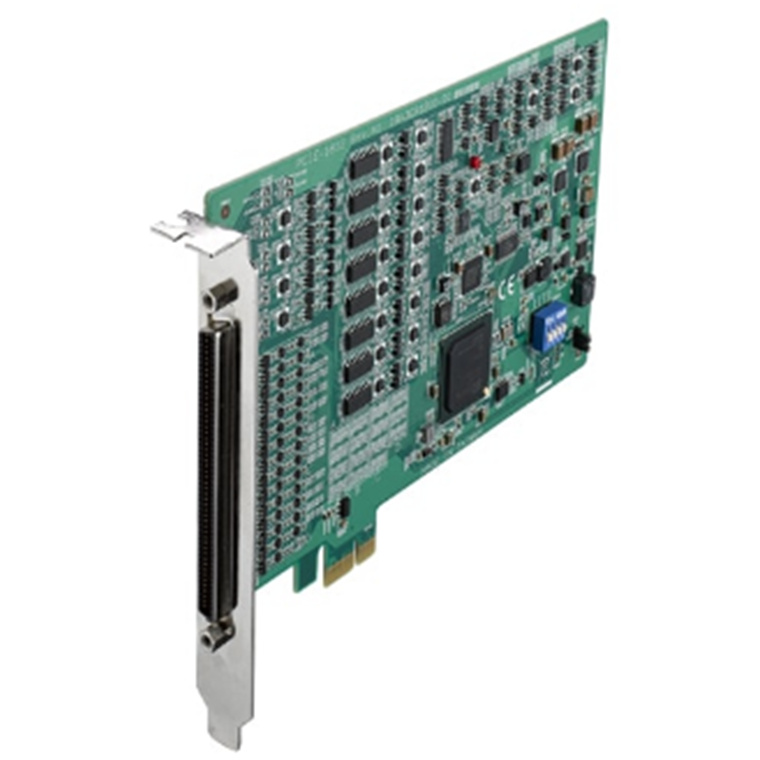

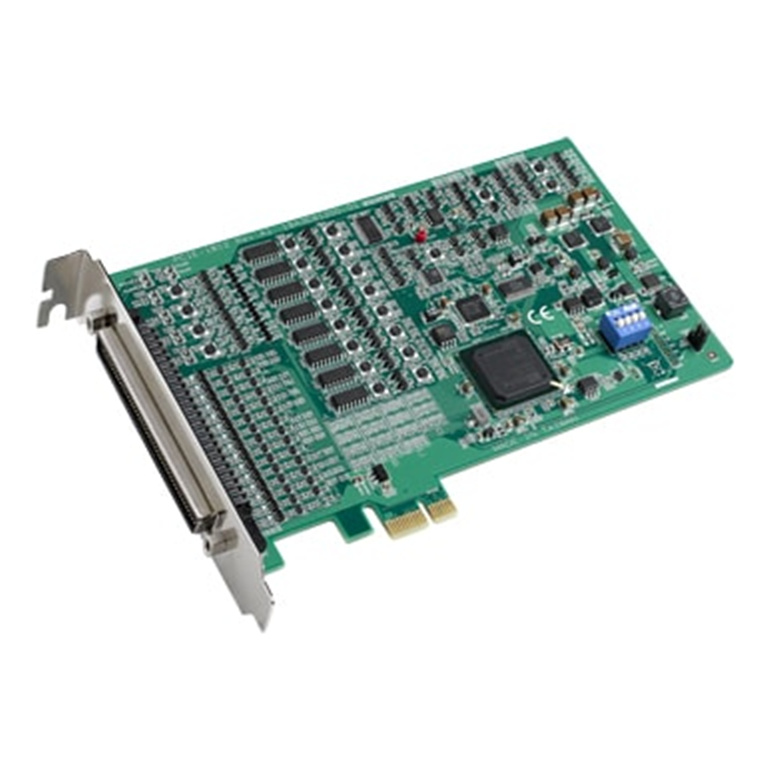

Advantech PCIE-1812-AE 250kS/s/ch, 16-bit, 8-ch, Multifunction PCIE Card
- Brand: Advantech
- MPN: PCIE-1812-AE
- Part #: IPCAVH221100
Product URL: https://www.pbtech.co.nz/product/IPCAVH221100/Advantech-PCIE-1812-AE-250kSsch-16-bit-8-ch-Multif
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10, 8 and 7
Specifications
MPN
PCIE-1812-AE
250 kS/s, 16-bit, 8-ch simultaneous sampling multifunction card
Analog Input
Channels
8
Input Range
±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Resolution(Bits)
16-bit
Sampling Rates(S/s)
250 KS/s (per channel)
Analog Output
Channels
2
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V
Resolution
16-bit
Update Rate(S/s)
3 MS/s
Counter/Encoder Input
Channels
4
Counting Range
32-bit
Mode
Counter (up/down, bi-direction, up, A/B Phase)
Digital Input
Channels
32 (TTL)
Digital Output
Channels
32 (TTL)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
