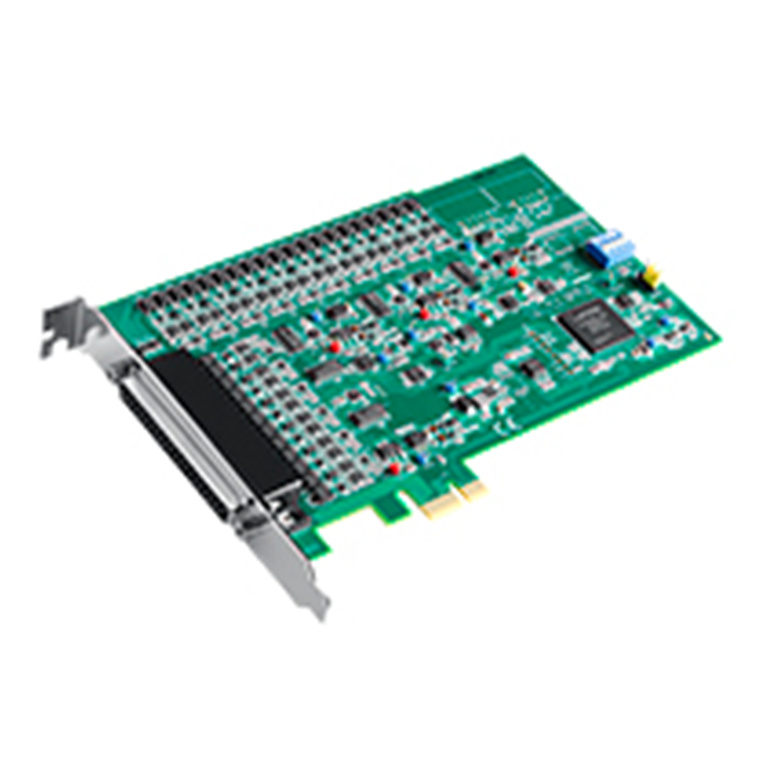

Advantech PCIE-1824-AE 16-bit ,32/16-ch Analog Output PCIE Card
Advantech PCIE-1824-AE 16-bit ,32/16-ch Analog Output PCIE Card
- Brand: Advantech
- MPN: PCIE-1824-AE
- Part #: IPCAVH221104
- UPC:
- Brand: Advantech
- MPN: PCIE-1824-AE
- Part #: IPCAVH221104
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O
Advantech PCIE-1824-AE 16-bit ,32/16-ch Analog Output PCIE Card
- Brand: Advantech
- MPN: PCIE-1824-AE
- Part #: IPCAVH221104
Product URL: https://www.pbtech.co.nz/product/IPCAVH221104/Advantech-PCIE-1824-AE-16-bit-3216-ch-Analog-Outpu
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
- 32/16 high-density analog output channels
- Flexible Output Range: ±10 V, 0 ~ 20 mA and 4 ~ 20 mA
- Synchronized output function
- Keep output values when hot system reset
- High ESD protection (2,000 VDC)
- Board ID switch
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1824/file/PCIE-1824_L_DS(011520)20200117164930.pdf
Specifications
MPN
PCIE-1824-AE
16-bit ,32-ch Analog Output PCI Express Card
Analog Output
Channels
32/16
Resolution
16 bits
Output configuration
Single-ended
Output range
±10 V, 0 ~ 20 mA, 4 ~ 20 mA (sink)
Voltage output error
Offset < ±1 mV, Gain < ±0.01 %*
Current output error
Offset < ±2.5 µA , Gain < ±0.05 %
Voltage output Load
>1 kO
Current output external power
< 30 V
Voltage output noise
0.2 mVRMS
Slew rate
0.7 V/µs
Settling time
100 µs (to ±0.01% of FSR)
Auto-calibration
Yes
General
I/O Connector type
1 x DB62 female connector
Dimensions
167 x 100 mm (6.6" x 3.9")
Power consumption
Typical: 3.3V @350mA, 12V @350mA
Max: 3.3V@ 370mA, 12V @ 1000mA
Operating temperature
0 ~ 60°C (32 ~ 140°F)
Storage temperature
-40 ~ 70°C (-40 ~ 158°F)
Storage humidity
5 ~ 95% RH (non-condensing)
Certifications
CE/FCC
