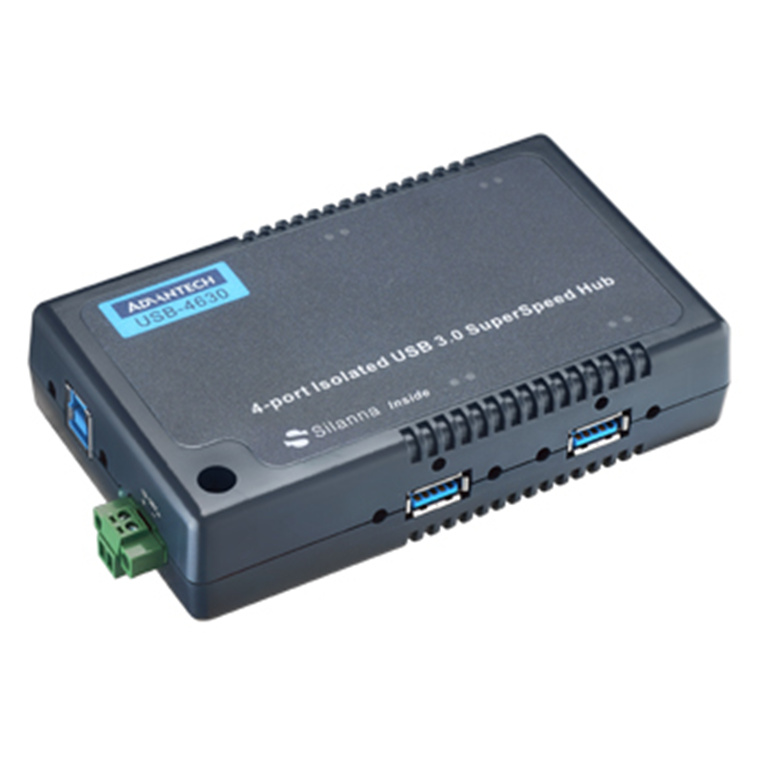

Advantech USB-4630-BE 4-Port SuperSpeed Isolated USB 3.0 Hub
Advantech USB-4630-BE 4-Port SuperSpeed Isolated USB 3.0 Hub
- Brand: Advantech
- MPN: USB-4630-BE
- Part #: IPCAVH221188
- UPC:
- Brand: Advantech
- MPN: USB-4630-BE
- Part #: IPCAVH221188
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Advantech USB-4630-BE 4-Port SuperSpeed Isolated USB 3.0 Hub
- Brand: Advantech
- MPN: USB-4630-BE
- Part #: IPCAVH221188

Product URL: https://www.pbtech.co.nz/product/IPCAVH221188/Advantech-USB-4630-BE-4-Port-SuperSpeed-Isolated-U
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- 2,500 VDC voltage isolation for upstream ports
- 4 x downstream USB 3.0 SuperSpeed™ ports
- Can be powered via a USB bus or 10 ~ 30 VDC external power source
- Level 4 ESD protection
- Power status and downstream port speed LED indicators
- The world's first isolated USB 3.0 SuperSpeed Hub
- Up to 5 Gbps transfer speed
- USB 3.0 lockable cable included (1m, A-Male to B-Male)
For more information: https://advdownload.advantech.com/productfile/PIS/USB-4630/file/USB-4620_4622_4630_DS(020623)20230206163017.pdf
Specifications
MPN
USB-4630-BE
4-port isolated USB 3.0 SuperSpeed™ hub
Connectivity
Ports
1 x Upstream (Type B)
4 x Downstream (Type A)
Compatibility
USB 3.0 SuperSpeed
Transfer Speed
5 Gbps shared by all downstream ports
Load Current
External power: 900 mA max. per port
USB bus power: 700 mA max. shared by all ports
General
Housing
Sheet Metal (SGCC)
Dimensions (L x W x H)
132 x 80 x 32 mm
(5.2" x 3.15" x 1.26")
Power Input
10 ~ 30 VDC
Power Consumption
1.5 W (no load)
Operating Temperature
0 ~ 70 °C (32 ~ 158 °F) with external power
0 ~ 60 °C (32 ~ 140 °F) with USB bus power
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95% RH
(non-condensing)
Protection
Isolation Protection
2,500 VDC (Upstream Port)
ESD Protection
Contact discharge: 8kVrms (Level 4)
Air discharge: 15kVrms (Level 4)
