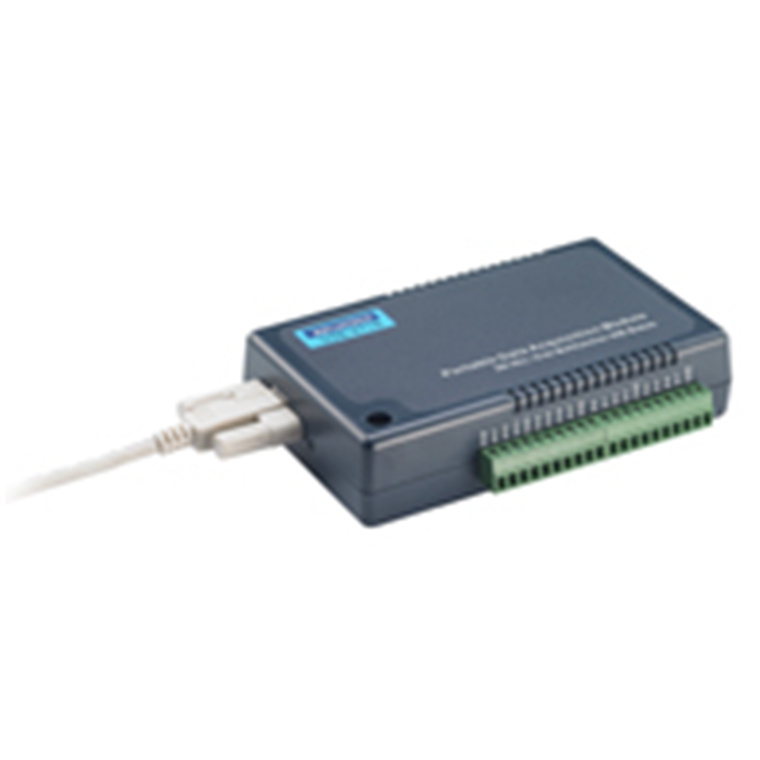

Advantech USB-4716-BE 200KS/s, 16-bit USB Muntifunction Module
- Brand: Advantech
- MPN: USB-4716-BE
- Part #: IPCAVH221193
Product URL: https://www.pbtech.co.nz/product/IPCAVH221193/Advantech-USB-4716-BE-200KSs-16-bit-USB-Muntifunct
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
- Supports USB 3.0 SuperSpeed
- Portable
- Bus powered
- 16 x Analog input channels
- 16-bit resolution analog input
- Up to 200 kS/s sampling rate
- 8-ch Digital input/8-ch digital output, 2-ch analog output, and 1 x 32-bit counter
- Detachable screw terminal on modules
- Suitable for DIN rail mounting
- 1 x Lockable USB cable included for connection security
For more information: https://advdownload.advantech.com/productfile/PIS/USB-4716/file/USB-4716_DS(121621)20211220135341.pdf
Specifications
MPN
USB-4716-BE
200 kS/s, 16-bit, 16-ch multifunction DAQ USB module
Analog Input
Channels
16 Single ended/ 8 differential (software programmable)
Resolution
16 bits
Max. Sampling Rate
200 kS/s
FIFO Size
1,024 samples
Overvoltage Protection
30 Vp-p
Input Impedance
1 GW
Sampling Modes
Software, onboard programmable pacer, or external
Analog Output
Channels
2
Resolution
16 bits
Output Rate
Static update
Slew Rate
0.125 V/µs
Driving Capability
5 mA
Output Impedance
0.1 ? max.
Operation Mode
Single output
Accuracy
Relative: ±1 LSB
Digital Input
Channels
8
Compatibility
3.3 V/5 V/TTL
Input Voltage
Logic 0: 1.0 V max.
Logic 1: 2.0 V min.
Digital Output
Channels
8
Compatibility
3.3 V/TTL
Output Voltage
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability
Sink: 6 mA (sink)
Source: 6 mA (source)
Event Counter
Channels
1
Compatibility
3.3V/TTL
Max. Input Frequency
1 kHz
General
Bus Type
USB 3.0
I/O Connector
Onboard screw terminal
Dimensions (L x W x H)
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
Typical: 5 V @ 360 mA
Max.: 5 V @ 450 mA
Operating Temperature
0 ~ 60 °C (32 ~ 158 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Operating Humidity
5 ~ 85% RH non-condensing
Storage Humidity
5 ~ 95% RH non-condensing
