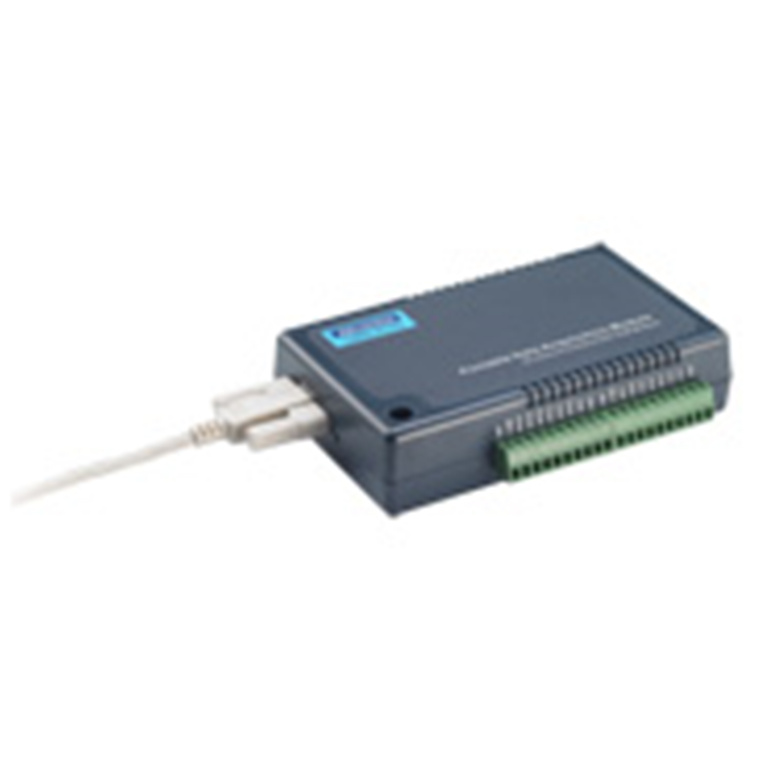

Advantech USB-4750-CE 32-CH Isolated DIO USB Module
Advantech USB-4750-CE 32-CH Isolated DIO USB Module
- Brand: Advantech
- MPN: USB-4750-CE
- Part #: IPCAVH221195
- UPC:
- Brand: Advantech
- MPN: USB-4750-CE
- Part #: IPCAVH221195
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech USB-4750-CE 32-CH Isolated DIO USB Module
- Brand: Advantech
- MPN: USB-4750-CE
- Part #: IPCAVH221195

Product URL: https://www.pbtech.co.nz/product/IPCAVH221195/Advantech-USB-4750-CE-32-CH-Isolated-DIO-USB-Modul
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Compatible with USB 1.1/2.0
- Bus powered
- 16 x isolated digital input and 16 x digital output channels
- High voltage isolation on all channels (2,500 VDC)
- High sink current on isolated output channels (200 mA/channel)
- Supports 5 ~ 60 VDC isolated input channels
- Interrupt handling capability
- Timer/counter capability
- Suitable for DIN rail mounting
- 1 x Lockable USB cable included for connection security
For more information: https://advdownload.advantech.com/productfile/PIS/USB-4750/file/USB-4750_4761_DS(041423)20230417133715.pdf
Specifications
MPN
USB-4750-CE
32-ch isolated digital I/O USB module
Isolated Digital Input
Channels
16
Input Voltage
Logic 0: 2 V max.
Logic 1: 5 V min. (60 V max.) or dry contact
Interruptible Channels
2
Isolation Protection
2,500 VDC
Isolated Digital Output
Channels
16
Output Type
Sink (NPN)
Isolation Protection
2,500 VDC
Output Voltage
5 ~ 40 VDC
Sink Current
200 mA max. per channel
Isolated Counter
Channels
2
Resolution
32 bit
Max. Input Frequency
1 kHz
Isolation Protection
2,500 VDC
General
Bus Type
USB 1.1/2.0
I/O Connector
Onboard screw terminal
Dimensions (L x W x H)
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption
Typical: 5 V @ 300 mA
Max.: 5 V @ 600 mA
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95% RH, non-condensing
