Features
2.4G/5G Wi-Fi IoT Wireless I/O Module
- Wi-Fi Dual band 2.4/5 GHz up to 802.11 a/b/g/n/ac

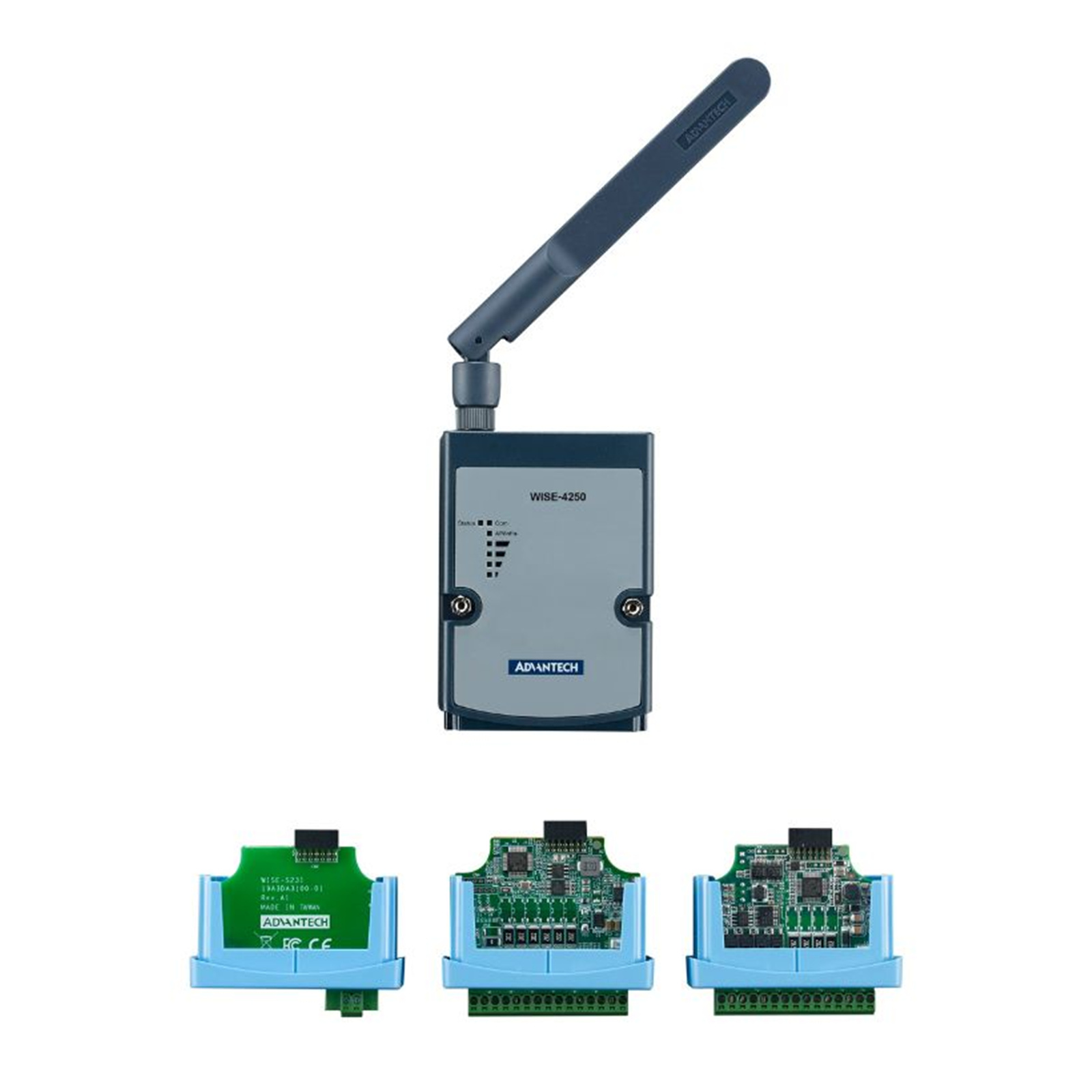

- Supports interchangeable I/O and Sensor modules (additional purchase required) and is easily configured with web UI
- MQTT, Modbus/TCP, SNMP v2, SNTP, TCP/IP, HTTP, HTTPS, UDP, and DHCP protocols supported
- Supports smart roaming function
- Supports X.509 and up to WPA3 /TLS1.3
- UDP based AES-128 encrypted wireless P2P (Peer to Peer) function for multiple modules
- 10000+ data logger with SNTP/RTC time sync and WDT auto connection recovery
Specifications
Hardware
Watchdog Timer
1.6 s
Power Consumption
1.2 W @ 24 VDC
LED Indicators
Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
Certification
CE, FCC, RoHS, TELEC
General
Protocol
Modbus/TCP, TCP, UDP, HTTP, HTTPS, DHCP, MQTT, SNTP, Modbus/RTU, REST
Protection
Short Circuit Protection
Yes
Power Requirements
Input Voltage
10~50 VDC
Wireless Communication
Standard (Technology)
WIFI
Frequency Band
IEEE 802.11 a/b/g/n/ac 2.4/5 (GHz)
Environment
Relative Humidity
20~95% RH (non-condensing)
Operating Temperature
-25~70 °C (-13~158 °F)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
0~95% RH (non-condensing)
Mechanical
Dimension (W x H x D)
70 x 102 x 38 mm
Enclosure
PC
Weight (Net)
0.5 kg (1.1 lb)
Mounting
DIN-rail, Wall, Pole, Stack
