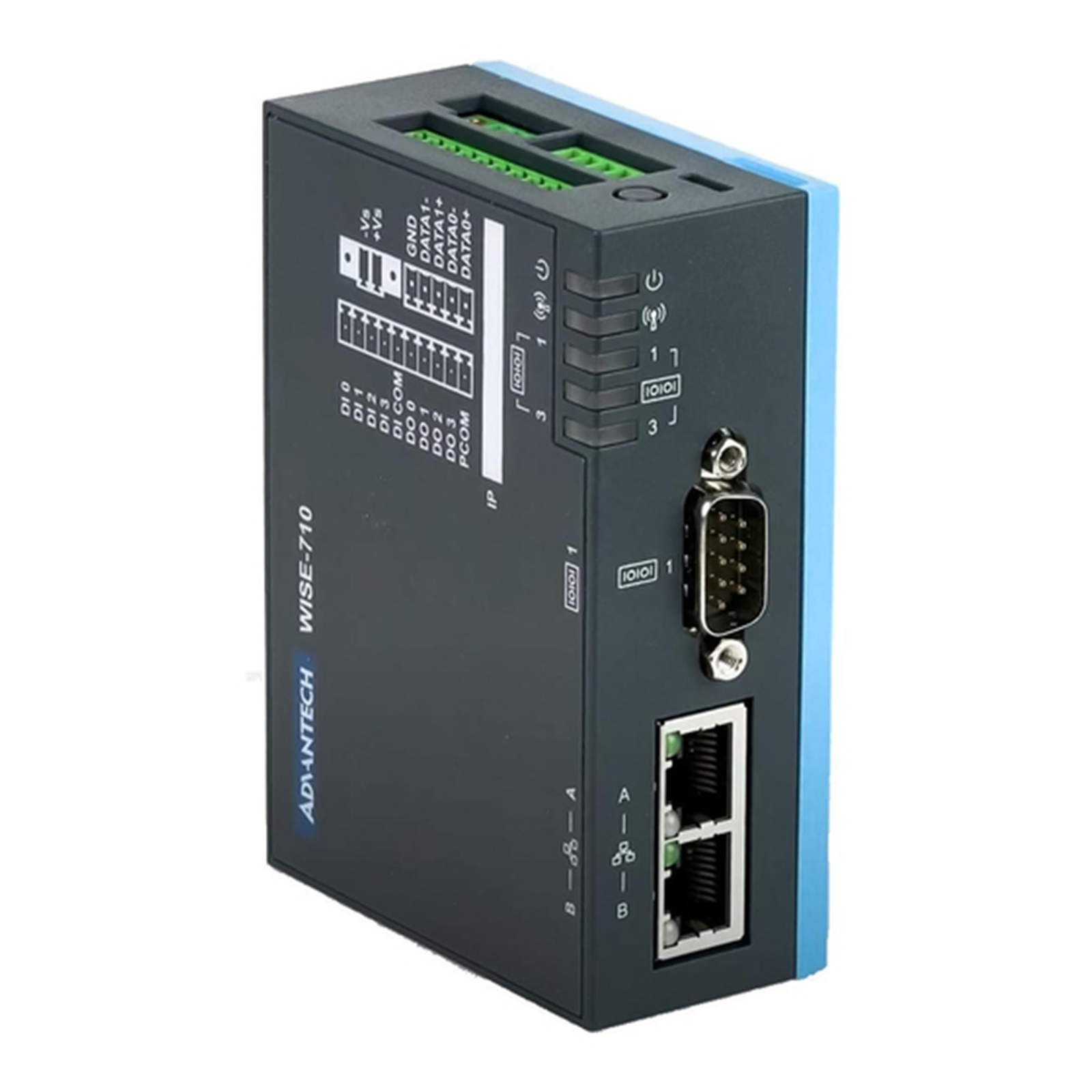

Advantech WISE-710-N600B FreeScale i.MX 6 DualLite Industrial Gateway, 2G RAM, Ubuntu
Advantech WISE-710-N600B FreeScale i.MX 6 DualLite Industrial Gateway, 2G RAM, Ubuntu
- Brand: Advantech
- MPN: WISE-710-N600B
- Part #: IPCAVH221231
- UPC:
- Brand: Advantech
- MPN: WISE-710-N600B
- Part #: IPCAVH221231
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech WISE-710-N600B FreeScale i.MX 6 DualLite Industrial Gateway, 2G RAM, Ubuntu
- Brand: Advantech
- MPN: WISE-710-N600B
- Part #: IPCAVH221231

Product URL: https://www.pbtech.co.nz/product/IPCAVH221231/Advantech-WISE-710-N600B-FreeScale-iMX-6-DualLite
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
FreeScale i.MX 6 DualLite Industrial Protocol Gateway
- Freescale i.MX 6 Dual Lite A9 1GHz
- Support MQTT, LWM2M client for cloud communication
- Embedded with Microsoft Azure certified security chip
- Support Micro SD card & on-line firmware update
- Support DI wet contact & dry contact by switch
- Support Node ID by software
- Support data logger on Micro SD card
- Operation System: Yocto 2.1/ Ubuntu 16.04
- Operation Temperature: -20~55°C
Specifications
Environment
Operating Temperature
-20~55 °C (-4~131 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
10 G, half sine
Storage Temperature
-40~75 °C (-40~167 °F)
Vibration Protection
2 Grms, random
Hardware
Certification
CE, FCC
CPU
NXP® ARM® Cortex™-A9 i.MX6 1.0 GHz Dual-core
Hardware Security
Security Chip
Memory
1 GB DDR3
OS Support
Linux
Power Input
24 VDC ±20%
Storage
8 GB eMMC
Expansion
1 x Full-size mPCIe slot
Power Consumption
5 W @ 24 VDC
I/O Interface
Expansion
1 x Full-size mPCIe Slot
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
1 x RS-232/485, 1 x RS-485/CANBus, 1 x RS-485
USB Ports
1 x Micro USB
Mechanical
Dimension (W x H x D)
115.58 x 73 x 36 mm
Enclosure
Plastic
Weight (Net)
0.17 kg (0.375 lb)
Mounting
Wall, DIN-rail
