Advantech PPC-112W-PK92AA 11.6" PPC w/RK3399,4GB DDR,32GB EMMC,And
Advantech PPC-112W-PK92AA 11.6" PPC w/RK3399,4GB DDR,32GB EMMC,And
- Brand: Advantech
- MPN: PPC-112W-PK92AA
- Part #: IPCAVH221251
- UPC:
- Brand: Advantech
- MPN: PPC-112W-PK92AA
- Part #: IPCAVH221251
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech PPC-112W-PK92AA 11.6" PPC w/RK3399,4GB DDR,32GB EMMC,And
- Brand: Advantech
- MPN: PPC-112W-PK92AA
- Part #: IPCAVH221251

Product URL: https://www.pbtech.co.nz/product/IPCAVH221251/Advantech-PPC-112W-PK92AA-116-PPC-wRK33994GB-DDR32
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features

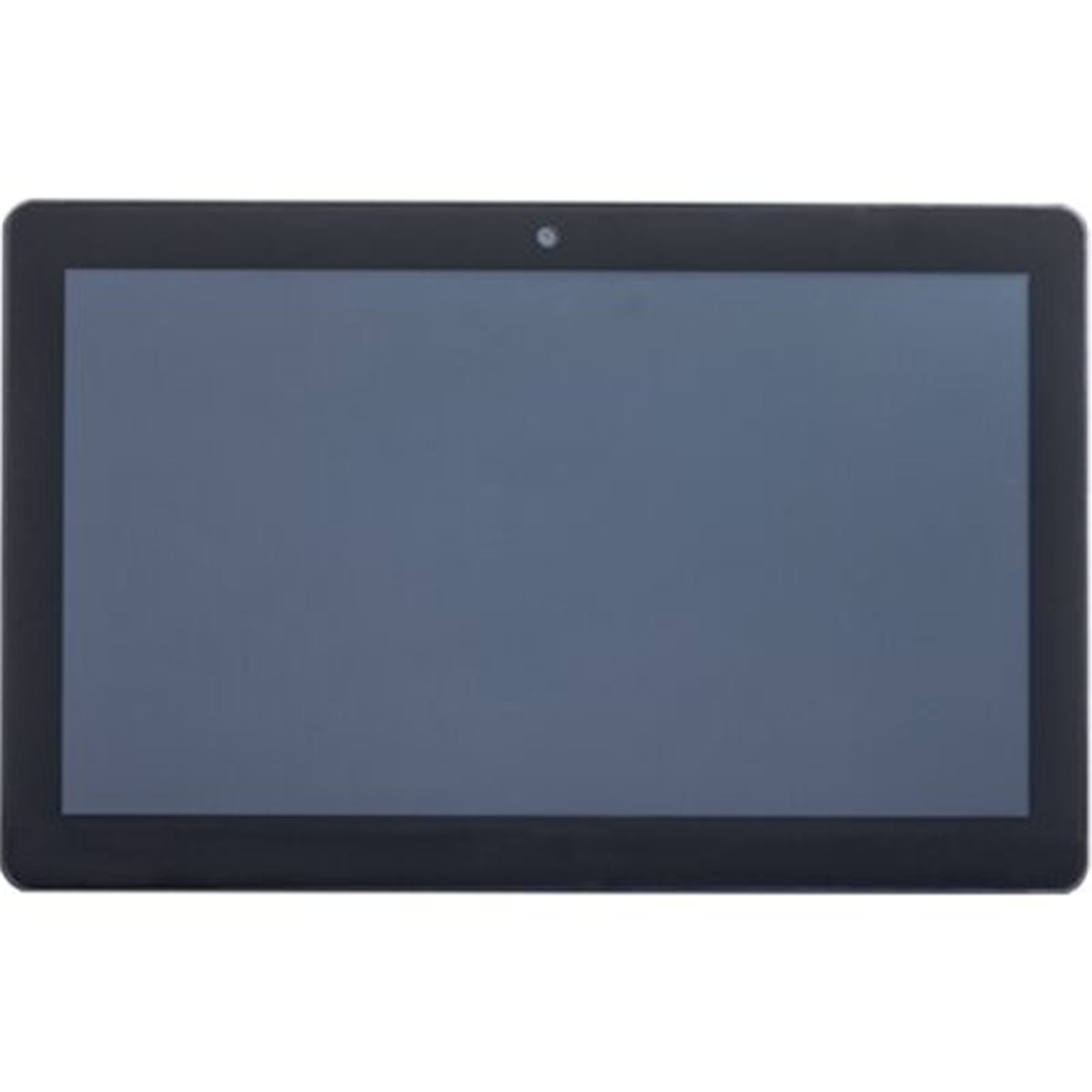

11.6" All-in-One Panel PC with Rockchip 3399 processor
- True flat wide display screen with Pcap multi-touch
- Embedded Rockchip RK3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
- Onboard 4GB LPDDR4-1333 memory, 32GB eMMC NAND Flash
- IP65 rated front panel protection
- Supports VESA 100 and panel mounting(optional)
- Supports Android and Debian
Specifications
Environment
Ingress Protection
Front Panel IP65
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
0.5 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
CPU
Rockchip ARM® RK3399
Dual-core Cortex-A72 and Quad-core Cortex-A53
Expansion
1 x M.2 E Key 2230
I/O
1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO
LAN
1 x 10/100/1000 Mbps
Memory
1 x LPDDR4 with 4 GB
OS Support
Android, Linux
Power Consumption
12 W @ 12 VDC
Power Input
12 VDC
I/O Interface
Power Connector
1 x DC Jack
Serial Ports
1 x RS 232, 1 x RS232 (Pin Header)
LCD Display
Backlight Life (hrs)
15,000
Display Size
11.6"
Luminance (cd/m2)
250
Max. Resolution
1366 x 768
Viewing Angle (H/V°)
90/60
Mechanical
Dimension (W x H x D)
291.7 x 186.6 x 49.2 mm
Enclosure
PC+ABS, SECC
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
1.78 kg
Touchscreen
Touch Type
PCAP
USB Vision
Connector
1 x USB 2.0 Type A, 1 x USB 3.0 Type A
