Features

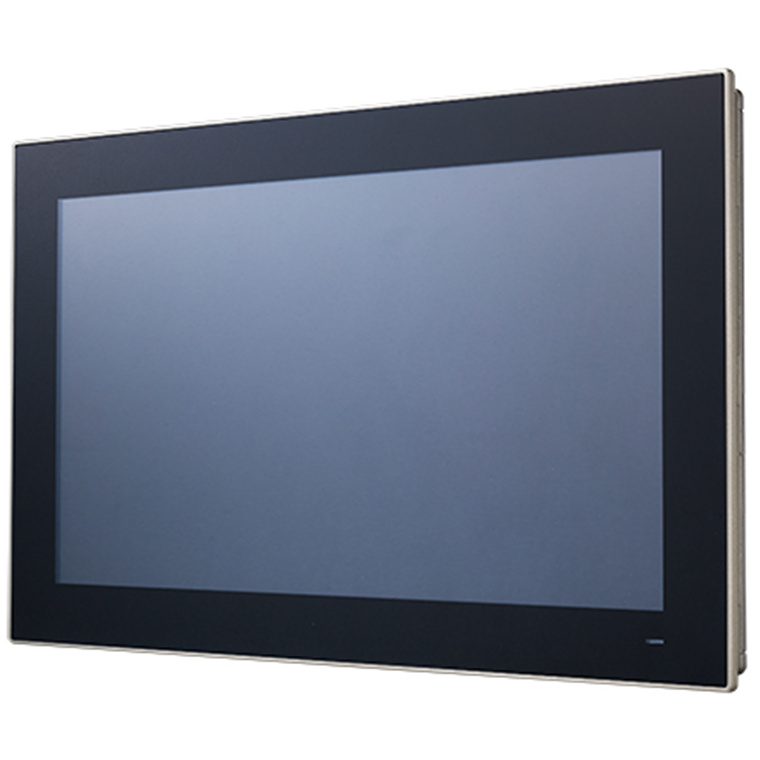

The PPC-3180SW is a high-value, ultra-slim panel PC equipped with a 18.5" WXGA TFT LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide highperformance computing in a compact and fanless system. For high durability and functionality, the PPC-3180SW features an IP66-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.
- 18.5" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Configurable RS-232/422/485 ports via BIOS
- Automatic data flow control over RS-485
- Wide range DC support (12 ~ 24 VDC)
- Supports dual displays
- IP66-rated front panel
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3180SW/file/PPC-3180SW_DS(081423)20230816162002.pdf
Specifications
MPN
PPC-3180SW-PN4B
18.5" PPC w/Intel N4200, P-Cap
System
CPU
Intel Pentium® N4200 quad Core
Frequency
1.1GHz, turbo boot to 2.5GHz
L2 Cache
3 MB
Memory
1 x SODIMM, DDR3L 1600/1866, max. 8 GB
Storage
1 x 2.5" SATA bay (optional; requires a bracket module for installation)
1 x mSATA bay
Network (LAN)
2 x 10/100/1000 /2500Mbps Ethernet Intel I225LM
I/O
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 2 x USB 2.0
1 x Line-out
1 x HDMI
Expansion
1 x Mini PCIe
Watchdog Timer
255 timer levels, set up by software
Speaker
2 x 1W
Physical Characteristics

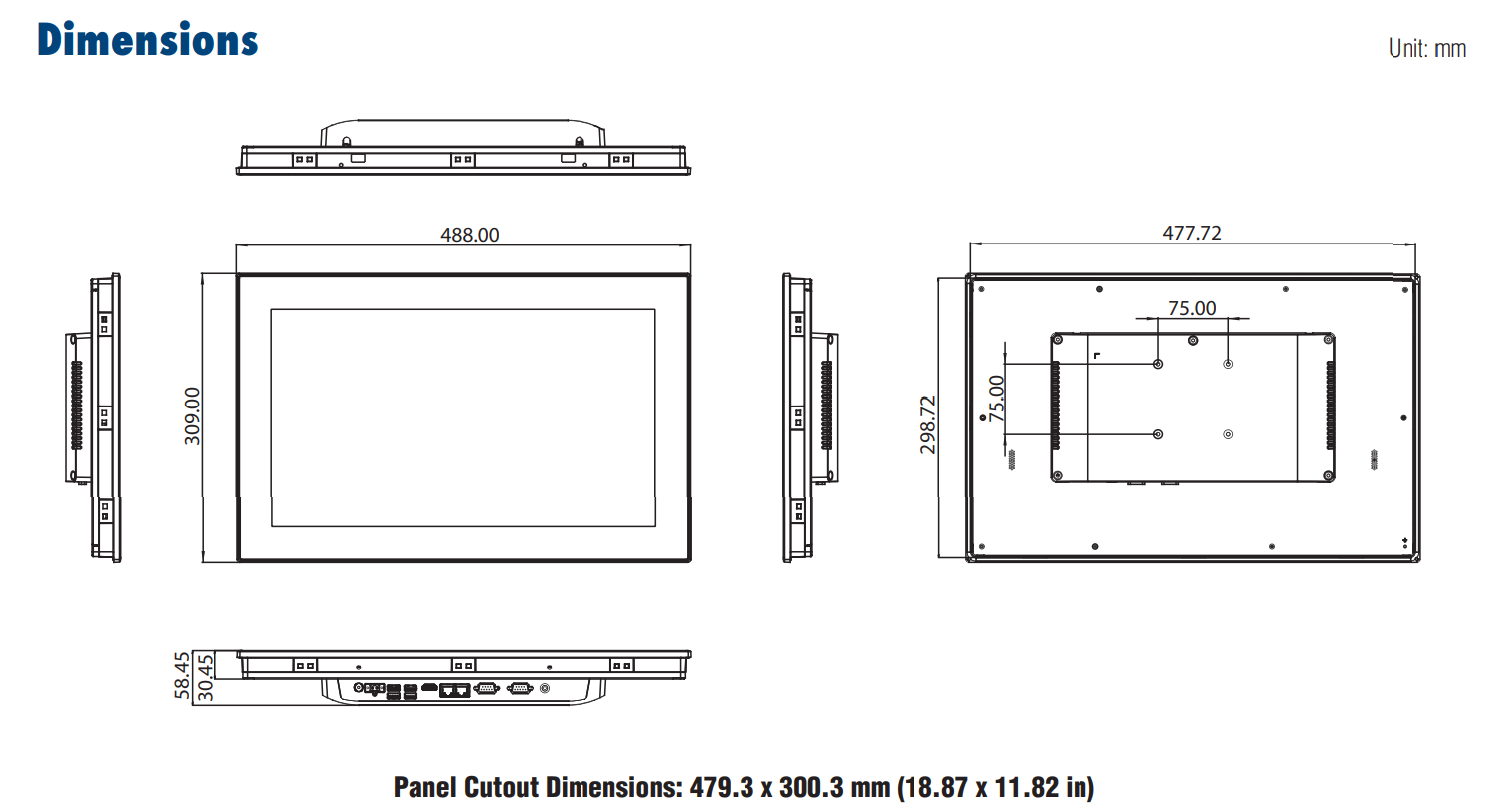

Dimensions
488 x 309 x 58.45 mm (19.21 x 12.16 x 2.3 in)
Weight
5.4 kg (11.90 lb)
OS Support
OS Support
Microsoft® Windows 10 IOT LTSC(64-bit), Linux
Power Comsumption
Input Voltage
12 ~ 24 VDC
Power Consumption
35 W
LCD
Display Type
18.5" TFT LCD (LED backlight)
Max. Resolution
1366 x 768
Viewing Angle
85 (Left), 85 (Right), 80 (Up), 80 (Down)
Luminance (cd/m²)
450
Contrast Ratio
1000
Backlight Lifetime
50,000 hr (min.)
Touchscreen
Touch Type
Multi-touch projected capacitive
Light Transmission
90% ± 2%
Controller
USB Interface
Environment
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity
95% @ 40 °C (Non-Condensing)
Shock
Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration
Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-2-64
EMC
CE, FCC Class B, BSMI, EN60601-1-2, UKCA
Safety
CB, UL, CCC, UKCA
Front Panel Protection
IP66 compliant
