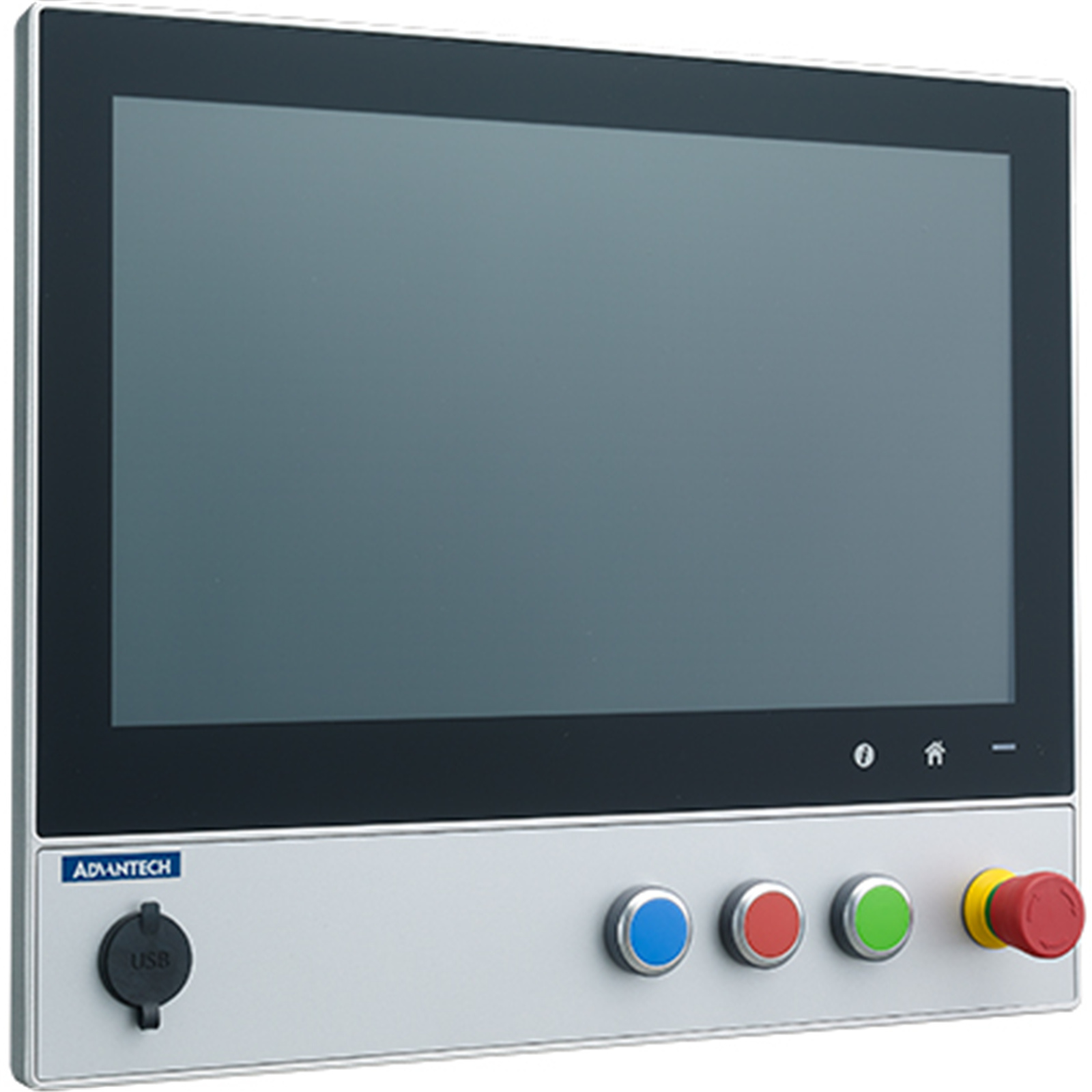

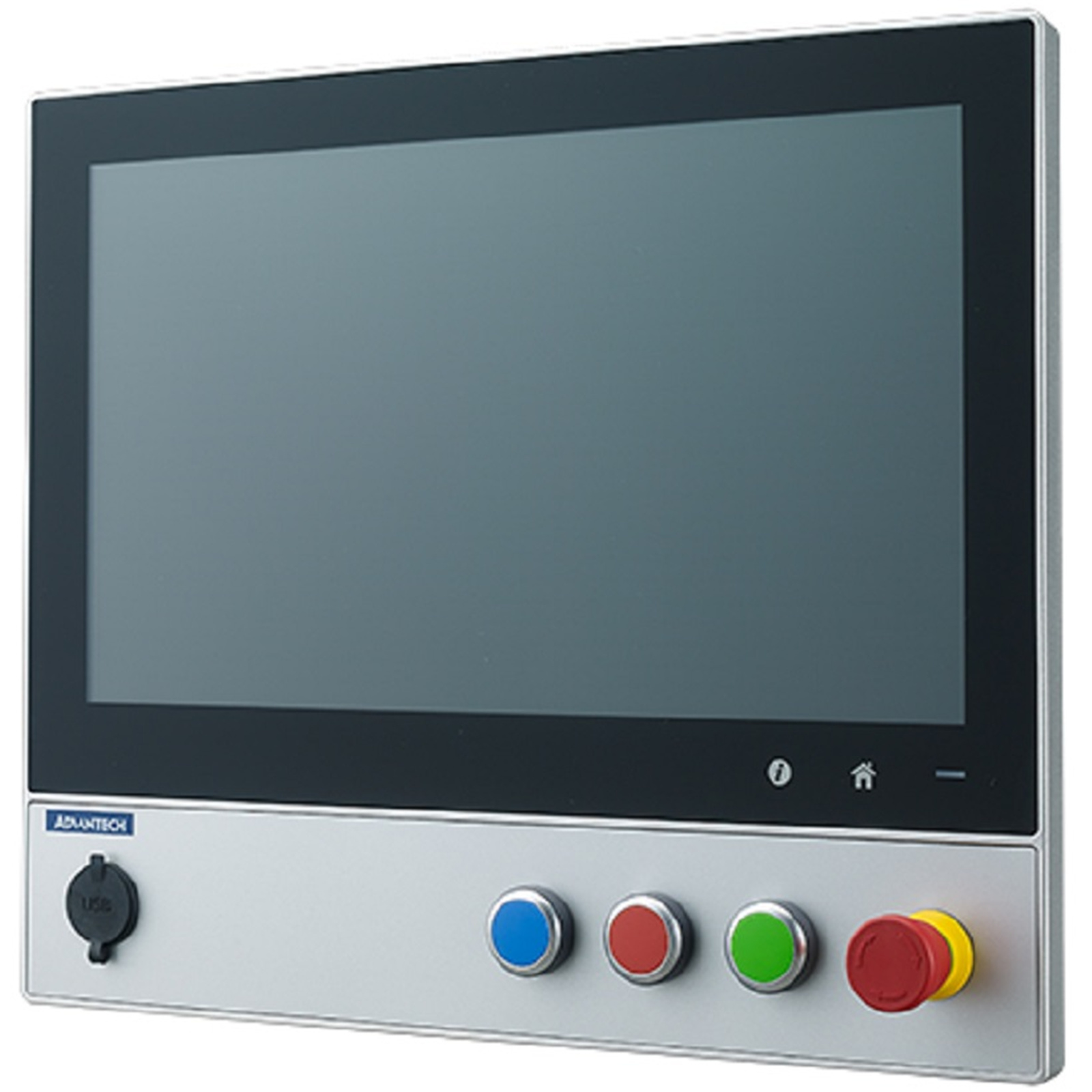

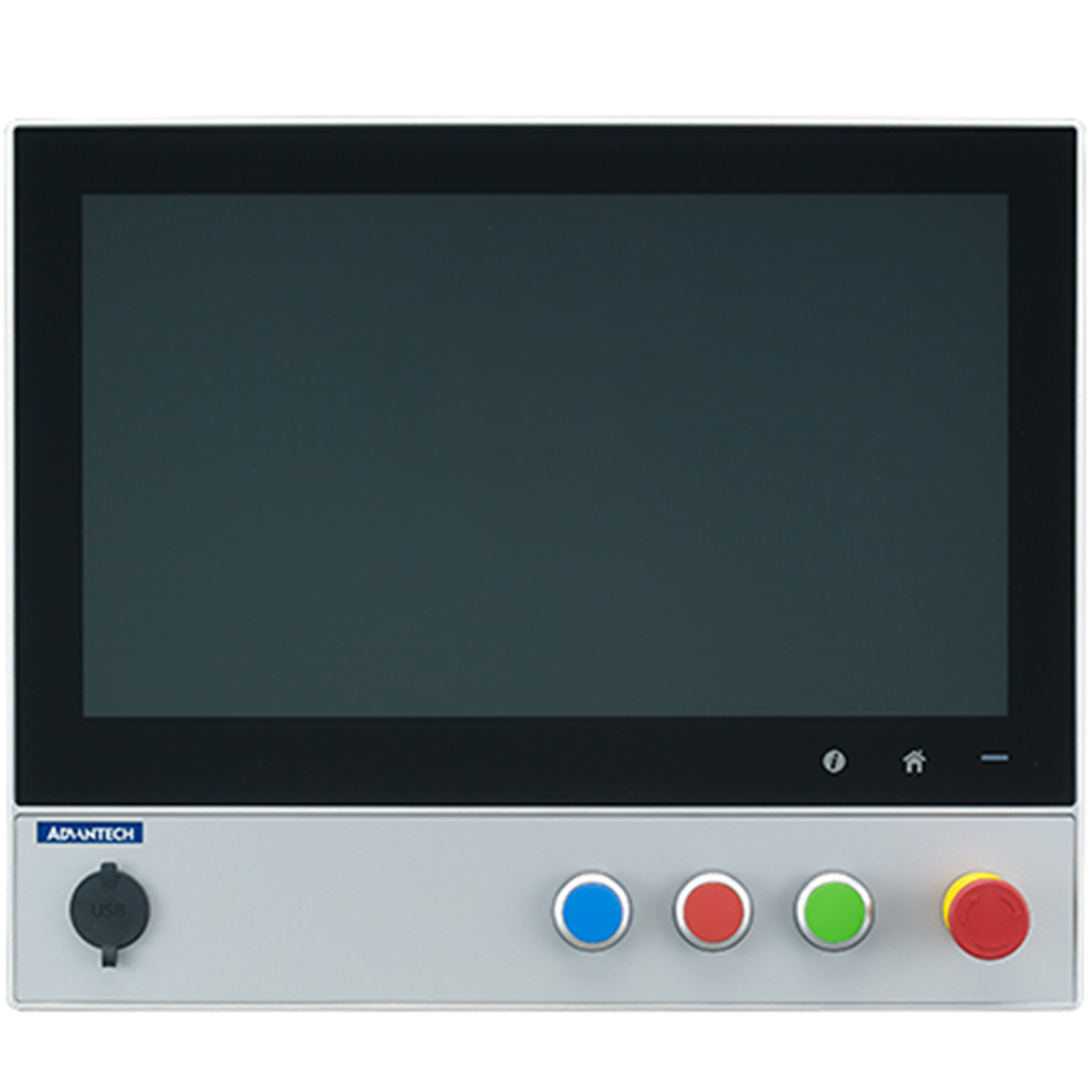

Advantech SPC-815-MLA 15.6" Monitor Horizontal,DP,HDMI RX,PIPE Mount
Advantech SPC-815-MLA 15.6" Monitor Horizontal,DP,HDMI RX,PIPE Mount
- Brand: Advantech
- MPN: SPC-815-MLA
- Part #: IPCAVH221331
- UPC:
- Brand: Advantech
- MPN: SPC-815-MLA
- Part #: IPCAVH221331
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech SPC-815-MLA 15.6" Monitor Horizontal,DP,HDMI RX,PIPE Mount
- Brand: Advantech
- MPN: SPC-815-MLA
- Part #: IPCAVH221331

Product URL: https://www.pbtech.co.nz/product/IPCAVH221331/Advantech-SPC-815-MLA-156-Monitor-HorizontalDPHDMI
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
15.6" Integrated-Button Industrial Monitor
- Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
- Silicone-free enclosure with all-round IP65-rated protection
- Front-facing USB ensures easy maintenance
- Supports the RAFI FS22+ Series pushbuttons
- Front-facing LED indicators show operating status
- PCAP multi-touch control
Specifications
Environment
Ingress Protection
All-around IP65
Operating Temperature
0~55 °C (32~131 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC (±20%)
Hardware
Certification
CB, UL, CE, FCC Class A, CCC
I/O
1 x USB 2.0, 2 x USB 3.0
Power Consumption
10 W @ 24 VDC
Power Input
24 VDC ±20%
Power Requirement
24 VDC ±20%
Video Port
HDMI, DP
I/O Interface
Displays
1 x HDMI, 1 x DP, 1 x HDBaseT
Power Connector
1 x 3-Pin Terminal Block
USB Ports
1 x USB 2.0, 2 x USB 3.0
LCD Display
Backlight Life (hrs)
50,000
Display Size
15.6"
Luminance (cd/m2)
400
Max. Resolution
1366 x 768
Viewing Angle (H/V°)
170/130
Mechanical
Dimension (W x H x D)
402.19 x 333.19 x 67 mm
Enclosure
Die-cast aluminum alloy
Mounting
Pipe
Weight (Net)
7.2 kg (15.9 lb)
Power Requirements
Input Voltage
19~29 VDC
Touchscreen
Touch Type
PCAP
