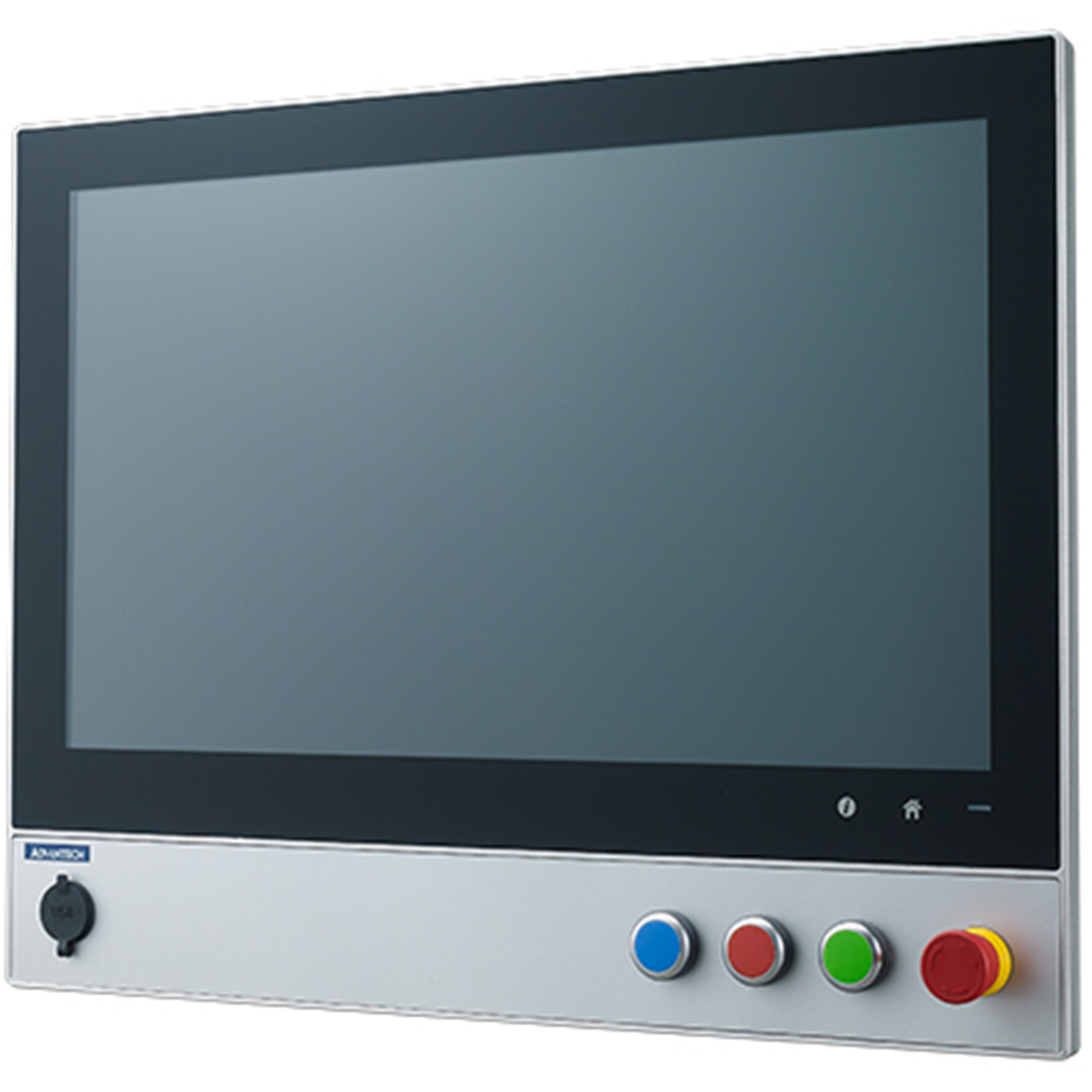

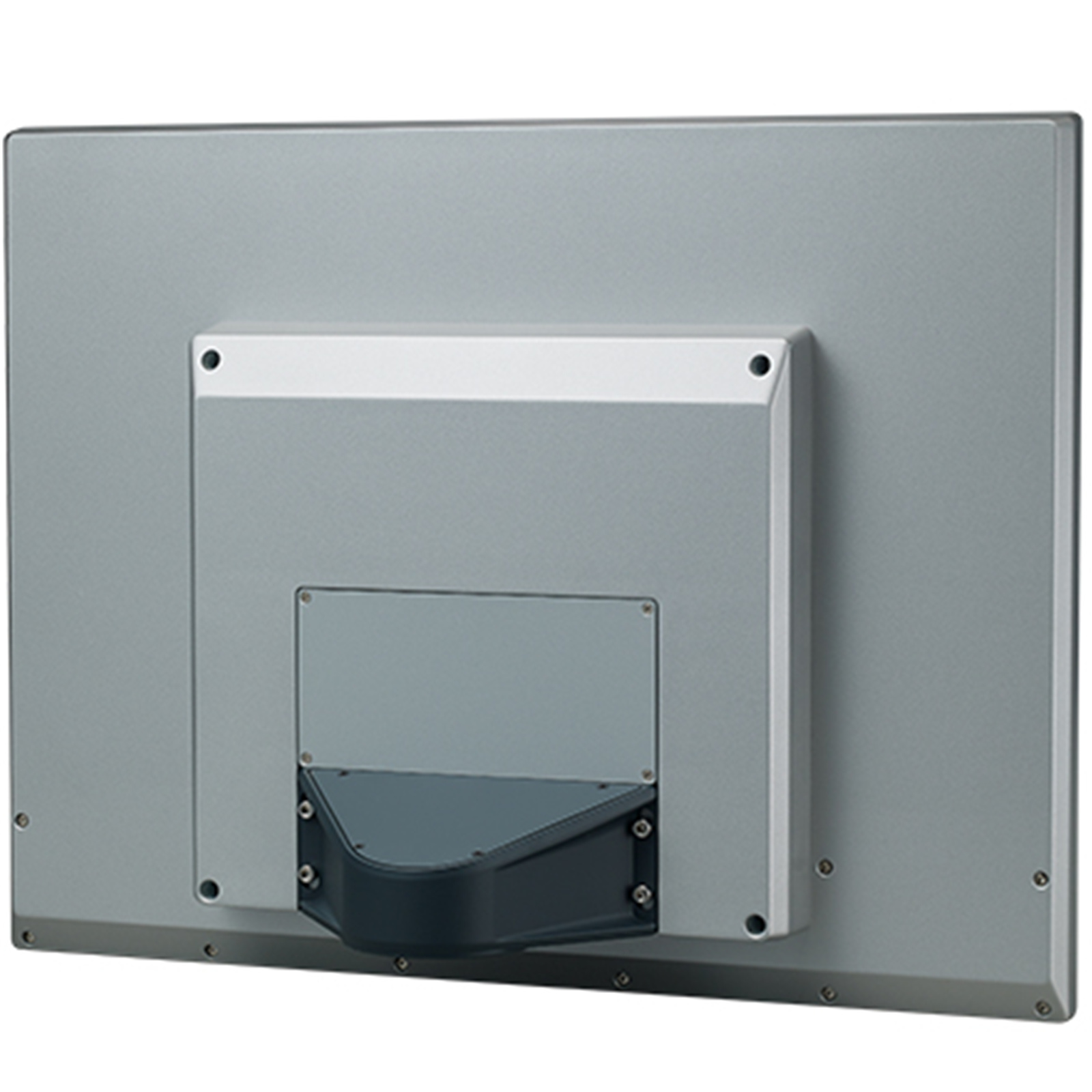

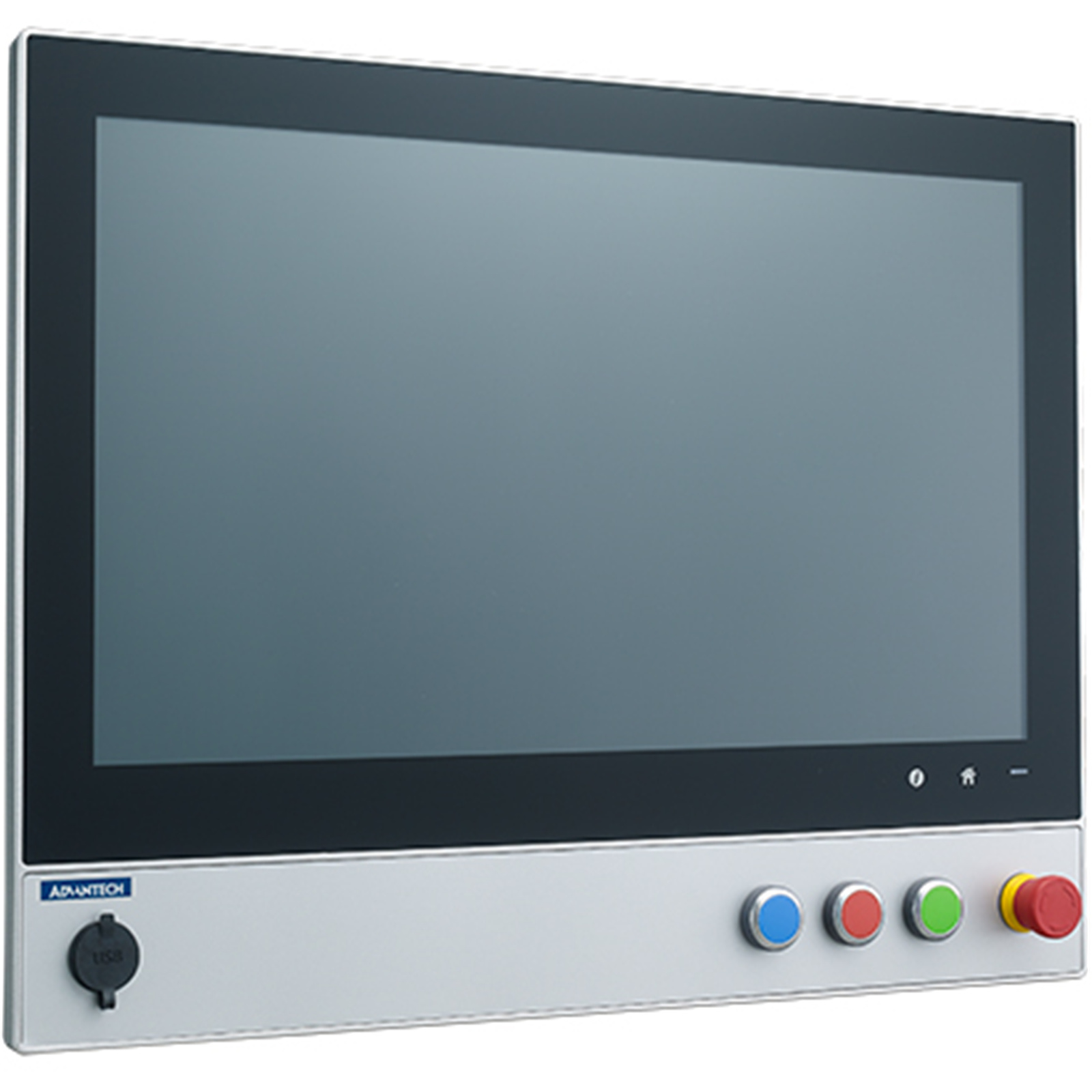

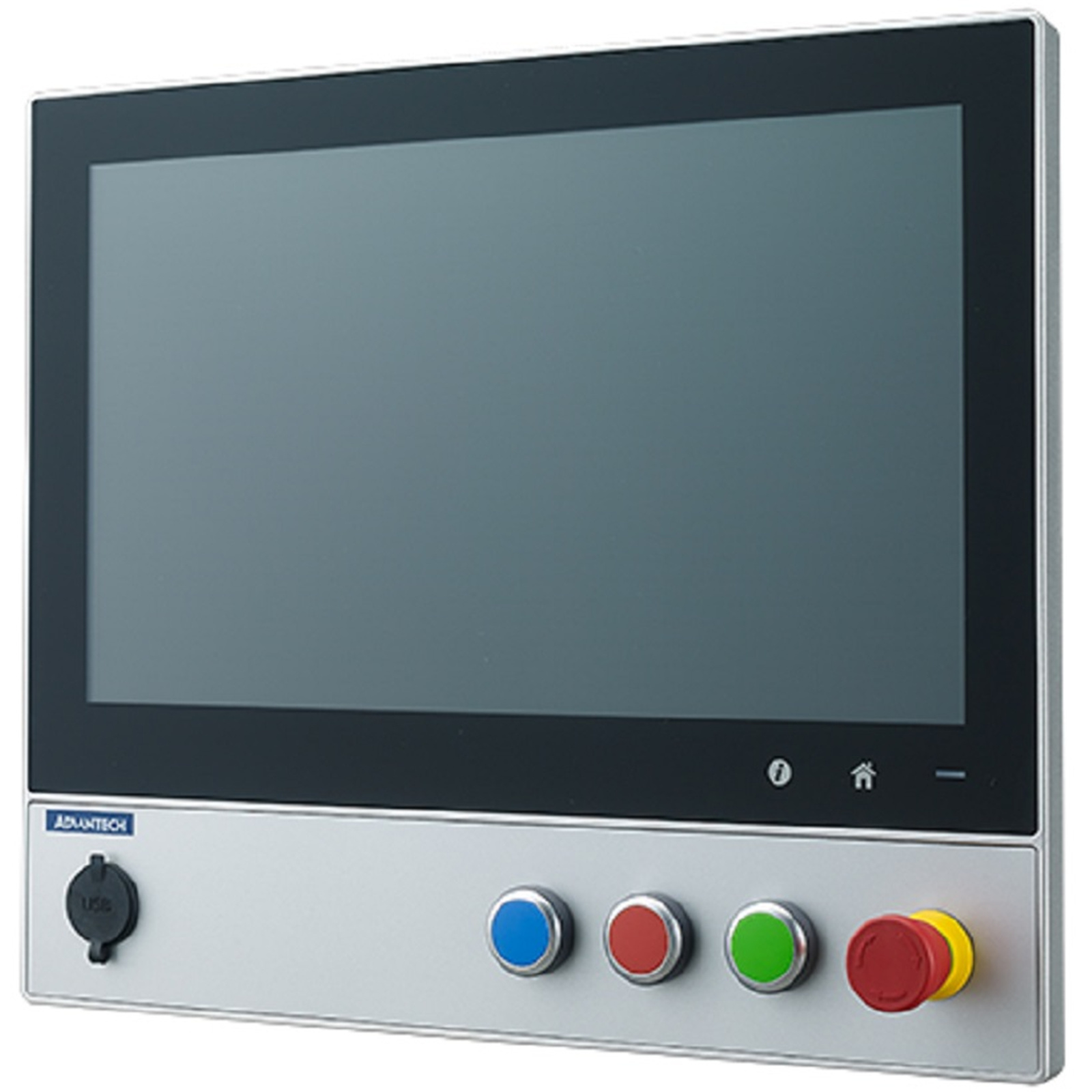

Advantech SPC-821-633A 21.5" FHD IO Panel PC USB SKYLAKE I3-6100U W/PIPE Mount
Advantech SPC-821-633A 21.5" FHD IO Panel PC USB SKYLAKE I3-6100U W/PIPE Mount
- Brand: Advantech
- MPN: SPC-821-633A
- Part #: IPCAVH221332
- UPC:
- Brand: Advantech
- MPN: SPC-821-633A
- Part #: IPCAVH221332
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech SPC-821-633A 21.5" FHD IO Panel PC USB SKYLAKE I3-6100U W/PIPE Mount
- Brand: Advantech
- MPN: SPC-821-633A
- Part #: IPCAVH221332

Product URL: https://www.pbtech.co.nz/product/IPCAVH221332/Advantech-SPC-821-633A-215-FHD-IO-Panel-PC-USB-SKY
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
21.5" Integrated-Button Panel Computer
- 21.5" (Full) HD TFT LED LCD display
- Intel® Core™ i3-6100U dual-core, 2.3 GHz processor
- Supports the RAFI FS22+ Series pushbuttons
- Silicone-free enclosure with all-round IP65-rated protection
- Supports the CP 40 (Rittal) and CS-480 (Bernstein) support arm system standards
- Front-facing USB port and Reset button for easy access and maintenance
- PCAP multi-touch control
Specifications
Environment
Ingress Protection
All-around IP65
Operating Temperature
0~55 °C (32~131 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC (±20%)
Hardware
BIOS
AMI UEFI
Certification
CB, UL, CE, FCC Class A, CCC
CPU
Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2
Hardware Security
Optional
I/O
1 x USB 2.0, 2 x USB 3.0
LAN
2 x 10/100/1000 Mbps
Memory
2 x SO-DIMM with 8GB DDR3L
OS Support
Microsoft® Windows 10 LTSC
Power Consumption
35 W @ 24 VDC
Power Input
24 VDC ±20%
Power Requirement
24 VDC ±20%
I/O Interface
Expansion
1 x Full-size mPCIe Slot, 2 x RS-232/422/485
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x 3-Pin Terminal Block
USB Ports
1 x USB 2.0, 2 x USB 3.0
LCD Display
Backlight Life (hrs)
50,000
Display Size
21.5"
Luminance (cd/m2)
250
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
178/178
Mechanical
Dimension (W x H x D)
546.69 x 420.34 x 67 mm
Enclosure
Die-cast aluminum alloy
Form Factor
Passive Cooling
Mounting
Pipe
Weight (Net)
10.6 kg (23.3 lb)
Power Requirements
Input Voltage
19~29 VDC
Touchscreen
Touch Type
PCAP
