Features

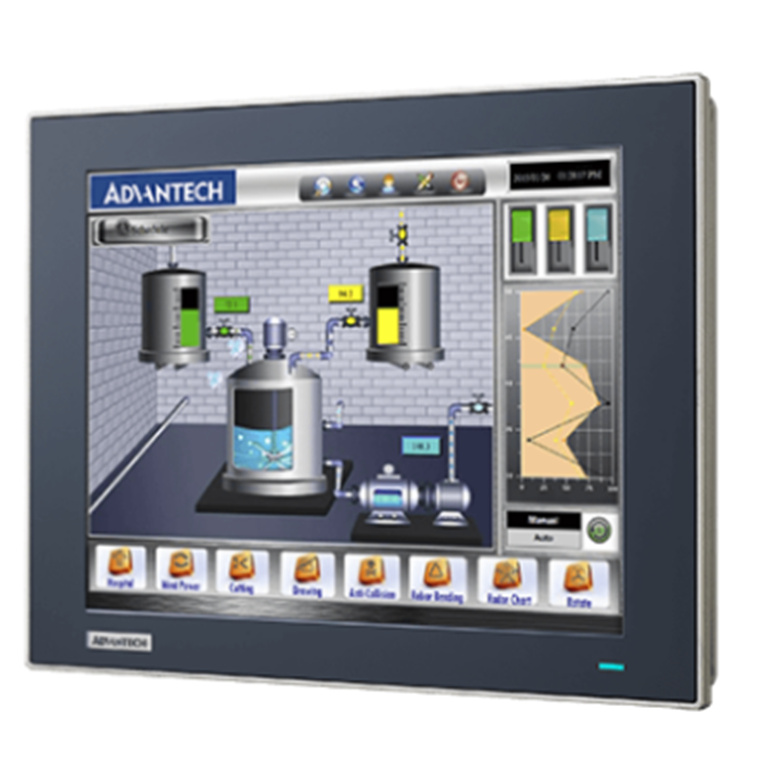

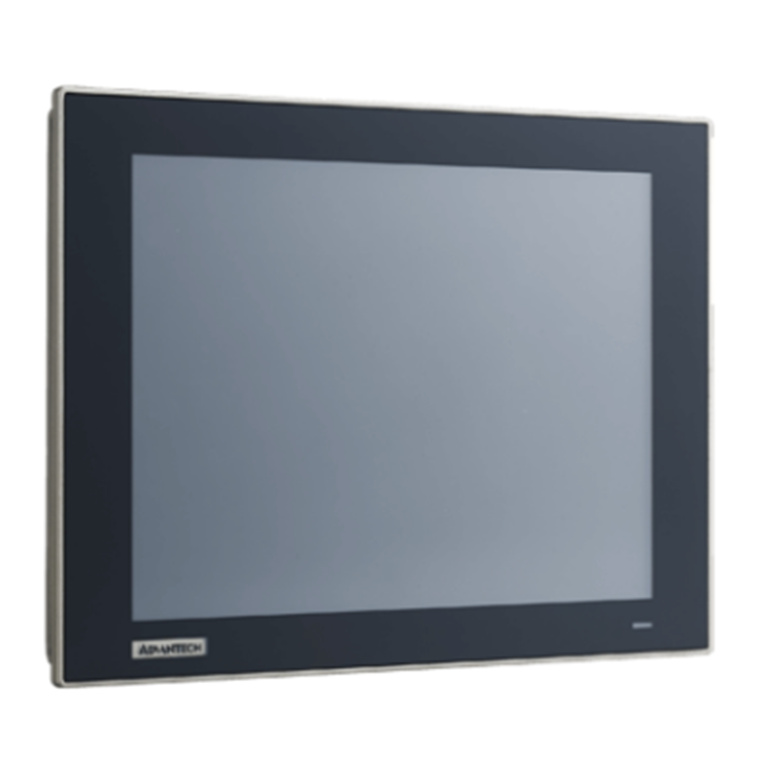

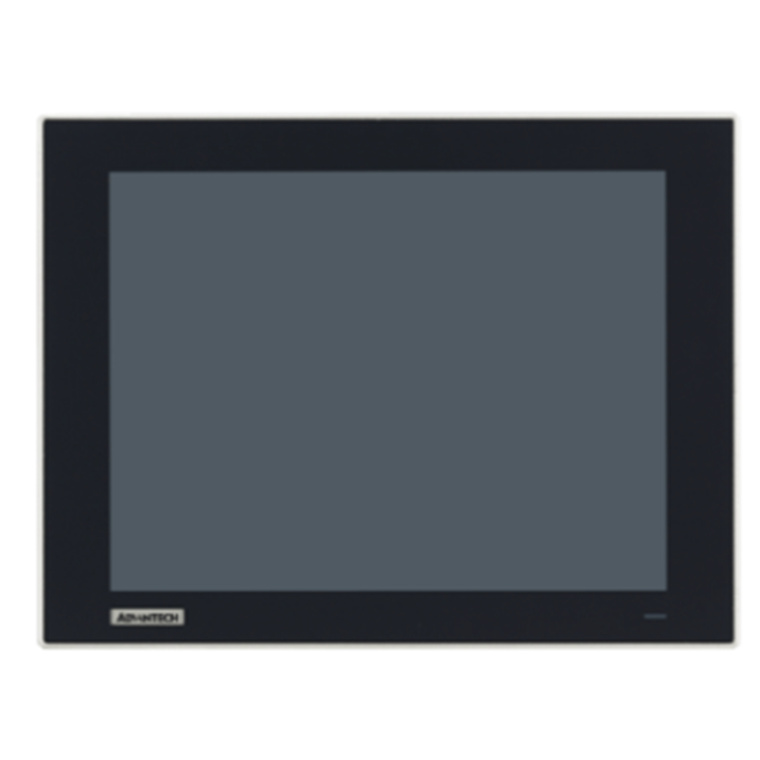

The TPC-125H thin-client terminal is Equipped with a 12" XGA TFT LED LCD, low-power Intel® Atom™ E3845, 1.91GHz, quad-core processor, 4 GB DDR3L SDRAM and 64 GB SSD, TPC-125H delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-125H supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit. TPC-125H has been C1D2 certified for the applications in hazardous environments. Moreover, with the provision of a full-size mini PCIe slot that supports mSATA signals and Advantech's iDoor technology, TPC-125H can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 3G/GPS/GPRS/Wi-Fi communication capabilities.
- Industrial-grade 12" XGA TFT LCD with 50K lifetime and LED backlight
- Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM and 64 GB SSD
- UL C1D2 certified HMI for Hazardous environments
- In-cabinet Design with True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Advantech iDoor technology and SSD/HDD bay
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports VESA mount (100 x 100 mm)
- Hazardous Location Designation Group A, B, C, D, T4
For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-125H/file/TPC-125H_DS(092624)20240926135521.pdf
Specifications
MPN
Advantech TPC-125H-E3BE
General
BIOS
AMI UEFI
Certification
BSMI, CCC, CE, FCC Class A, UL, UL C1D2
Cooling System
Fanless design

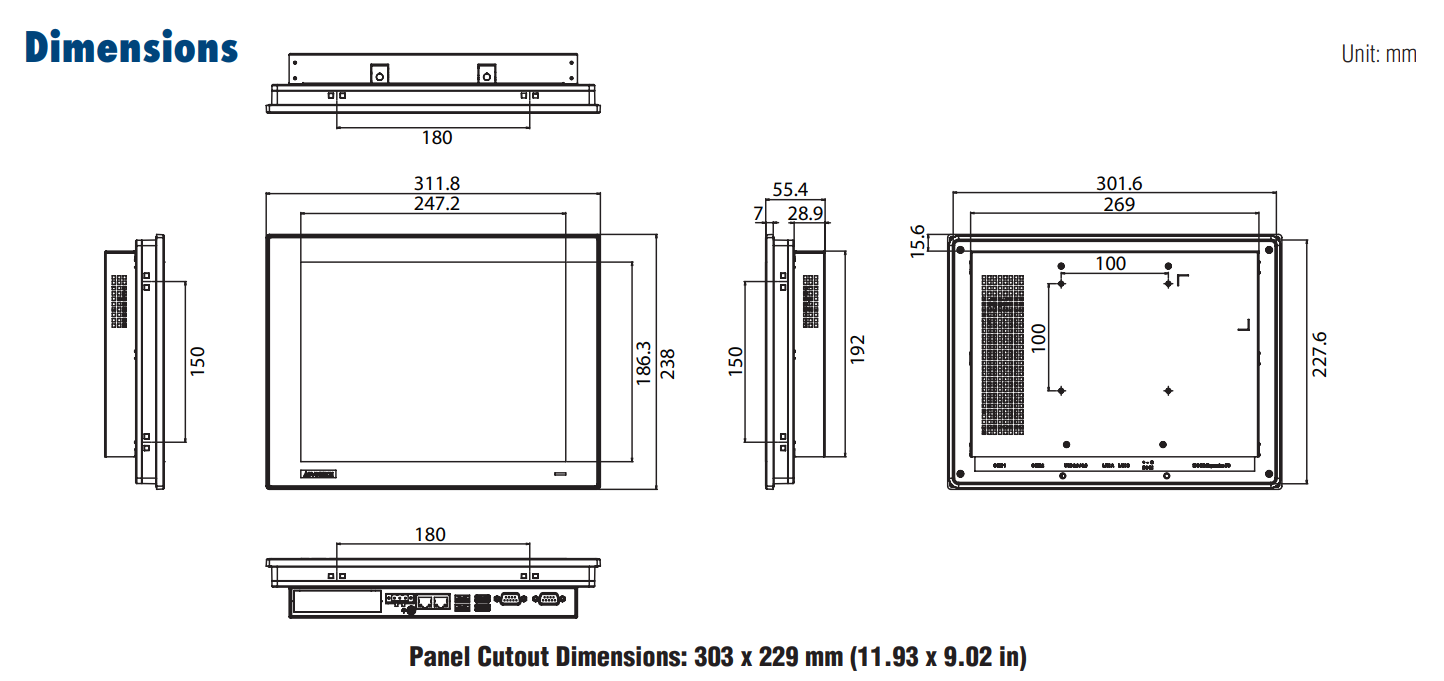

Dimensions (W x H x D)
311.8 x 238 x 55.4 mm (12.28 x 9.37 x 2.18 in)
Enclosure
Front bezel: Die-cast aluminum alloy
Back housing: SECC
Mount Options
VESA mount, Desktop/wall/panel
OS Support
Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows 10 Enterprise LTSB
Power Consumption
Typical 25W, 43.8W max.
Power Input
24 VDC +/- 20%
Watchdog Timer
1 ~ 255 sec (system)
Weight (Net)
3.12 kg (6.88 lb)
System Hardware
CPU
Intel® Atom™ E3845, 1.91 GHz, quad core
Memory
1 x SODIMM with 4 GB DDR3L SDRAM (up to 8 GB)
LAN
2 x Intel® I210; 10/100/1000 BASE-T
Expansion Slots
1 x Full-size mini PCIe
Storage
1 x 2.5" SATA SSD, default 64 GB SSD
1 x mSATA

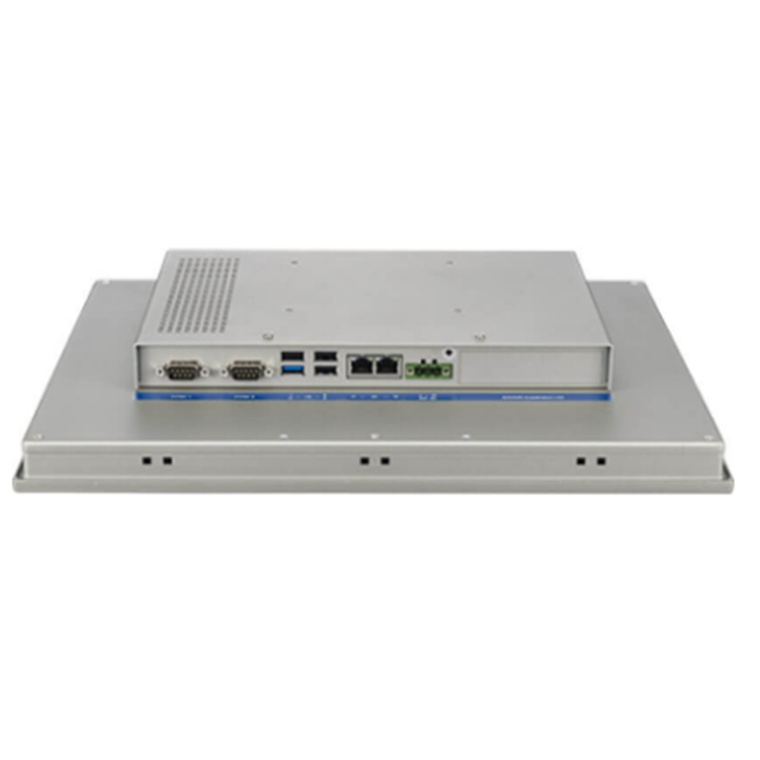

I/O
1 x RS-232
1 x RS-232/422/485
1 x USB 3.0
3 x USB 2.0
1 x iDoor slot
LCD
Display Type
XGA TFT LED LCD
Display Size
12"
Max. Resolution
1024 x 768
Max. Colors
16.2M
Luminance
600 cd/m²
Viewing Angle (H/V°)
178/178
Backlight Life
50,000 hr
Contrast Ratio
1000:1
Touchscreen
Lifespan
36 million touches at a single point
Light Transmission
Above 75%
Resolution
Linearity
Type
5-wire analog resistive
Environment
Humidity
95% RH @ 40 °C, non-condensing
Ingress Protection
IP66-rated front panel
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Vibration Protection
With SSD: 1 Grms (5 ~ 500 Hz)
(operating, random vibration)
