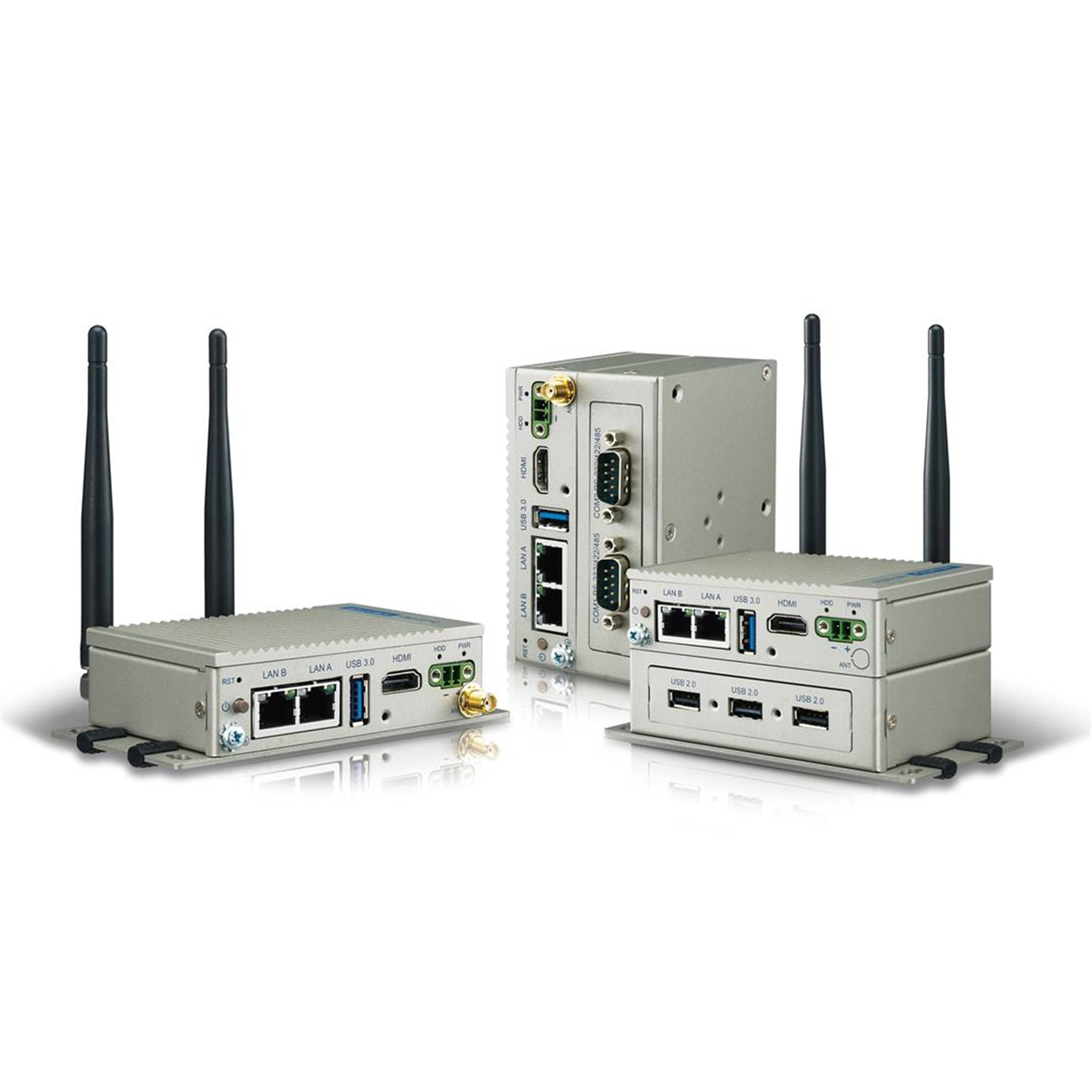

Advantech UNO-2271G-E022AE Pocket-Size Edge IoT Gateway with Intel Atom E3825 CPU (with 2nd stack)

PB Tech price
PB Tech price
$ 993 .96
 +GST
$ 1,143 .05
 inc GST
$993.96  +GST
$1,143.05

Advantech UNO-2271G-E022AE Pocket-Size Edge IoT Gateway with Intel Atom E3825 CPU (with 2nd stack)

  • Brand: Advantech
  • MPN: UNO-2271G-E022AE
  • Part #: IPCAVH221414
  • UPC:
PB Tech price
$ 993 .96 $ 1,143 .05
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 16 Oct When will I receive it?
$993.96  +GST
$1,143.05

Finance from $10.89 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

- Intel® Atom™ E3815/E3825 processor with 4GB DDR3L onboard memory
- 2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
- Compact Fanless Design and Rubber Stopper Design with internal reserved screws for 2nd layer assembly
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi communication by iDoor technology
- Supports 30+ iDoor combination with four main categories of smart factory applications
- 32GB eMMC storage onboard
- RED Compliance for LTE solution

Specifications

General

Certification

CE, FCC, UL, CCC, BSMI

Dimensions (W x D x H)

100 x 70 x 30 mm (3.9" x 2.8" x 1.2"), UNO-2271G-E21BE/E021AE
100 x 70 x 60 mm (3.9" x 2.8" x 2.6"), UNO-2271G-E22BE/E23BE/E022AE/E023AE

Form Factor

Pocket Size, same dimension as standard 2.5" SSD/HDD

Enclosure

Aluminum Housing

Mounting

Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)

Weight (Net)

0.5 kg (1.1lbs) for UNO-2271G-E21BE/E021AE
0.6 kg (1.2lbs) for UNO-2271G-E22BE/ E022AE and E23BE/ E023BE

Power Requirement

10 ~ 30VDC

Power Consumption

12W (Typical), 24W (Max)

OS Support

For mSATA storage: Windows7, Windows10 LTSB,
Advantech Linux
For eMMC storage: Advantech embedded customized
Windows7 64bits, Windows 10 LTSB, Advantech Linux

System Hardware

BIOS

AMI EFI64 Mbit

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Processor

Intel Atom E3815 Single Core 1.46GHz
Intel Atom E3825 Dual Core 1.33Ghz

System Chip

Intel Atom SoC integrated

Memory Onboard

4GB DDR3L 1066 MHz

Graphics Engine

Intel® HD Graphics

Ethernet

Realtek RTL8111E GbE, 802.10av

LED Indicators

LEDs for Power, HDD, LAN (Active, Status)

Storage Onboard

32GB eMMC (Option mSATA shared with mPCIe slot)

Expansion

1 x Full-size mPCIe slot

I/O Interfaces

Serial Ports

2 x RS 232/422/485 for UNO-2271G-E23BE/ E023AE

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u

USB Ports

1 x USB 3.0 for UNO-2271G-E21BE/E021AE
3 x USB 2.0 and 1 x USB 3.0 for UNO-2271G-E22BE/E022AE
1 x USB 3.0 for UNO-2271G-E23BE/E023AE

Displays

1 x HDMI, supports 1920 x 1080 @ 60Hz

Power Connector

1 x 2 Pins, Terminal Block

Environment

Operating Temperature

0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11 ms

Vibration Protection

Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)

Ingress Protection

IP30
