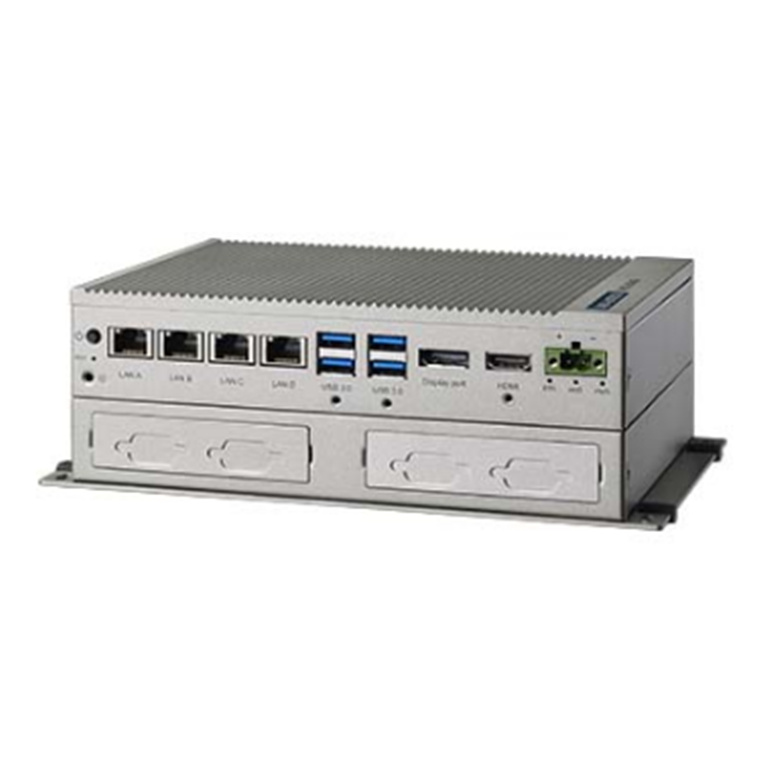

Advantech UNO-2484G-6732BE Modular Compact Embedded Box PC with 6th Gen Intel Core i7-6600U CPU (with 2nd stack)
Advantech UNO-2484G-6732BE Modular Compact Embedded Box PC with 6th Gen Intel Core i7-6600U CPU (with 2nd stack)
- Brand: Advantech
- MPN: UNO-2484G-6732BE
- Part #: IPCAVH221446
- UPC:
- Brand: Advantech
- MPN: UNO-2484G-6732BE
- Part #: IPCAVH221446
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech UNO-2484G-6732BE Modular Compact Embedded Box PC with 6th Gen Intel Core i7-6600U CPU (with 2nd stack)
- Brand: Advantech
- MPN: UNO-2484G-6732BE
- Part #: IPCAVH221446

Product URL: https://www.pbtech.co.nz/product/IPCAVH221446/Advantech-UNO-2484G-6732BE-Modular-Compact-Embedde
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Intel® Core™ i7/i5/i3/Celeron Processor with 8GB DDR4 built-in Memory
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact Fanless Design
- Ruggedized by zero cable and lockable I/O design
- Supports 30+ iDOOR combination with four main categories
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance
For more information: https://advdownload.advantech.com/productfile/PIS/UNO-2484G/file/UNO-2484G_DS(060523)20230605143131.pdf
Specifications
MPN
UNO-2484G-6732BE
Environment
Ingress Protection
IP40
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
3 Grms, random
Hardware
Certification
CE, FCC, UL, CCC, BSMI
Memory
1 x SO-DIMM Memory with 8 GB DDR4 2133 MHz
OS Support
Microsoft® Windows 10 LTSC, Linux
Power Input
10~36 VDC
Storage
2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe)
CPU
6th Gen. Intel® Core™ i7-6600U 2.6 GHz Dual-Core
I/O Interface
Audio
Line-Out
Displays
1 x HDMI, 1 x DP
LAN Ports
4 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
4 x RS-232/422/485
USB Ports
4 x USB 3.0
Mechanical
Dimension (W x H x D)
200 x 140 x 70 mm
Enclosure
Aluminum housing
Weight (Net)
1.8 kg (3.96 lb)
