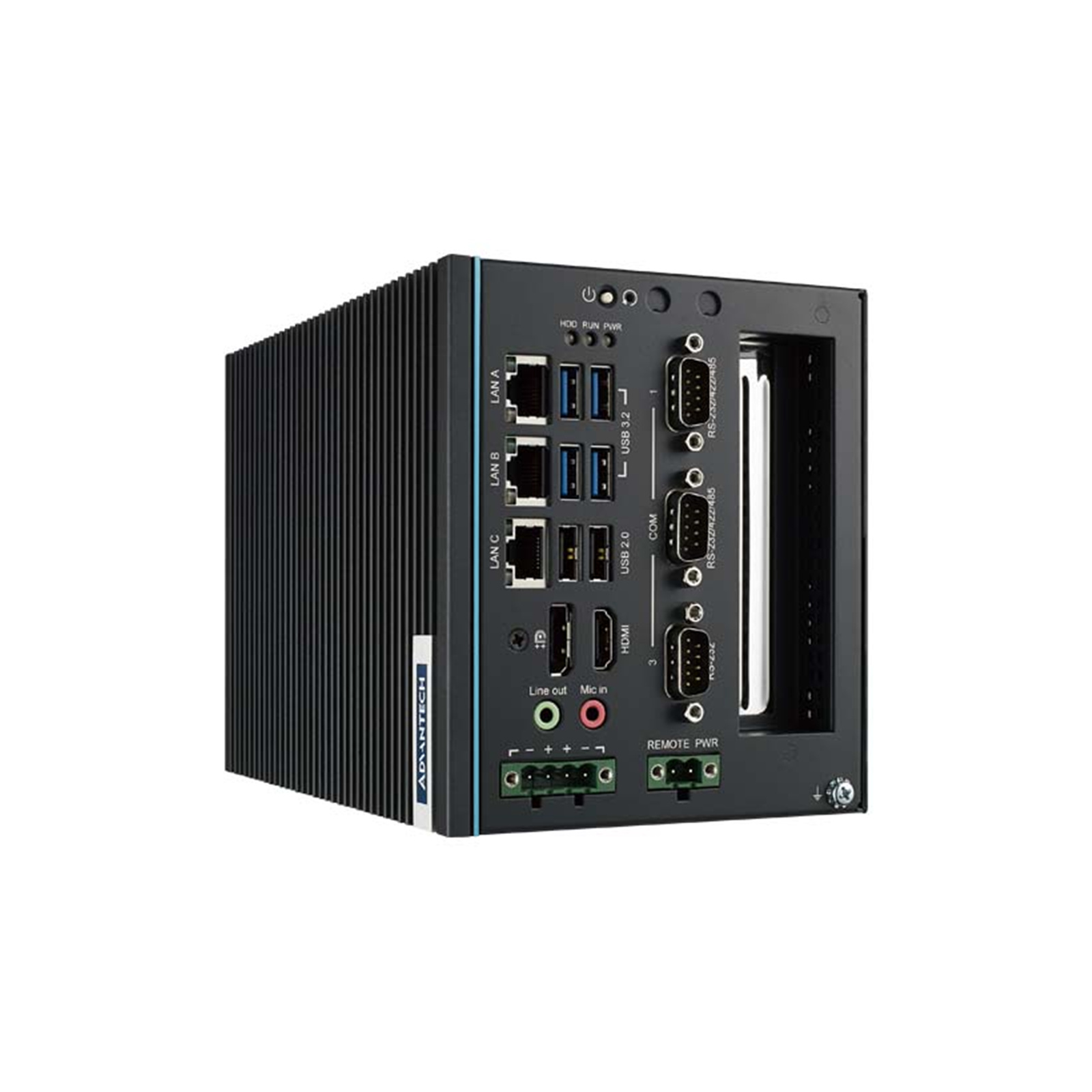

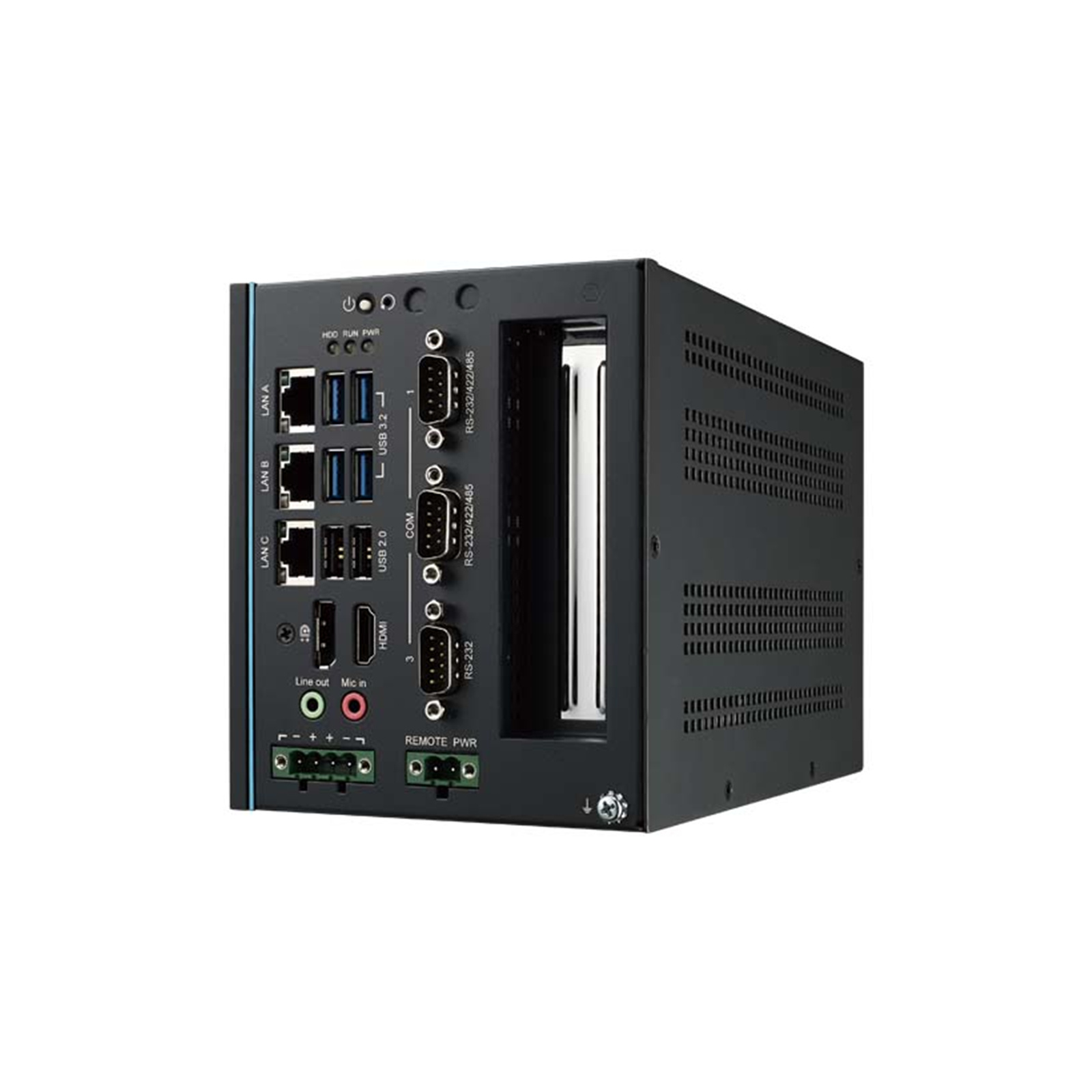

Advantech UNO-348-A531A Expandable Embedded Box IPC with 10th Gen Intel Core i5-10500TE CPU, 1 PCIe
Advantech UNO-348-A531A Expandable Embedded Box IPC with 10th Gen Intel Core i5-10500TE CPU, 1 PCIe
- Brand: Advantech
- MPN: UNO-348-A531A
- Part #: IPCAVH221465
- UPC:
- Brand: Advantech
- MPN: UNO-348-A531A
- Part #: IPCAVH221465
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial Automation & I/O





Advantech UNO-348-A531A Expandable Embedded Box IPC with 10th Gen Intel Core i5-10500TE CPU, 1 PCIe
- Brand: Advantech
- MPN: UNO-348-A531A
- Part #: IPCAVH221465

Product URL: https://www.pbtech.co.nz/product/IPCAVH221465/Advantech-UNO-348-A531A-Expandable-Embedded-Box-IP
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
Expandable Embedded Box IPC with 10th Gen Intel® CPU
UNO-348 is a high-performance, fanless, embedded edge controller equipped with a 10th gen. Intel® Core™ i5 processor with 8/16 GB DDR4 memory and Intel® Intel H420E and W480E PCH chipset. Despite its compact size, UNO-348 offers multiple I/O including 4 x USB 3.2, 2 x USB 2.0, 3 x GigaLAN, 2 x RS-232/422/485, and 1 x RS-232 ports, as well as 1 x Line-out, 1 x Mic-in, 1 x DisplayPort, and 1 x HDMI interfaces. Designed to deliver high-performance computing and maximum flexibility for industrial automation applications, UNO-348 also features 2 x internal HDD/SSD bays, 1 x full-size mPCIe, 1 x M.2 B-key, and up to 3 x PCIe/PCI expansion slots (1 x PCIe x16, 2 x PCI) to support the integration of optional peripherals. UNO-348 is also equipped with Advantech's iBMC technology to support remote OOB power management to reduce system downtime and operational costs.
- Intel® 10th Gen socket type processor with DDR4 memory
- Scalable CPU, RAM selection
- Compact, rugged and fanless design for harsh embedded environment
- Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
- Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech's iBMC technology
- Built-in TPM2.0 for hardware-based security
Specifications
Environment
Ingress Protection
IP20
Operating Temperature
-20~50 °C (-4~122 °F)
Relative Humidity
95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
4 Grms, random
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
Graphics Engine
Intel® HD Graphics
Hardware Security
TPM 2.0
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
10~36 VDC
Storage
2 x 2.5" SSD/HDD Bay
I/O Interface
Audio
Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
Displays
1 x DP, 1 x HDMI
Expansion
1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16
LAN Ports
3 x 10/100/1000 Mbps
Power Connector
1 x 4-Pin Terminal Block
Serial Ports
1 x RS-232, 2 x RS-232/422/485
USB Ports
4 x USB 3.2, 2 x USB 2.0
Mechanical
Dimension (W x H x D)
200 x 140 x 120 mm
Enclosure
Aluminum housing
Weight (Net)
3.5 kg (7.72 Ib)
